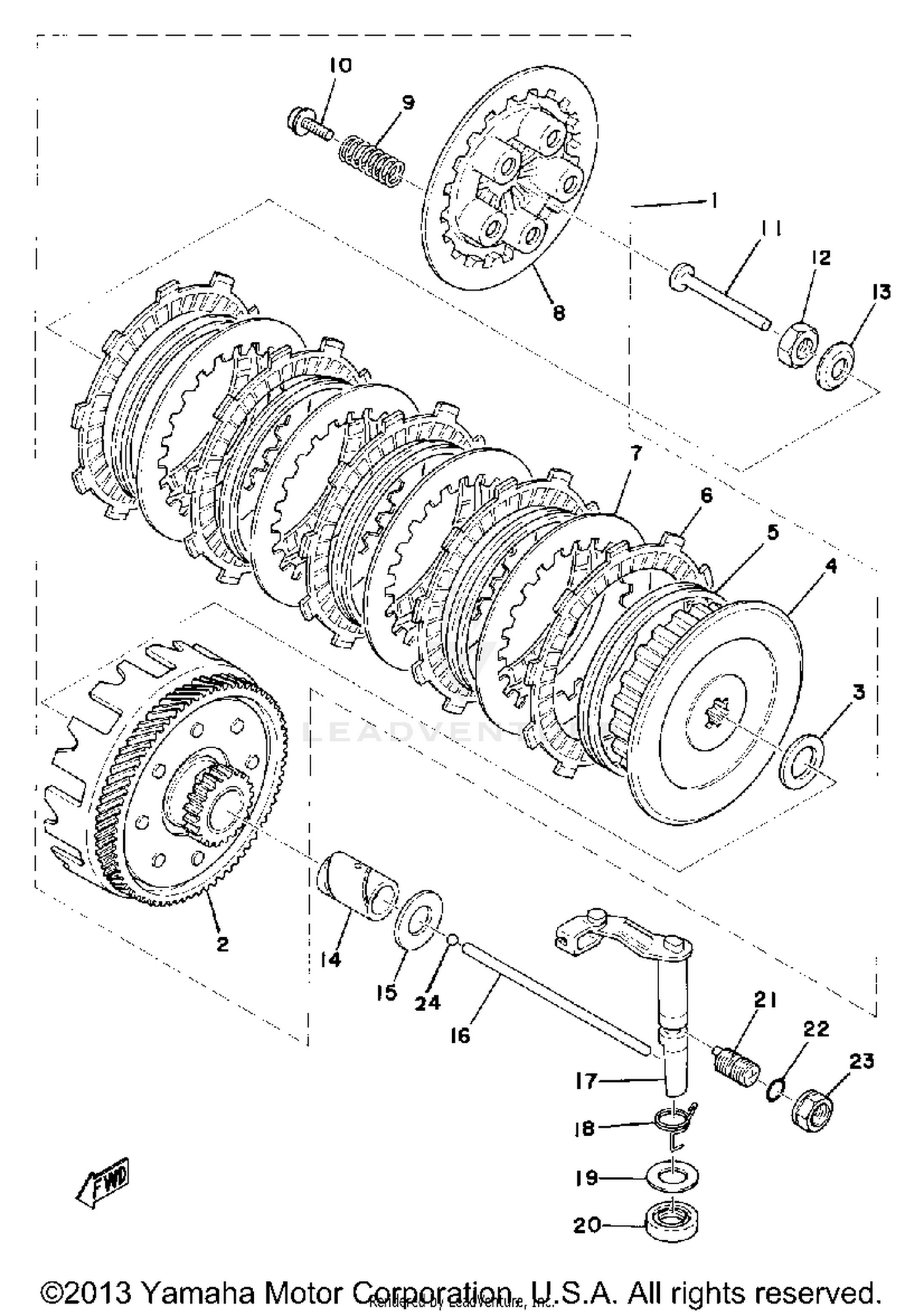

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
558-16301-01-00
|
$88.57 | ||
|
Unavailable |
|||
|
#2
PRI DRIVEN GEAR (74T)
525-16150-00-00
|
$240.99 | ||
|
Unavailable |
|||
|
#3
PLATE, THRUST 2
122-16164-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOSS, CLUTCH
525-16371-02-00
|
$105.99 | ||
|
Unavailable |
|||
|
#5
RING, CUSHION
307-16367-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#6
PLATE, FRICTION
559-16321-01-00
Superseded by 36X-16321-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
137-16325-70-00
Superseded by 137-16325-80-00
|
$15.99 | ||
|
Unavailable |
|||
|
#8
PLATE, PRESSURE 1
525-16351-00-00
|
$21.78 | ||
|
Unavailable |
|||
|
#9
SPRING, COMPRESSION
90501-20125-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-05011-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH 1
137-16356-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-12060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER
90560-17147-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-17558-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#
ROD, PUSH 2
1W1-16357-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
PUSH ROD ASSEMBLY
99999-00910-00
|
$17.49 | ||
|
Unavailable |
|||
|
#17
PUSH LEVER ASSEMBLY
525-16380-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#18
SPRING, TORSION
90508-14132-00
|
$4.85 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-14217-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-12097-00
|
$8.99 | ||
|
Unavailable |
|||
|
#22
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90179-12197-00
|
$2.70 | ||
|
Unavailable |
|||
|
#24
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Unavailable |
|||
