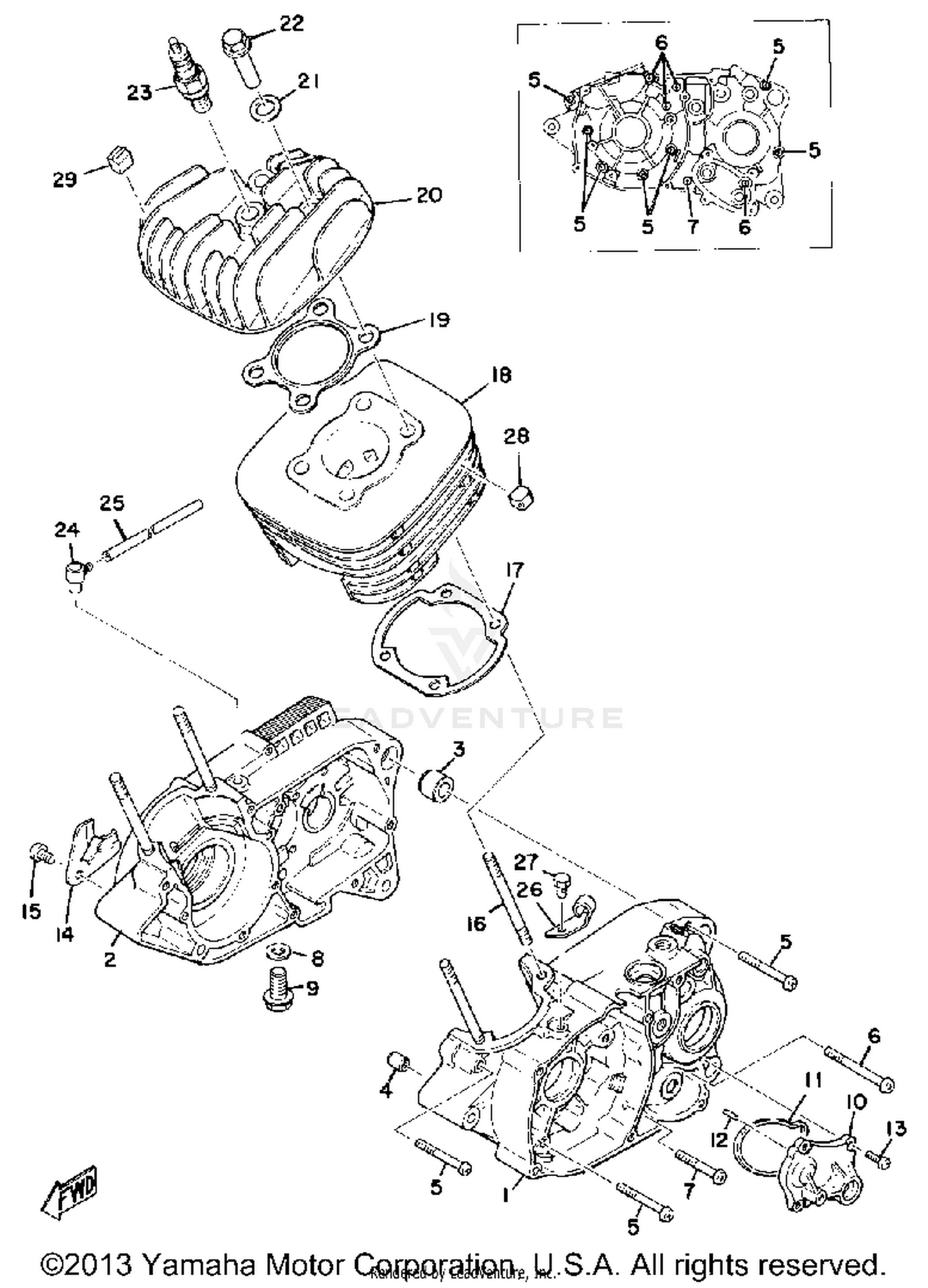

Crankcase Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
1T9-15111-00-00
|
$360.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
1T9-15121-01-00
|
$245.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06550-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD (90501-06040-00
98580-06040-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-12207-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SHIFTER 1
437-15419-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, RUBBER
401-15449-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
93603-12007-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER
304-15128-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD
90116-08065-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CYLINDER
3UL-11351-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CYLINDER 1
1T9-11311-00-00
|
$266.99 | ||
|
Unavailable |
|||
|
#19
GASKET, CYLINDER HEAD 1
276-11181-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HEAD, CYLINDER 1
1T9-11111-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-12362-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-08303-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BR8ES NGK SCREW TOP
NGK-B8ES0-00-00
Superseded by BR8-ES000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#24
BREATHER
583-15371-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE (L200)
90445-07176-00
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, CLUTCH CABLE
401-15441-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#27
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
ABSORBER 1
434-11161-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
ABSORBER 1
427-11161-00-00
|
$2.77 | ||
|
Unavailable |
|||
