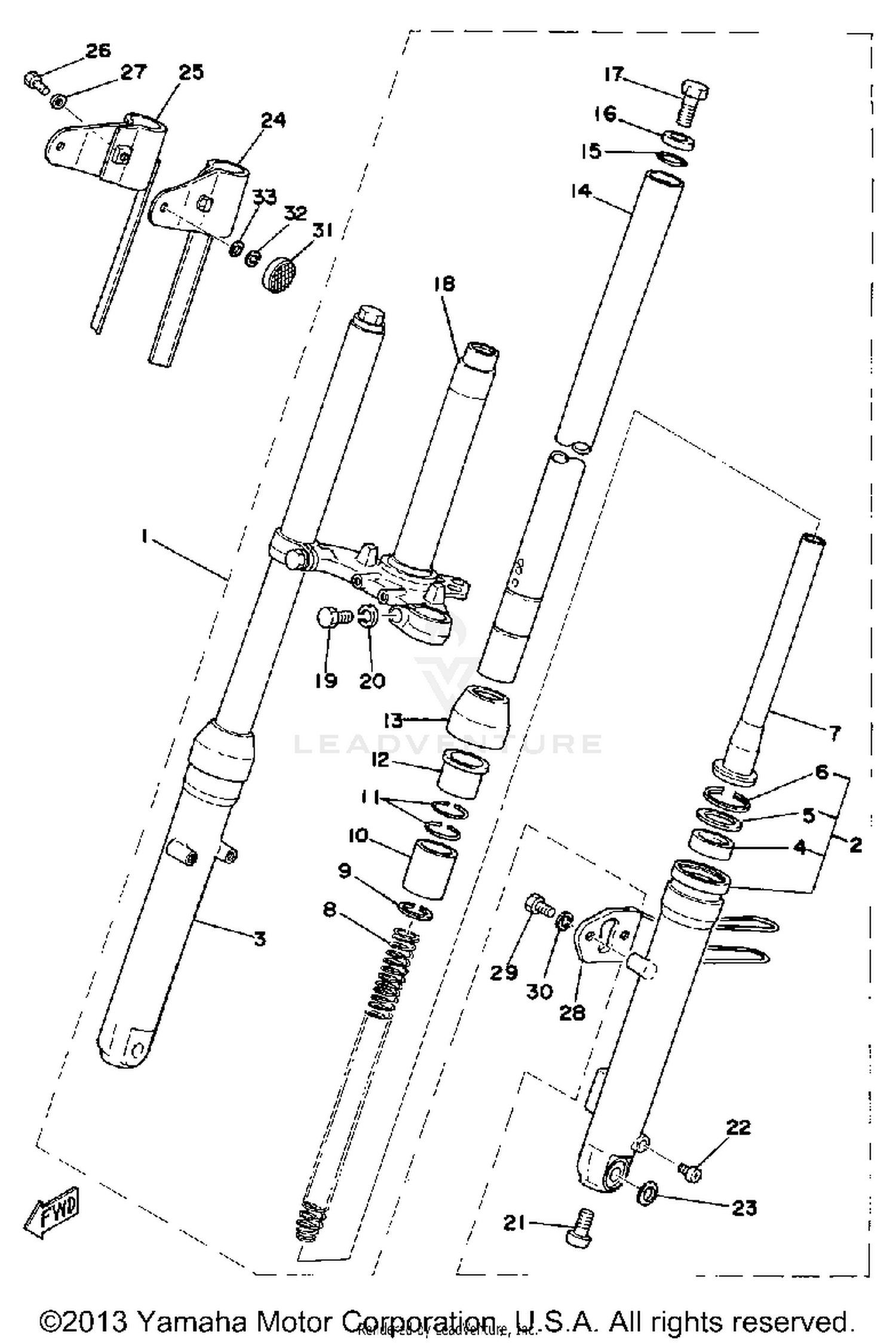

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
1T9-23101-00-00
|
$164.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
1T9-23126-00-35
|
$201.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
462-23136-02-35
|
$70.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL (5R6)
462-23145-02-00
Superseded by 93110-27010-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
462-23146-02-00
|
$4.95 | ||
|
Unavailable |
|||
|
#6
CLIP, OIL SEAL
462-23156-02-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
CYLINDER COMP., FRONT FORK
462-23170-02-00
|
$87.99 | ||
|
Unavailable |
|||
|
#8
SPRING, FRONT FORK
1T9-23141-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#9
CIRCLIP
462-23183-02-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
PISTON, FRONT FORK
462-23171-02-00
|
$25.99 | ||
|
Unavailable |
|||
|
#11
RING, PISTON
462-23157-02-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
METAL, SLIDE 1
462-23125-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#13
SEAL, DUST
462-23144-02-00
|
$17.99 | ||
|
Unavailable |
|||
|
#14
TUBE, INNER 1
1T9-23124-00-00
Superseded by 3UL-23124-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#15
GASKET
462-23114-02-00
|
$6.99 | ||
|
Unavailable |
|||
|
#16
WASHER, CAP
276-23112-50-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
BOLT, CAP
205-23111-40-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
UNDER BRACKET COMP.
1T9-23340-00-90
|
$297.99 | ||
|
Unavailable |
|||
|
#19
BOLT (8J7) (97303-10030-00)
97013-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98580-06025-00
Superseded by 97885-06025-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, DRAIN
451-23119-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#23
WASHER, SPECIAL
462-23392-02-00
|
$5.99 | ||
|
Unavailable |
|||
|
#24
STAY, HEADLIGHT 1
1T9-84118-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#25
STAY, HEADLIGHT 2
1T9-84119-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#26
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, CABLE 1
1T9-23318-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#29
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
REFLECTOR, FRONT 1
355-85111-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
