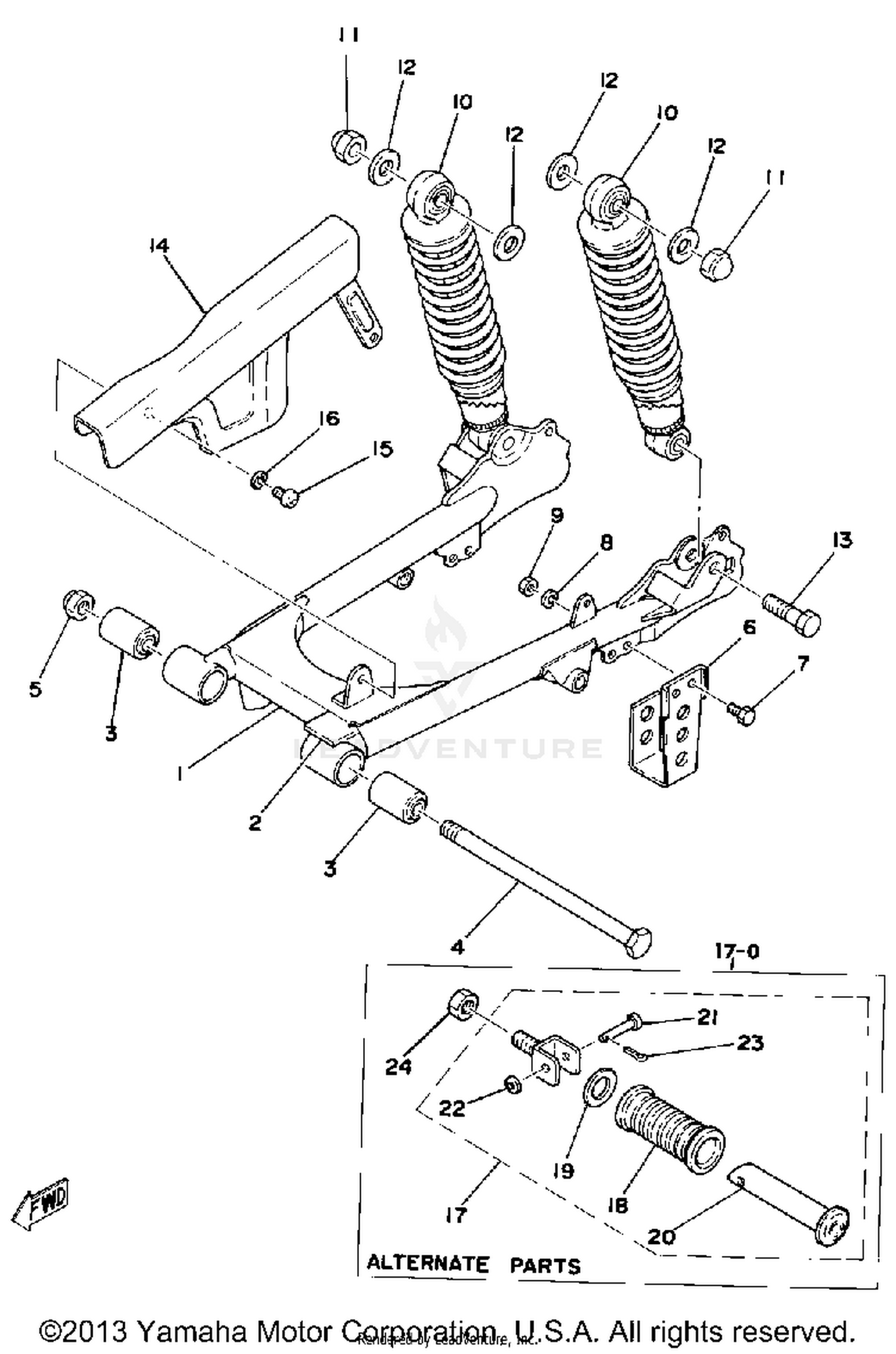

Rear Arm Rear Cushion Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1T9-22110-01-33
|
$149.99 | ||
|
Unavailable |
|||
|
#2
SEAL, GUARD
183-22151-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH 1
276-22123-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE, WHEEL
401-22141-00-00
Superseded by 2J5-25381-01-00
|
$41.99 | ||
|
Unavailable |
|||
|
#5
NUT, FLANGE
90185-12067-00
Superseded by 95717-12300-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUARD, CHAIN
492-22153-00-33
|
$19.99 | ||
|
Unavailable |
|||
|
#7
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHK/ABS ASY,REAR
1T9-22210-00-33
Superseded by 3UL-22210-00-33
|
$207.99 | ||
|
Unavailable |
|||
|
#11
NUT(CROWN)
95303-12800-00
Superseded by 95380-12800-00
|
$13.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-12190-00
Superseded by 90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-10633-00
Superseded by 90101-10776-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE, CHAIN
1T9-22311-00-33
|
$48.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
RR FOOTREST ASSEMBLY 1
120-27430-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, REAR FOOTREST
120-27433-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-20279-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FOOTREST, REAR 1
120-27431-00-00
Superseded by 2GV-27431-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
90240-06009-00
Superseded by 91701-06032-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BUDDY PEGS
120-W0096-00-00
|
$11.49 | ||
|
Unavailable |
|||
