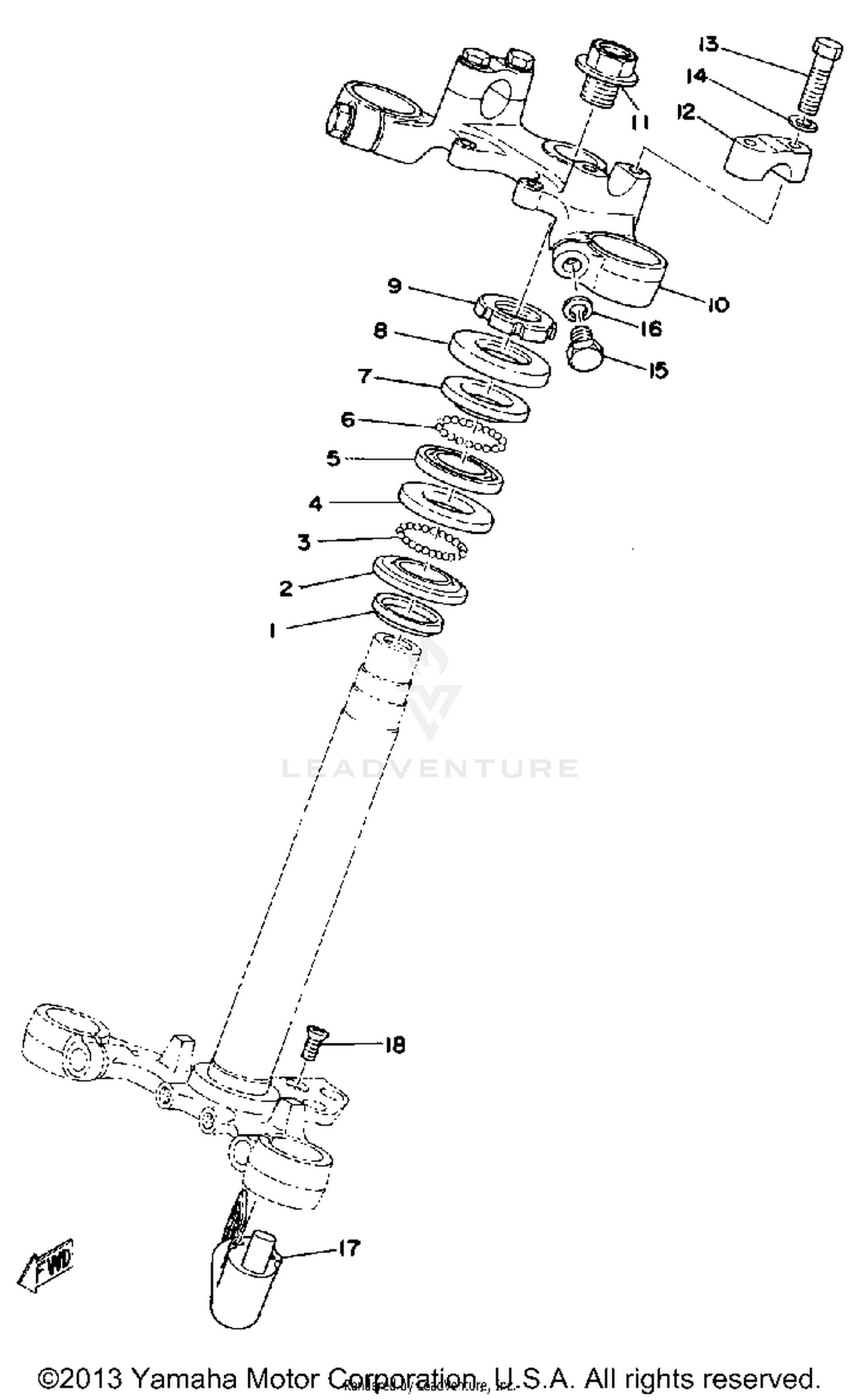

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, DUST
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
RACE, BALL 2
156-23412-00-00
Superseded by B6E-23412-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, BALL 2
22F-23412-01-00
Superseded by BP2-23412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
RACE, BALL 1
22F-23411-01-00
Superseded by BP2-23411-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, BALL RACE 2
122-23416-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CROWN, HANDLE
354-23435-00-33
|
$93.99 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
90105-14136-00
Superseded by 90105-14220-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, HANDLE UPPER
401-23441-00-98
|
$17.49 | ||
|
Unavailable |
|||
|
#13
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
STEERING LOCK ASSEMBLY (266-234
353-23480-01-00
Superseded by 2N3-23408-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT HEAD
98780-05012-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
