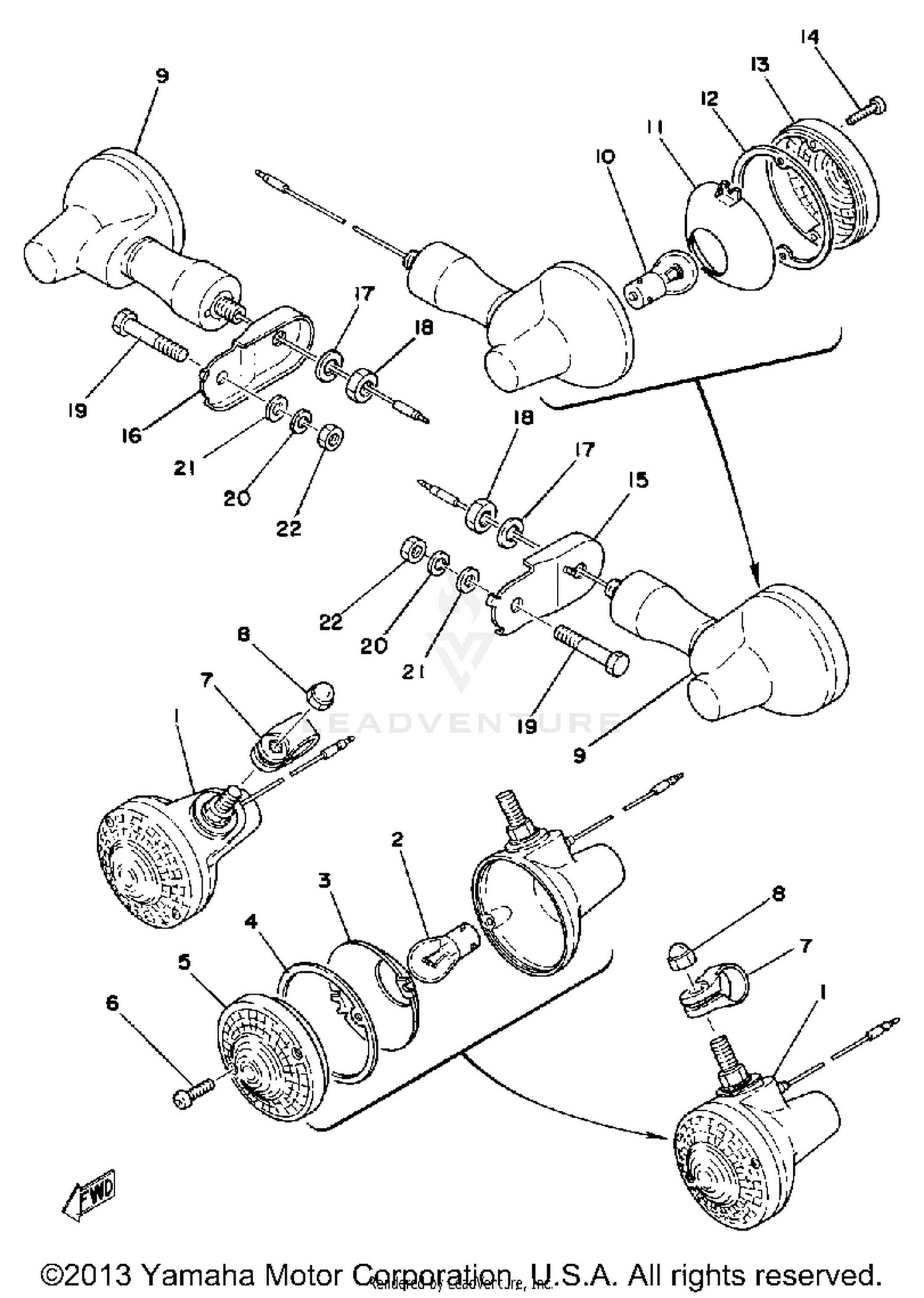

Flasher Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSEMBLY 1
1M1-83310-60-00
|
$91.99 | ||
|
Unavailable |
|||
|
#2
BULB 6V21CP(1129)
115-83311-60-00
Superseded by 115-83311-60-XX
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
REFLECTOR
1M1-83309-60-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
GASKET, FLASHER LENS
1M1-83313-60-00
|
$3.10 | ||
|
Unavailable |
|||
|
#5
LENS, FLASHER
341-83312-70-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PANHEAD TAP
97780-30120-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, FLASHER 1
1M1-83318-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT (CROWN) (93501-08800-00)
95303-08800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
R FLSHR LITE ASSEMBLY
1T9-83330-60-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB 6V21CP(1129)
115-83311-60-00
Superseded by 115-83311-60-XX
|
$2.80 | ||
|
Unavailable |
|||
|
#11
REFLECTOR
1M1-83309-60-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
GASKET, FLASHER LENS
1M1-83313-60-00
|
$3.10 | ||
|
Unavailable |
|||
|
#13
LENS, FLASHER
341-83312-70-00
|
$17.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PANHEAD TAP
97780-30120-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
STAY, FLASHER
1T9-83368-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
STAY, FLASHER
1T9-83369-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95303-10600-00
Superseded by 95314-10600-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97313-08045-00
Superseded by 97013-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
