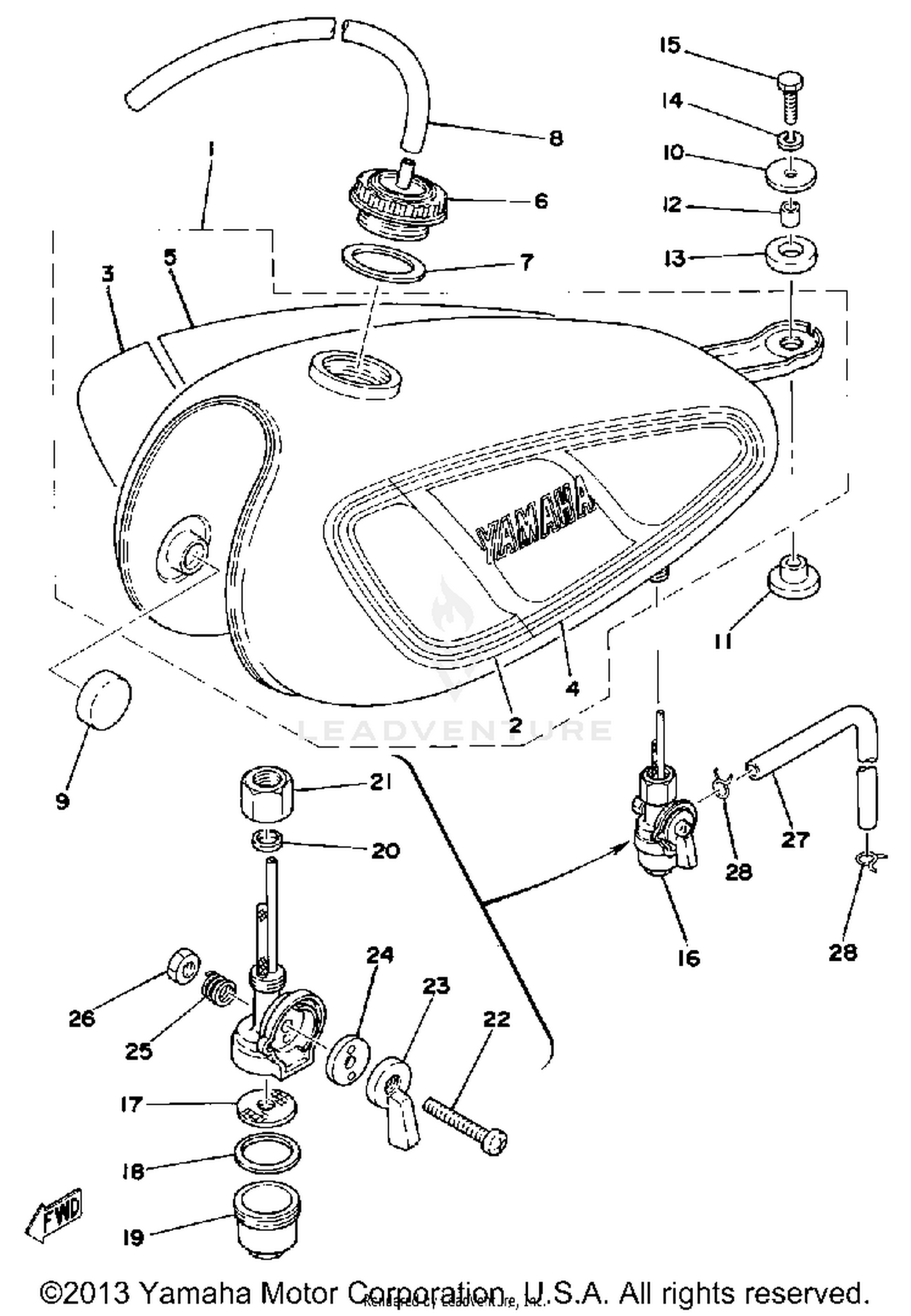

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
538-24110-00-X3
|
$267.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
1T9-24244-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
1T9-24245-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 3
1T9-24246-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 4
1T9-24247-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#6
BODY, CAP
322-24611-02-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-35122-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE (L460)
90445-09282-00
Superseded by 90445-083J5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 1
122-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-14088-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90202-14077-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUEL COCK ASSEMBLY 1
367-24500-04-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NET, FILTER 2
355-24515-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#18
GASKET
102-24522-01-00
Superseded by 102-24522-02-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
CUP, FILTER
122-24521-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#20
GASKET
122-24532-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
603-24531-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98501-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER, COCK
355-24524-01-00
|
$5.24 | ||
|
Unavailable |
|||
|
#24
VALVE
355-24523-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, WAVE
355-24518-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#26
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE 5
90445-09066-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
