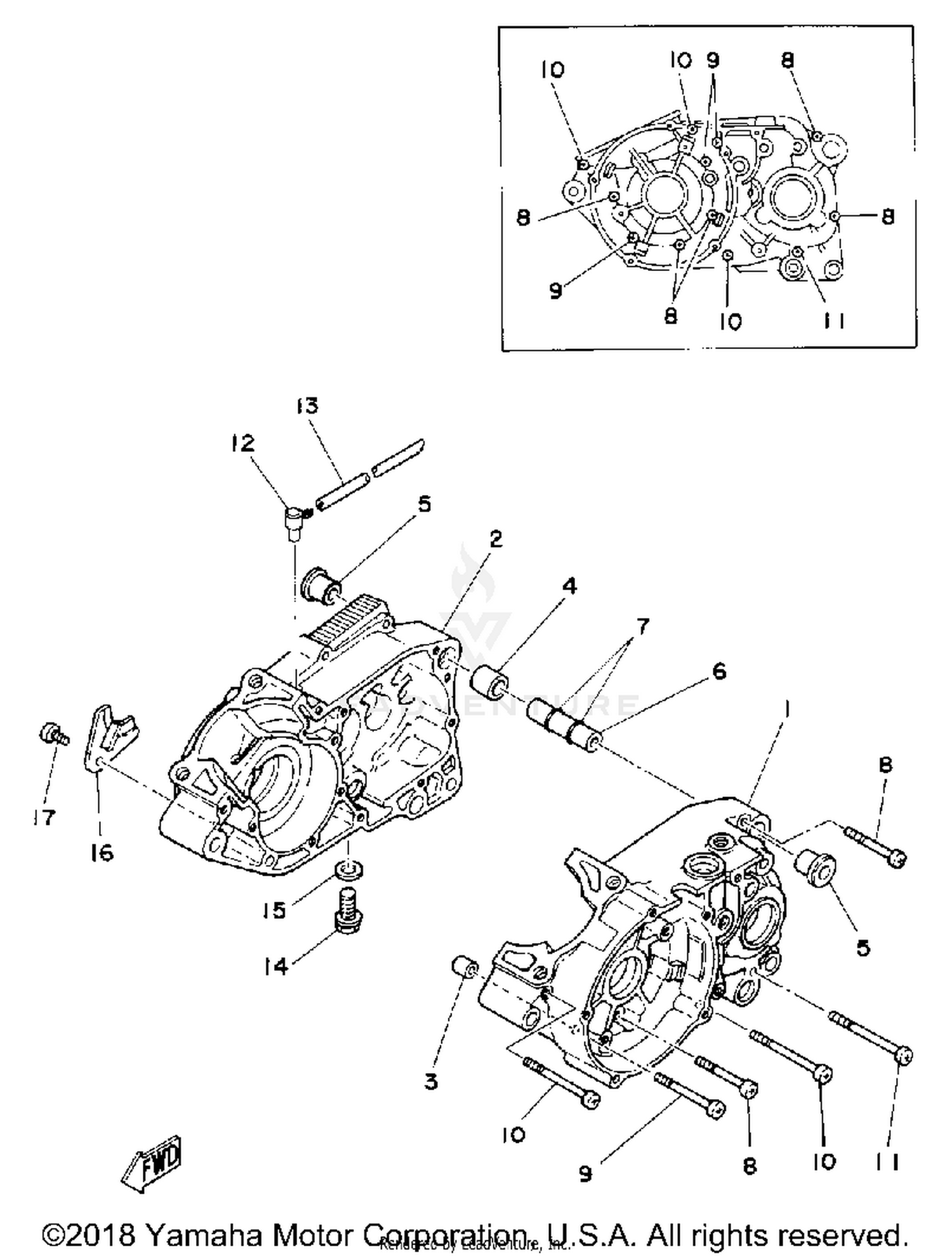

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
2A6-15111-02-00
|
$135.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
2A6-15121-01-00
|
$188.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-20020-00
Superseded by 99530-20020-00
|
$2.55 | ||
|
Unavailable |
|||
|
#5
Damper
328-15316-00-00
Superseded by 90388-08003-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, ENGINE MOUNT
401-15317-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-11073-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-06550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98501-06070-00
Superseded by 98580-06570-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98501-06075-00
Superseded by 98580-06575-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BREATHER
2N4-15371-00-00
Superseded by 5UG-15371-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE (L310)
90445-07340-00
Superseded by 90445-072G8-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER
304-15128-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
