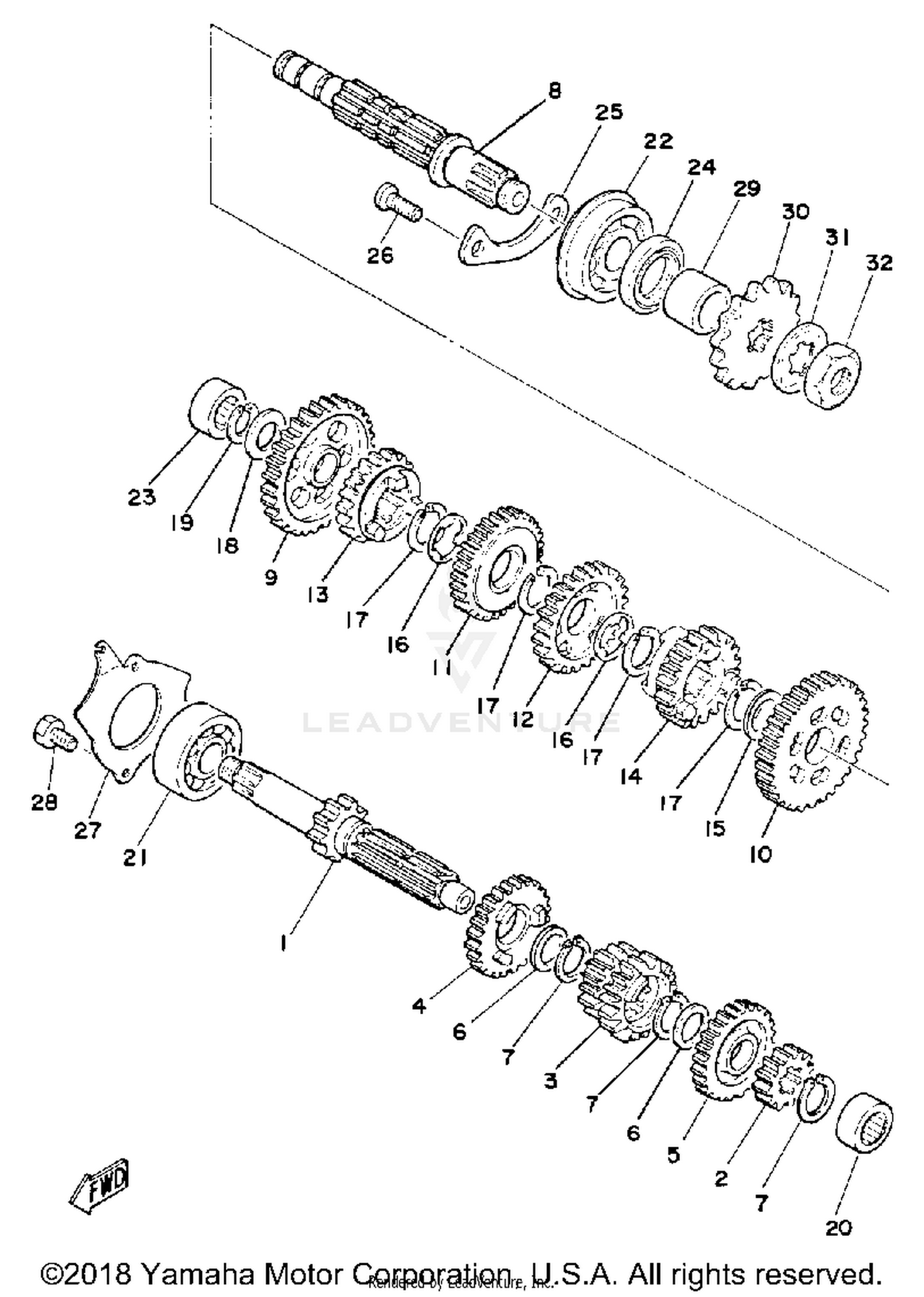

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
2A6-17411-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND PINION
2A6-17121-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#3
GEAR, 3RD PINION
2A6-17131-00-00
|
$140.99 | ||
|
Unavailable |
|||
|
#4
GEAR, 5TH PINION
1W2-17151-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#5
GEAR, 6TH PINION
1W2-17161-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, S-TYPE
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
AXLE, DRIVE
2A6-17421-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 1ST WHEEL (2A6-17211-00)
2A6-17211-01-00
|
$80.99 | ||
|
Unavailable |
|||
|
#10
GEAR, 2ND WHEEL (2A6-17221-00)
2A6-17221-01-00
|
$73.99 | ||
|
Unavailable |
|||
|
#11
GEAR, 3RD WHEEL
2A6-17231-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#12
GEAR, 4TH WHEEL
1W2-17241-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#13
GEAR, 5TH WHEEL
2A6-17251-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#14
GEAR, 6TH WHEEL
2A6-17261-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-18135-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE (T=1.0)
90201-15701-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP, OUTER
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93311-41530-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING (B6304)
93306-30411-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, CYLINDRICAL
93311-31567-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-26042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, BRNG COVER
1W1-15381-00-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, FLAT HEAD
92703-06012-00
Superseded by 98780-06014-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, COVER
1W1-17471-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT (661)
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-202A0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPROCKET,DRIVE 16T(1
93822-16093-00
Superseded by 93822-16095-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, LOCK
90215-16127-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
90179-16226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
