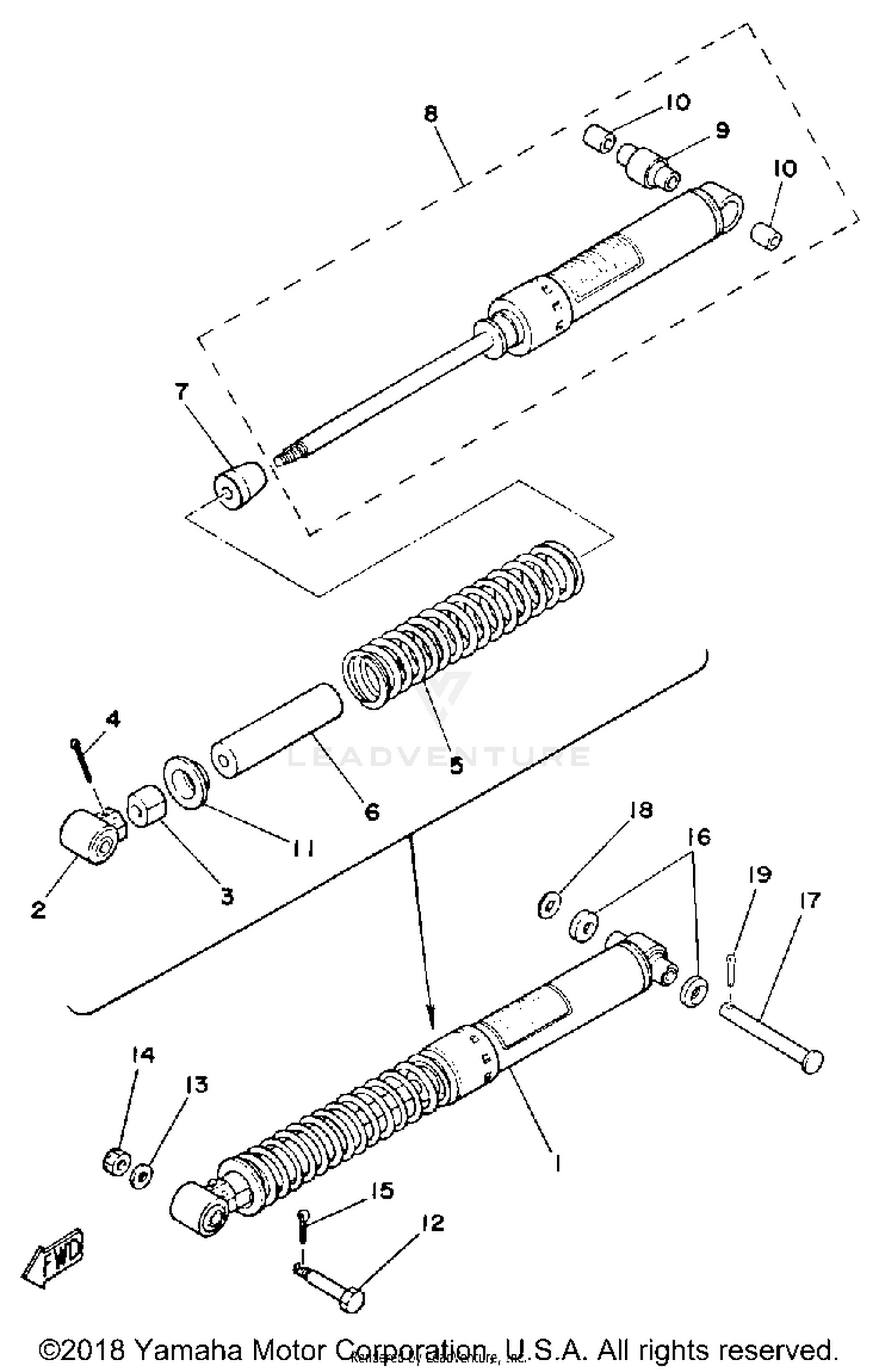

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
2N4-22210-01-00
|
$365.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, UPPER
1M1-22219-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#3
SEAT, SPRING UPPER
2N4-22213-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#4
PIN, COTTER
91401-30040-00
Superseded by 91490-30045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-90514-00
|
$26.99 | ||
|
Unavailable |
|||
|
#6
SLEEVE, ROD
2N4-22496-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#7
STOPPER, BUMP
2A6-22493-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#8
DAMPER SUB-ASSEMBLY.
2N4-22401-01-00
|
$189.99 | ||
|
Unavailable |
|||
|
#9
BUSH, SHOCK ABS LWR
1W1-22226-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#10
BUSH, SOLID
90380-12051-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, SPRING 1
2N4-22214-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#12
BOLT
90109-10550-00
Superseded by 90109-10453-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (91490-20020-00)
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, THRUST 1
1W1-22128-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, CLEVIS
90240-12059-00
|
$9.99 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
92990-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
