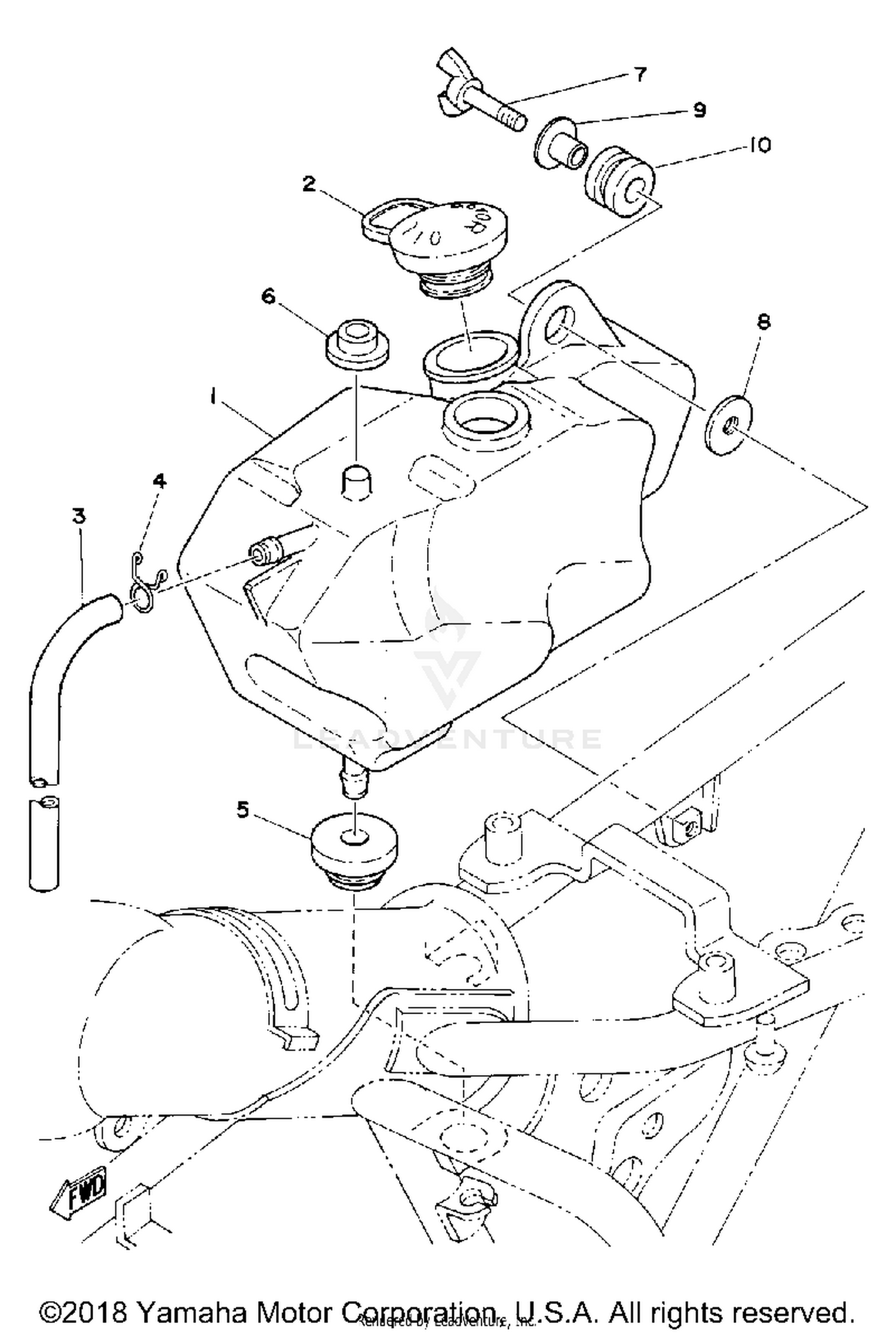

Oil Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, OIL
3J0-21751-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#2
BODY, CAP
1T9-21771-00-00
Superseded by 1T9-21771-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#3
HOSE (L460)
90445-09282-00
Superseded by 90445-083J5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, SCISSOR
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-18171-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-13253-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WING (38W)
90122-06021-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
NUT, SPEC''L SHAPE
90179-06013-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
