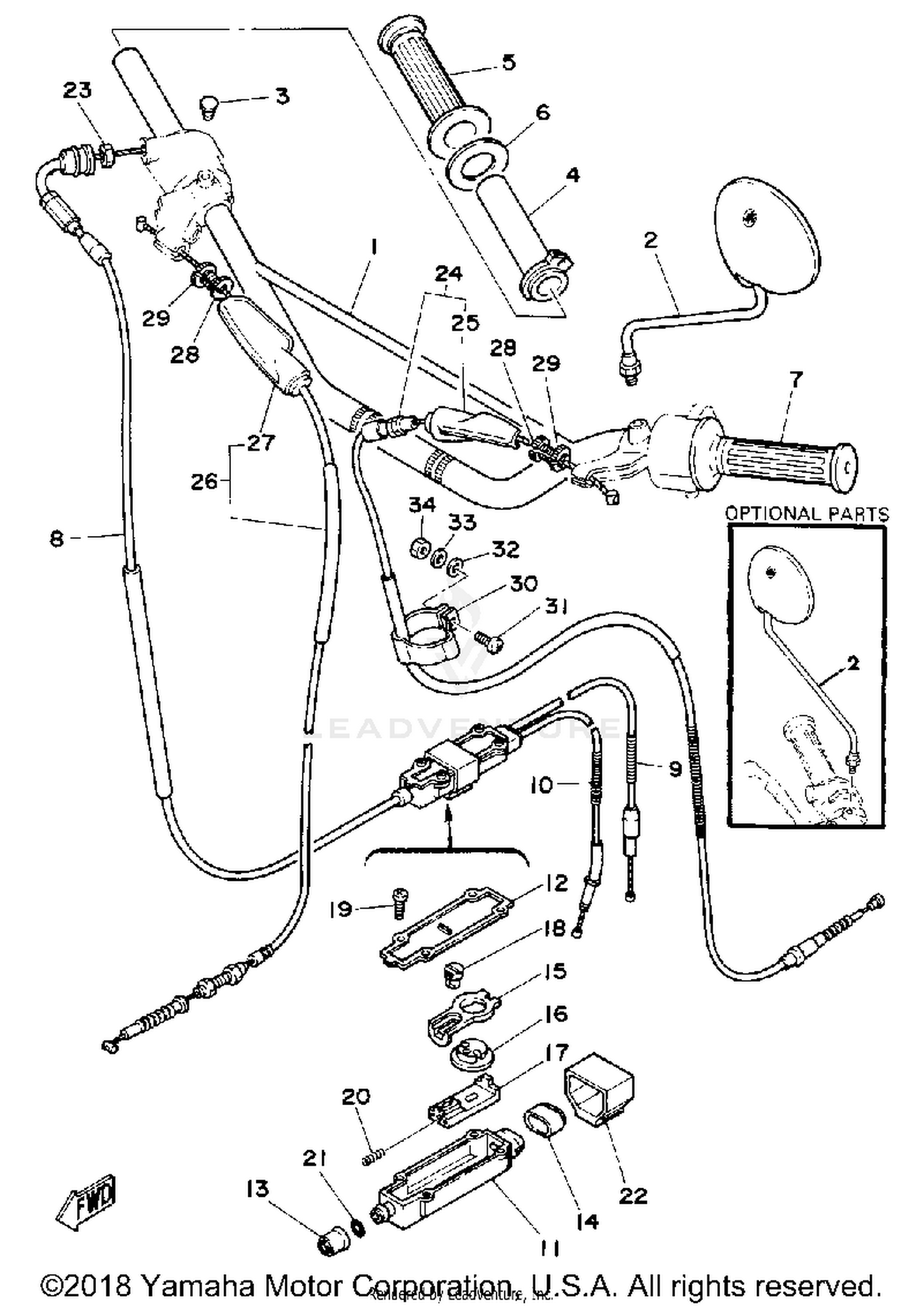

Handlebar - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
3G7-26111-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
MIRROR ASSEMBLY LH
1Y1-26290-10-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
MIRROR ASSEMBLY RH
1Y1-26290-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, THROTTLE GUIDE
434-26243-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP RH (R.H.)
1A0-26242-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, LEAF
1M1-26249-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP LH (L.H.)
1E6-26241-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, THROTTLE 1
3J0-26311-01-00
Superseded by 3J0-26311-02-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, THROTTLE 2
3J1-26312-00-00
Superseded by 3J1-26312-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, PUMP
3J1-26321-00-00
Superseded by 3J0-26321-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#11
CONNECTOR, CABLE
3J0-26261-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, CBLE CONNECTOR
3J0-26262-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, CBLE CONNECTOR
437-26262-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
CAP
3J0-26272-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, ROTOR
2T5-26274-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROTOR
2T5-26273-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SLIDER, THROTTLE
2T5-26244-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN
2T5-26267-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING
90167-03004-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-05512-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER
3J0-26393-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEXAGON
90170-10038-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE, CLUTCH
2A6-26335-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE, BRAKE (1165MM)
2N4-26341-01-00
|
$47.99 | ||
|
Unavailable |
|||
|
#27
COVER, HANDLE LEVER 1
498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#28
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
2A6-26397-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Unavailable |
|||
|
#34
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
