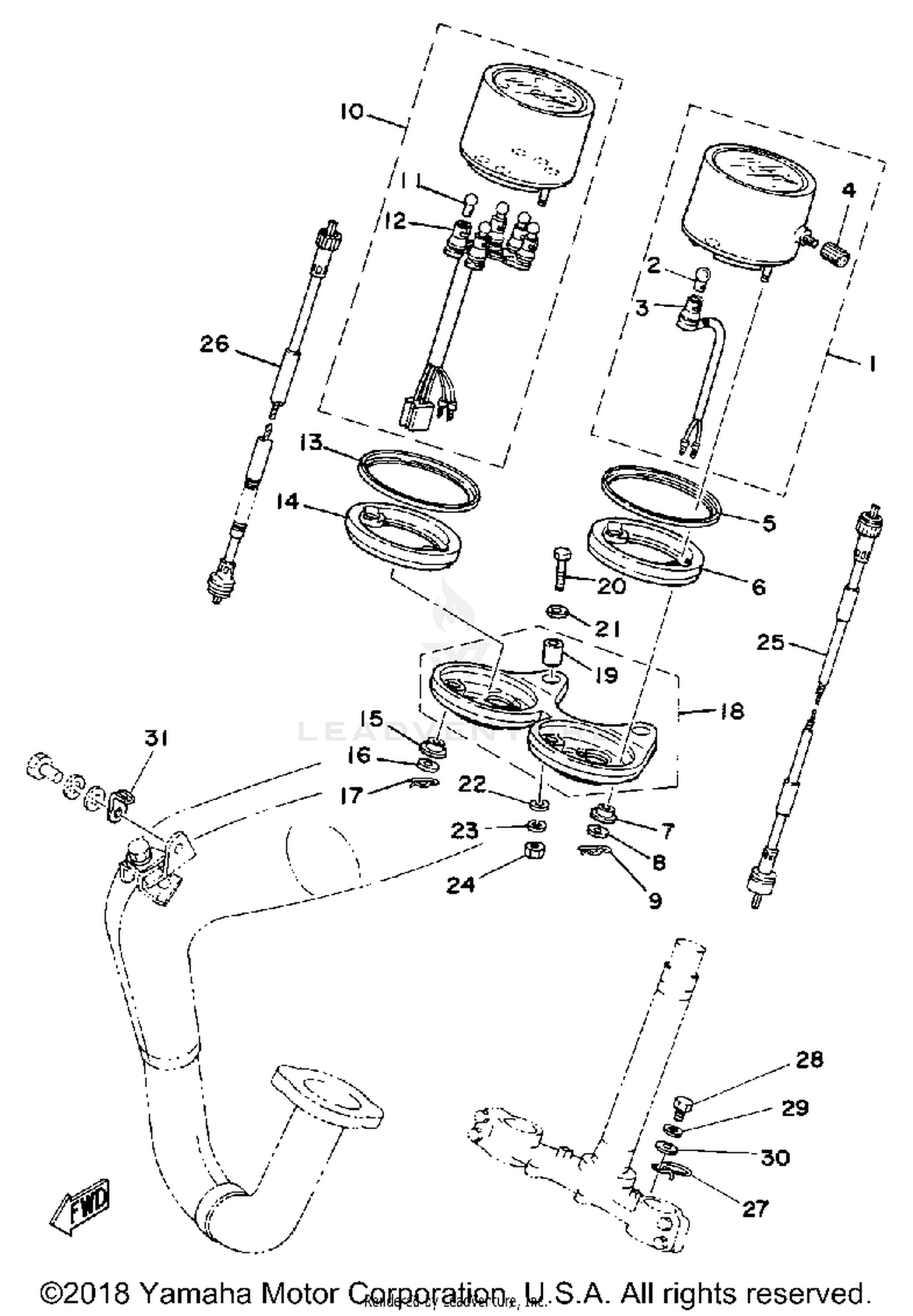

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
2N4-83570-A0-00
|
$243.99 | ||
|
Unavailable |
|||
|
#2
BULB
122-83516-10-00
Superseded by 122-83516-10-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET, METER
1V1-83536-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#4
KNOB, TRIP METER
1E6-83578-10-00
|
$4.45 | ||
|
Unavailable |
|||
|
#5
RING, METER COVER
2A6-83506-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#6
DAMPER
2A6-83513-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#7
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
90201-05033-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
TACHOMETER ASSEMBLY (2N4-83540-
2X1-83540-F0-00
|
$194.99 | ||
|
Unavailable |
|||
|
#11
BULB
122-83516-10-00
Superseded by 122-83516-10-XX
|
$2.40 | ||
|
Unavailable |
|||
|
#12
SOCKET CORD ASSEMBLY
2A6-83520-00-00
|
$21.78 | ||
|
Unavailable |
|||
|
#13
RING, METER COVER
2A6-83506-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#14
DAMPER
2A6-83513-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#15
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.30 | ||
|
Unavailable |
|||
|
#16
WASHER, SPECIAL
90201-05033-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
CLIP
90468-10050-00
|
$2.85 | ||
|
Unavailable |
|||
|
#18
BRACKET, METER
3J0-83519-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#19
BUSH, SPEC''L RUBBER (214-83528
90385-06001-00
|
$5.00 | ||
|
Unavailable |
|||
|
#20
BOLT
97026-06045-00
Superseded by 97017-06045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPEEDOMETER CABLE (3H6-83550-00
1M1-83550-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
TACHOMETER CABLE
2A6-83560-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
2A6-83595-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#28
BOLT (661)
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#31
CLAMP
2A6-83596-00-00
|
$5.86 | ||
|
Unavailable |
|||
