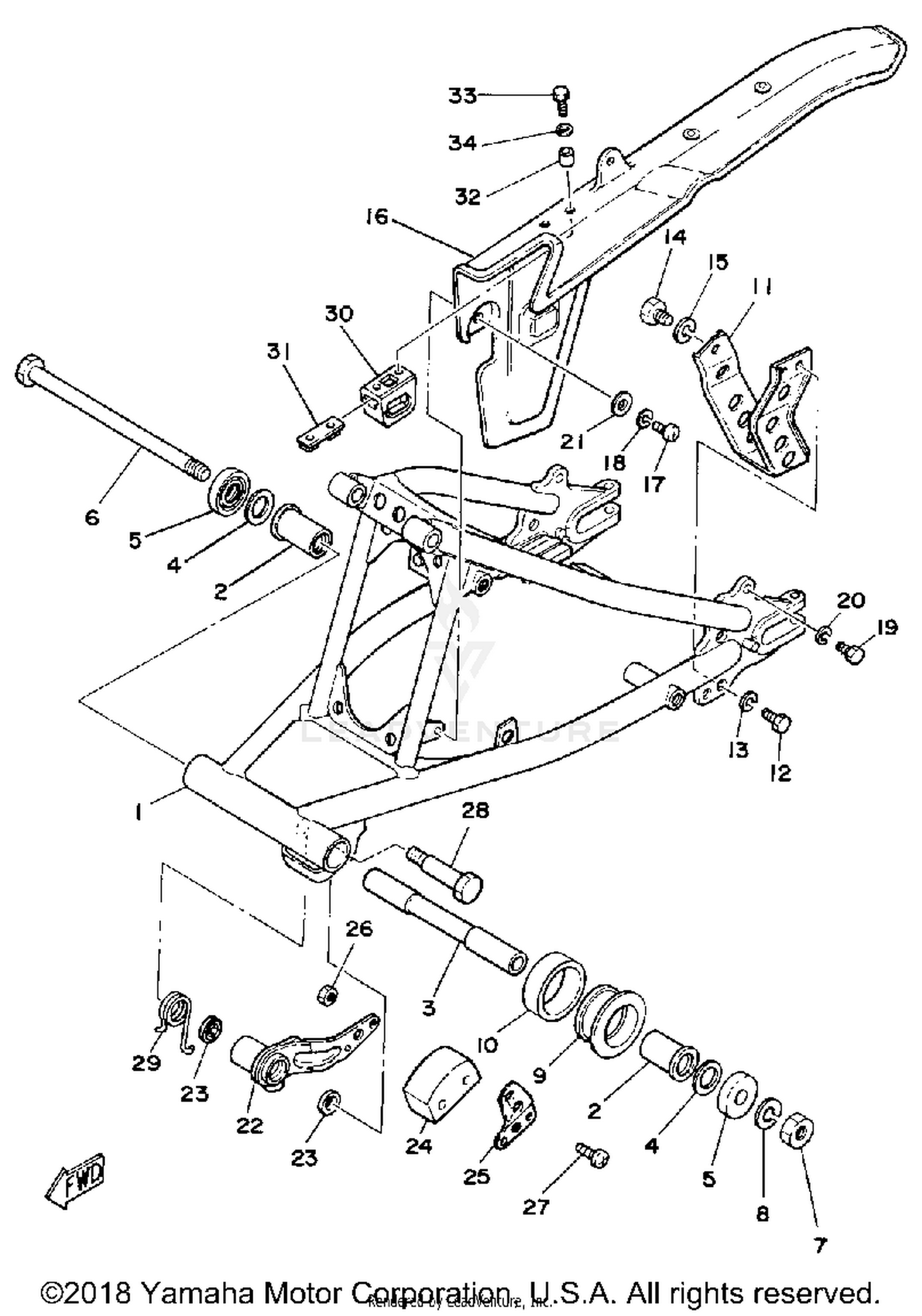

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
2A6-22110-01-33
|
$199.99 | ||
|
Unavailable |
|||
|
#2
BUSH
90386-18028-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH 2
18G-22124-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM
401-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
401-22128-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
2N4-22141-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
2A6-22151-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
2A6-22152-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, CHAIN
2A6-22318-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CASE, CHAIN
2A6-22311-01-00
|
$81.99 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97313-05012-00
Superseded by 97013-05012-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-05036-00
Superseded by 90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
ARM, TENSIONER
2A6-22179-00-00
Superseded by 2A6-22179-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93104-14044-00
Superseded by 93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
|
$9.45 | ||
|
Unavailable |
|||
|
#25
GUIDE, CHAIN
1W1-22187-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT (90109-10533-00)
90109-10483-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, TORSION
90508-35350-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PORTECTOR, CHAIN
3J0-22147-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
STAY, CHAIN CASE 1
3J0-22131-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-05682-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEXAGON
97313-05016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
