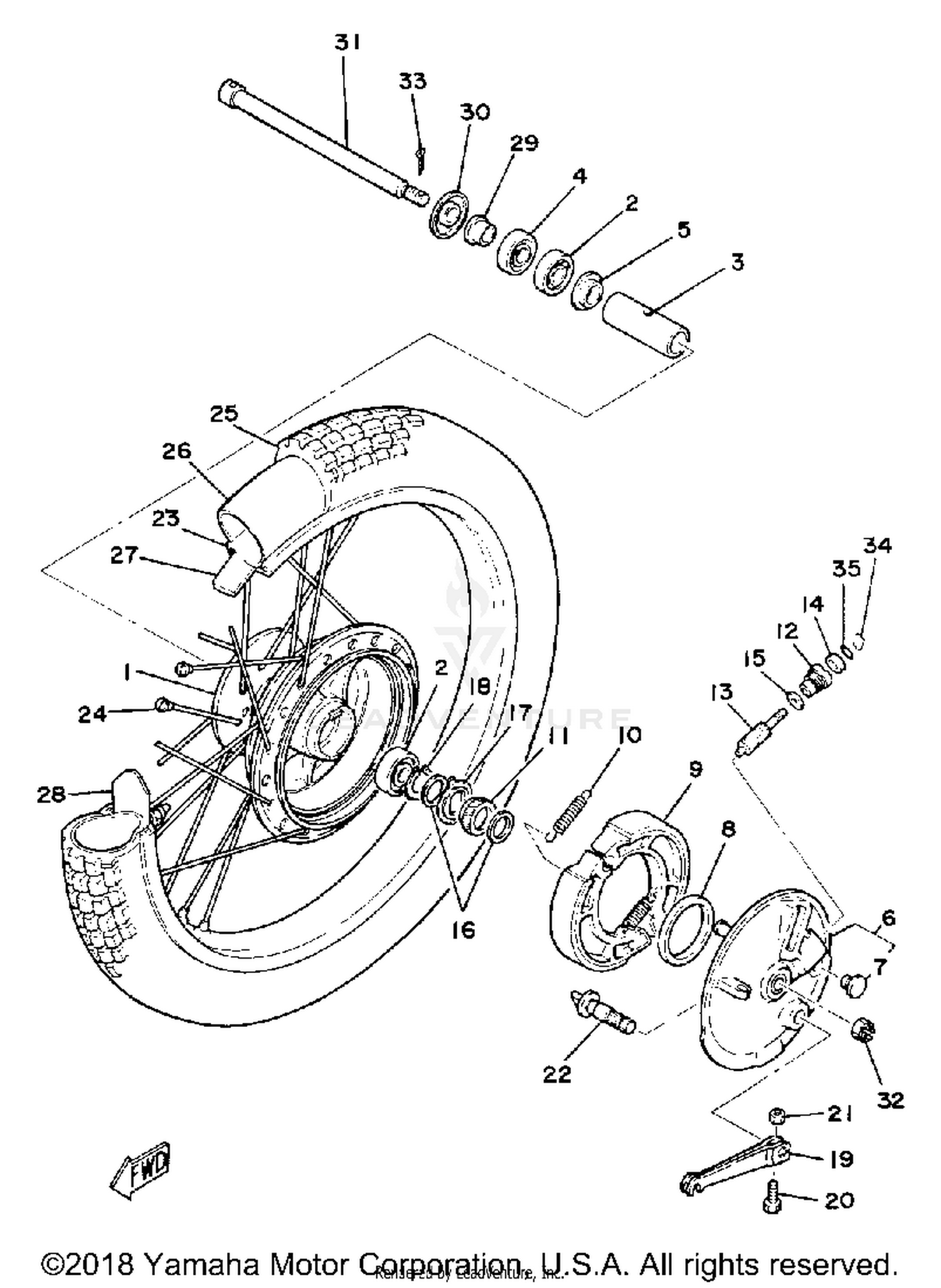

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
2A6-25111-00-98
|
$138.71 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL, SD-TYPE
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE SHOE PLT ASSEMBLY (2N4-25
2N4-25016-01-98
|
$87.99 | ||
|
Unavailable |
|||
|
#7
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#10
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, DRIVE
248-25135-11-00
|
$44.99 | ||
|
Unavailable |
|||
|
#12
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, METER
248-25138-11-00
|
$20.99 | ||
|
Unavailable |
|||
|
#14
OIL SEAL, SO-TYPE
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, CAMSHAFT 1
5H0-25155-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIM
94416-21206-00
Superseded by 94416-21006-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPOKE SET, FT
2A6-25104-00-00
Superseded by 2A6-25104-01-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
TIRE (MCS 2.75-21 4PR TW27)
94127-212X0-00
|
$111.99 | ||
|
Unavailable |
|||
|
#26
TUBE (MCS 2.75/3.00-21 TR6)
94227-21123-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAND, RIM (70-80/100-21)
94330-21084-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR (183-25183-00)
90387-12265-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
AXLE, WHEEL
353-25381-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
