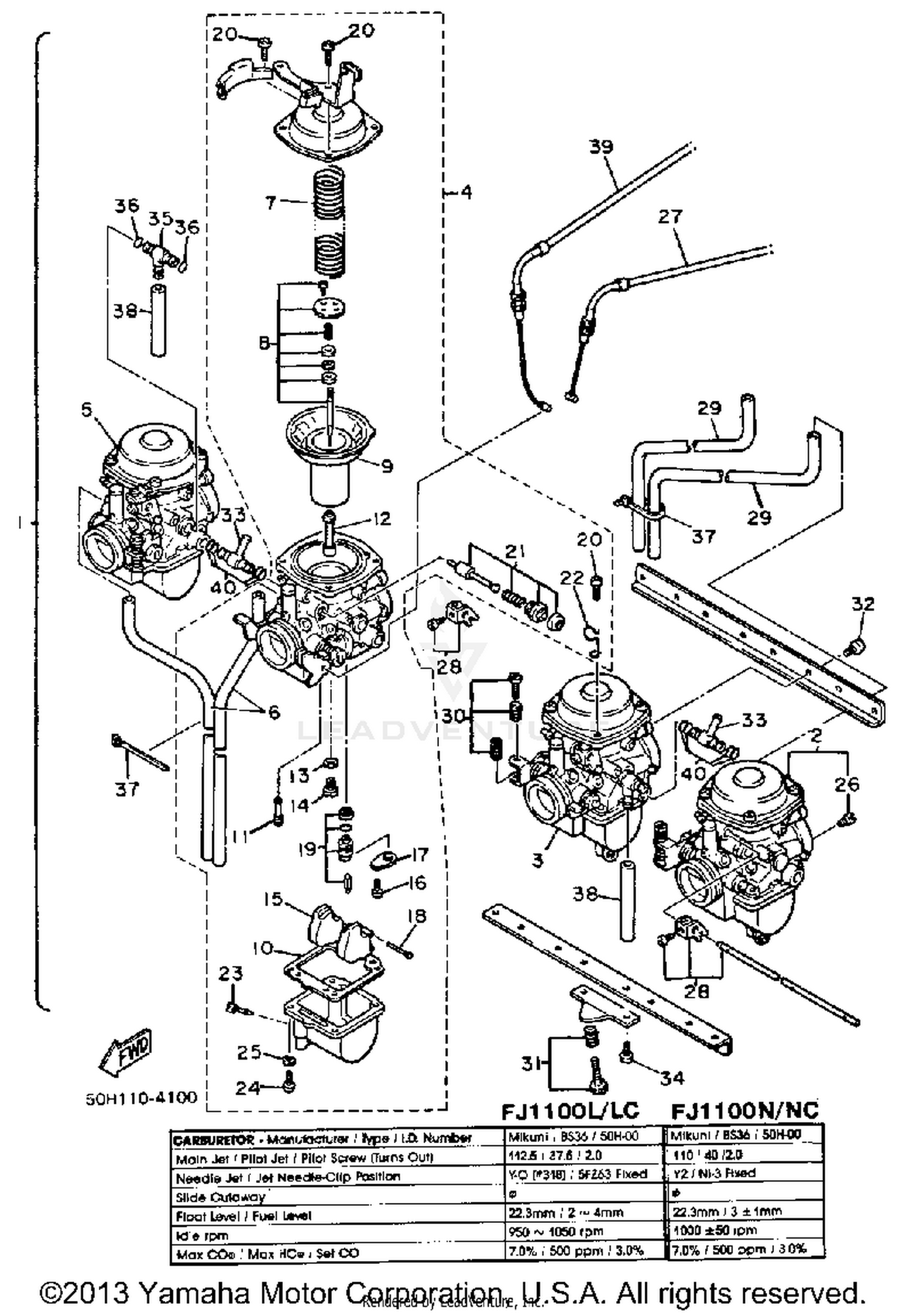

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
50H-14900-00-00
|
|||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
47M-14900-01-00
|
|||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
47M-14900-00-00
|
|||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
50H-14900-01-00
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 1
50H-14901-01-00
|
$144.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1
47M-14901-01-00
|
$165.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 2
47M-14902-01-00
|
$166.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2
50H-14902-01-00
|
$144.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 3
47M-14903-01-00
|
$160.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSEMBLY 3
50H-14903-01-00
|
$160.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 3
50H-14903-00-00
|
$147.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 4
47M-14904-01-00
|
$160.99 | ||
|
Unavailable |
|||
|
#5
CARBURETOR ASSEMBLY 4
50H-14904-00-00
|
$144.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 4
50H-14904-01-00
|
$144.99 | ||
|
Unavailable |
|||
|
#6
PIPE
26H-14197-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, DIAPHRAGM
3G1-14933-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#
SPRING, DIAPHRAGM
3Y6-14933-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEEDLE SET
47M-1490J-01-00
Superseded by 1TX-1490J-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
NEEDLE SET
47M-1490J-00-00
|
$16.54 | ||
|
Unavailable |
|||
|
#9
DIAPHRAGM ASSEMBLY
36Y-14940-00-00
|
$265.99 | ||
|
Unavailable |
|||
|
#
DIAPHRAGM ASSEMBLY
50H-14940-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, FLOAT CHAMBER
3XW-14984-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET, PILOT (#37.5)
4G0-14142-37-A0
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NOZZLE MAIN
50H-14941-92-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#
NOZZLE, MAIN
16H-14941-90-00
|
$15.87 | ||
|
Unavailable |
|||
|
#13
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, MAIN (110)
620-14231-22-A0
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (112.5)
620-1423A-73-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLOAT
3H5-14985-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE
2H0-14146-00-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NEEDLE VALVE SET
25G-14107-23-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
STARTER SET
36Y-1410A-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#22
CLIP
25J-14937-00-00
|
$4.11 | ||
|
Unavailable |
|||
|
#23
PLUG, DRAIN
12R-14191-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
JET, MAIN (#160)
3G2-14231-32-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#155)
3G2-14231-31-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CABLE, THROTTLE 4
36Y-2631J-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#28
STARTER LEVER SET
36Y-1490L-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#29
PIPE
26H-14197-00-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
STOP SCREW SET
36Y-1490K-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#31
THROTTLE SCREW SET
36Y-14103-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Unavailable |
|||
|
#33
PIPE, STARTER CON
36Y-14988-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NIPPLE
17A-14251-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING
822-14147-00-00
Superseded by 36Y-14147-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP, PIPE
35H-14139-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOSE
50H-14987-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CABLE, THROTTLE 3
36Y-26313-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#40
O-RING
36Y-14147-00-00
|
$5.49 | ||
|
Unavailable |
|||
