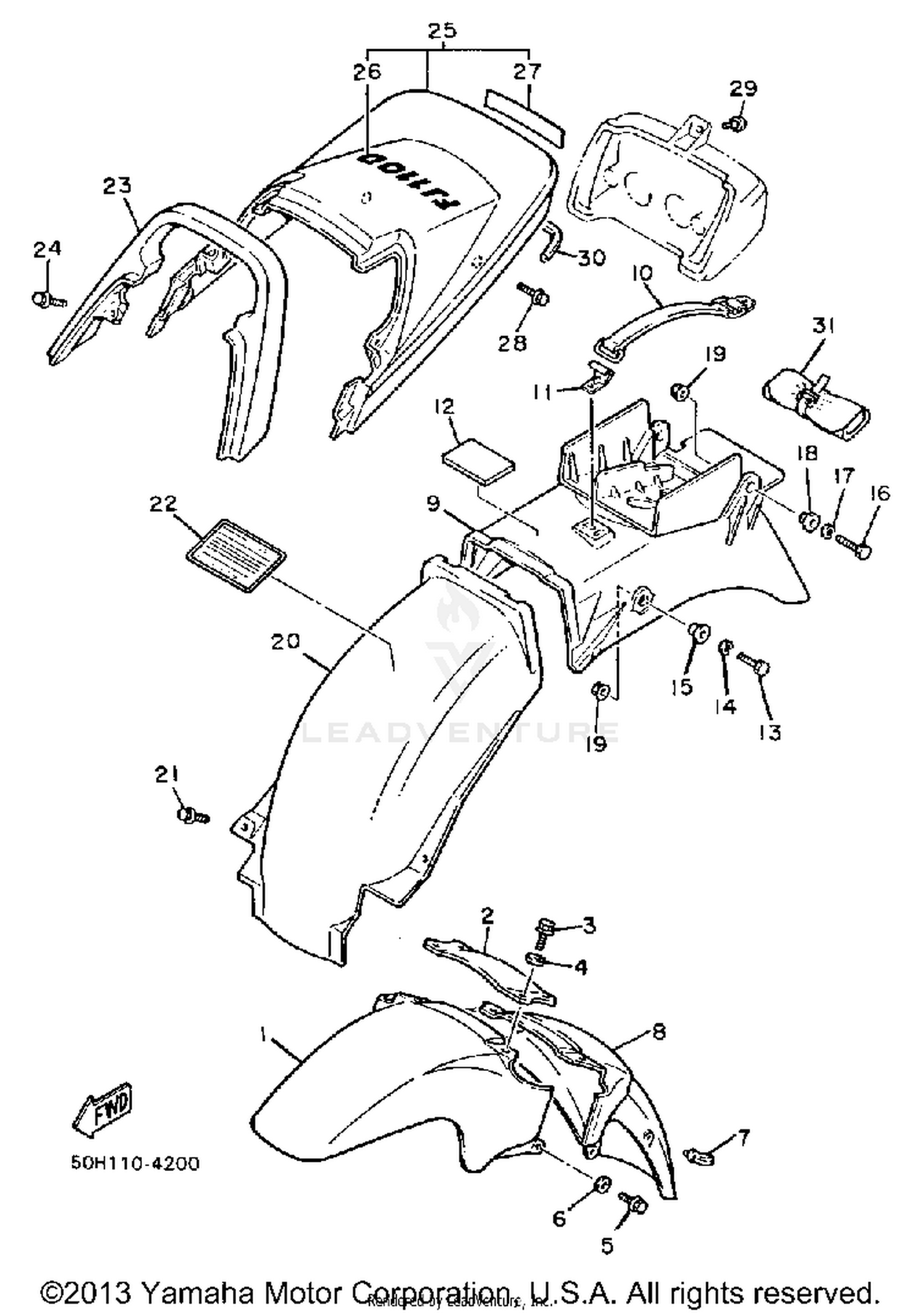

Fender Fj1100l N Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (White
36Y-21511-01-1U
Superseded by 36Y-21511-01-GE
|
$112.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT (36Y-21511-00-TF)
36Y-21511-01-AJ
|
$129.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FENDER
36Y-21512-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLG.(SMALL HEAD)
95023-06020-00
Superseded by 95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95026-06020-00
Superseded by 95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-062A8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, CABLE
1A8-21518-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER, FRONT 2 (36Y-21556-00-T
36Y-21556-01-AJ
|
$125.99 | ||
|
Unavailable |
|||
|
#
FENDER
36Y-21556-01-1U
Superseded by 36Y-21556-01-GE
|
$159.99 | ||
|
Unavailable |
|||
|
#9
REAR FENDERCOMP
47M-W2161-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#10
BAND, TOOL
36Y-21376-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#11
HOOK, BAND
36Y-2175R-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#12
SEAT 2
26H-2848K-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-06648-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
COLLAR
90387-06648-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE
95706-06500-00
Superseded by 95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUARD, MUD
36Y-21629-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#21
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, SPEC
50H-21683-70-00
|
$7.06 | ||
|
Unavailable |
|||
|
#
PLATE, SPEC
50H-21683-71-00
|
$8.28 | ||
|
Unavailable |
|||
|
#23
STAY, REAR
36Y-21645-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, REAR FENDER
36Y-W2165-00-01
|
$298.99 | ||
|
Unavailable |
|||
|
#
COVER, REAR FENDER
36Y-W2165-00-03
|
$287.99 | ||
|
Unavailable |
|||
|
#26
GRAPHIC, TAILCOVER
47M-21663-00-00
|
$10.64 | ||
|
Unavailable |
|||
|
#
GRAPHIC, TAILCOVER
36Y-21663-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#27
EMBLEM 1
36Y-2163G-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#28
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER 2
36Y-21639-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#30
MOLD 2
36Y-21649-00-00
Superseded by 1TX-28346-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#31
TOOL KIT
36Y-28100-01-00
|
$219.99 | ||
|
Unavailable |
|||
