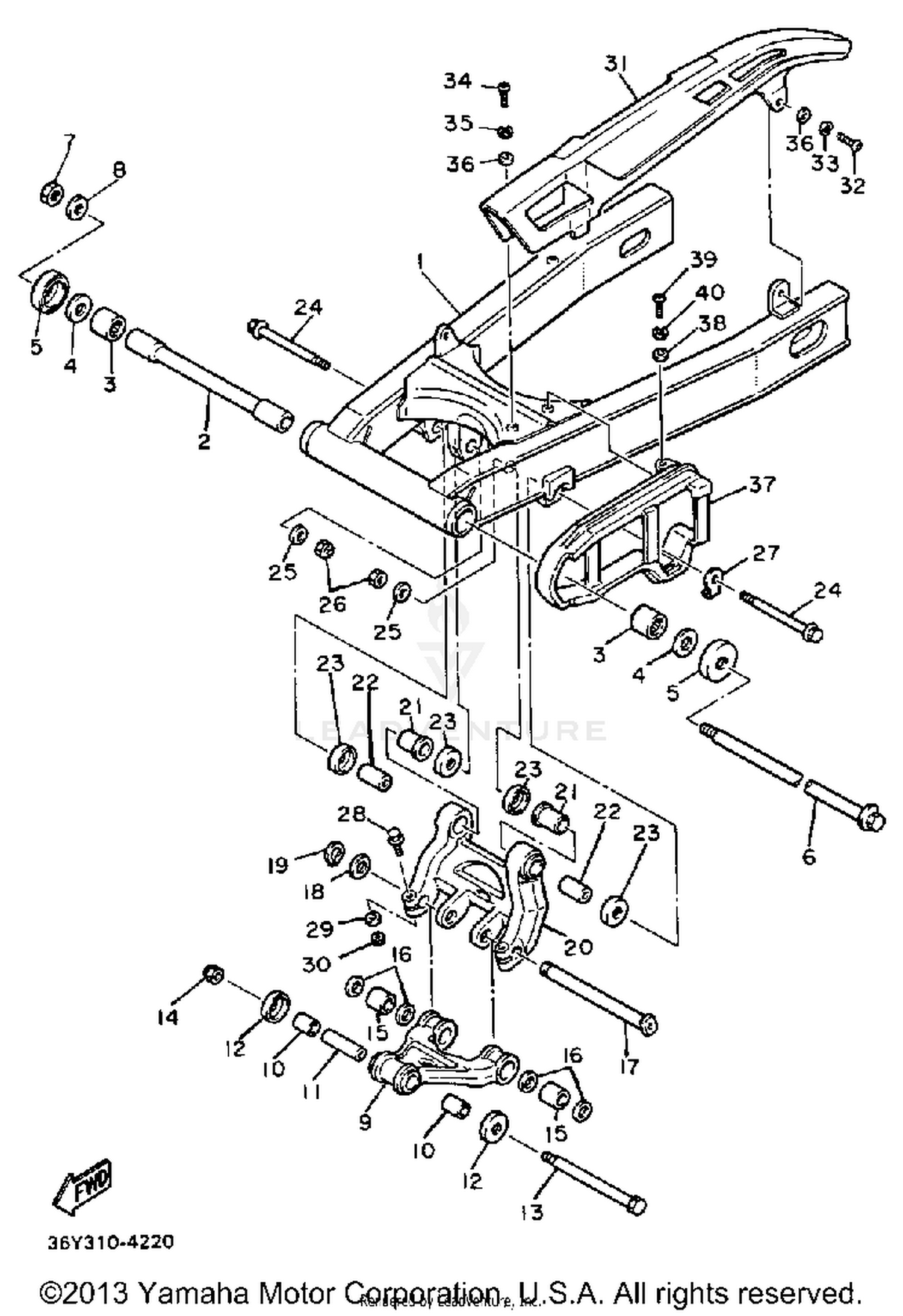

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
36Y-22110-00-00
|
$781.99 | ||
|
Unavailable |
|||
|
#2
BUSH
36Y-22184-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93317-42550-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM
36Y-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
36Y-22128-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
36Y-22141-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#7
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-142M6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, RELAY
36Y-2217A-00-00
|
$78.38 | ||
|
Unavailable |
|||
|
#10
BUSH, SPEC''L NYLON
90386-18118-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-123J0-00
Superseded by 90387-123M4-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, THRUST 2
36Y-22129-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-12605-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95611-12100-00
Superseded by 95617-12100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, SPEC''L NYLON
90386-18129-00
|
$26.99 | ||
|
Unavailable |
|||
|
#16
OIL SEAL
93109-18020-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT 1
1AE-22121-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#18
WASHER, plate
90201-187H4-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
99009-18400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
ARM 1
36Y-2217M-00-00
|
$132.99 | ||
|
Unavailable |
|||
|
#21
BUSH, SPEC''L NYLON
90386-20131-00
|
$28.99 | ||
|
Unavailable |
|||
|
#22
COLLAR
90387-125K2-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, THRUST 2
36Y-22129-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
90105-12309-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, U
95611-12100-00
Superseded by 95617-12100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
36Y-22156-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
95811-06045-00
Superseded by 95817-06045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, U
95611-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CASE, CHAIN
36Y-22311-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#36
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
SEAL, GUARD
36Y-22151-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#38
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#39
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
