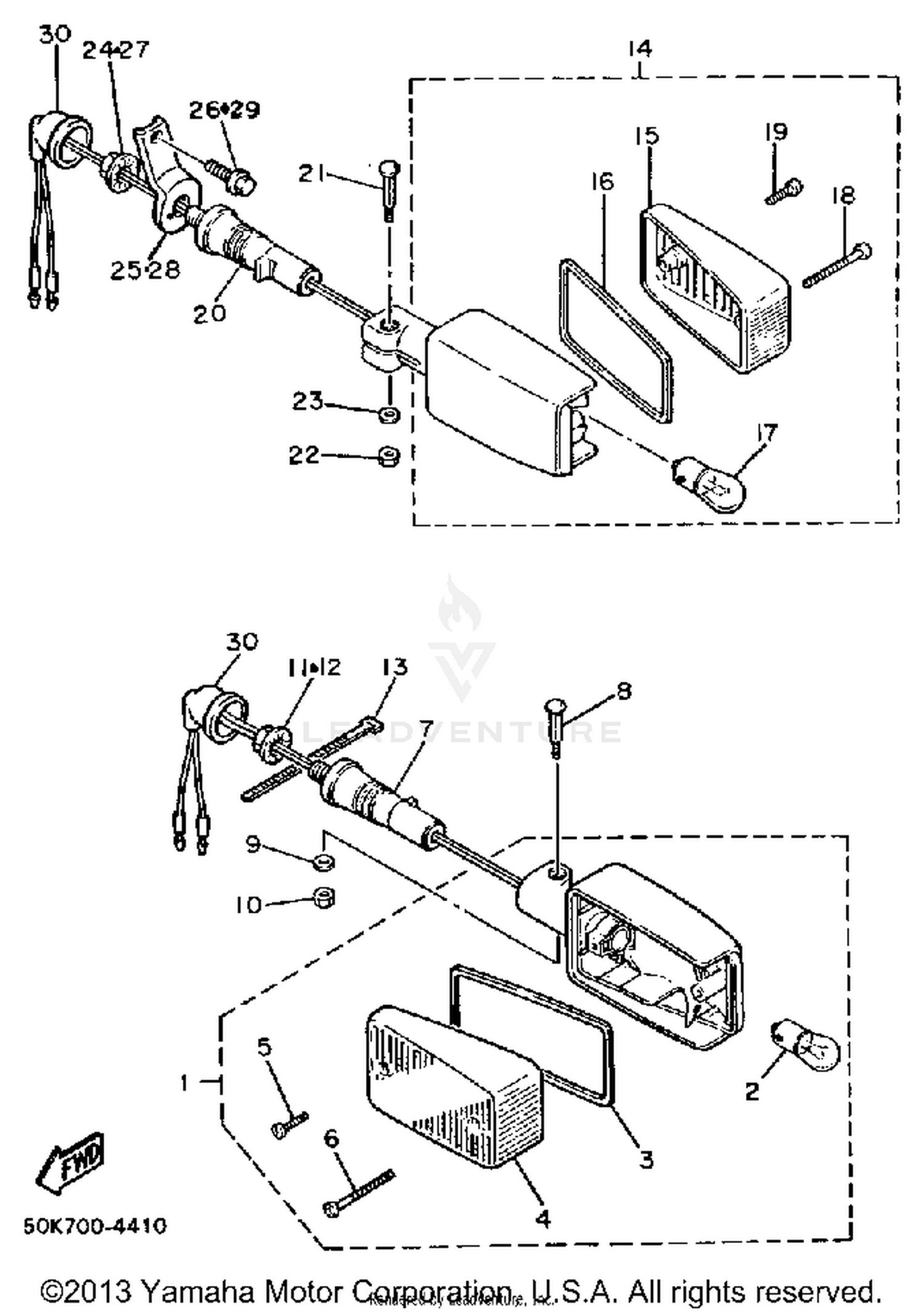

Turnsignal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASS''Y (11H
5G2-83310-70-00
|
$97.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, FLASHER LENS
5G2-83313-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, FLASHER
5G2-83312-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING (FJ1)
97780-40535-00
|
$3.20 | ||
|
Unavailable |
|||
|
#7
STAY, FLASHER 1
4G0-83318-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#8
BOLT, flasher 1
5G2-83317-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95306-05600-00
Superseded by 95317-05600-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE
95706-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE
95706-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
REAR FLASHER LIGHT ASS''Y
5G2-83303-70-00
|
$61.99 | ||
|
Unavailable |
|||
|
#15
LENS, FLASHER
5G2-83312-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#16
GASKET, FLASHER LENS
5G2-83313-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#17
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING (FJ1)
97780-40535-00
|
$3.20 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, FLASHER 1
4G0-83318-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#21
BOLT, flasher 1
5G2-83317-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
NUT
95306-05600-00
Superseded by 95317-05600-00
|
$2.20 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#24
NUT, FLANGE
95706-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
STAY, FLASHER
36Y-83368-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE
95706-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
STAY, FLASHER
36Y-83369-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#30
CAP
18G-83365-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
