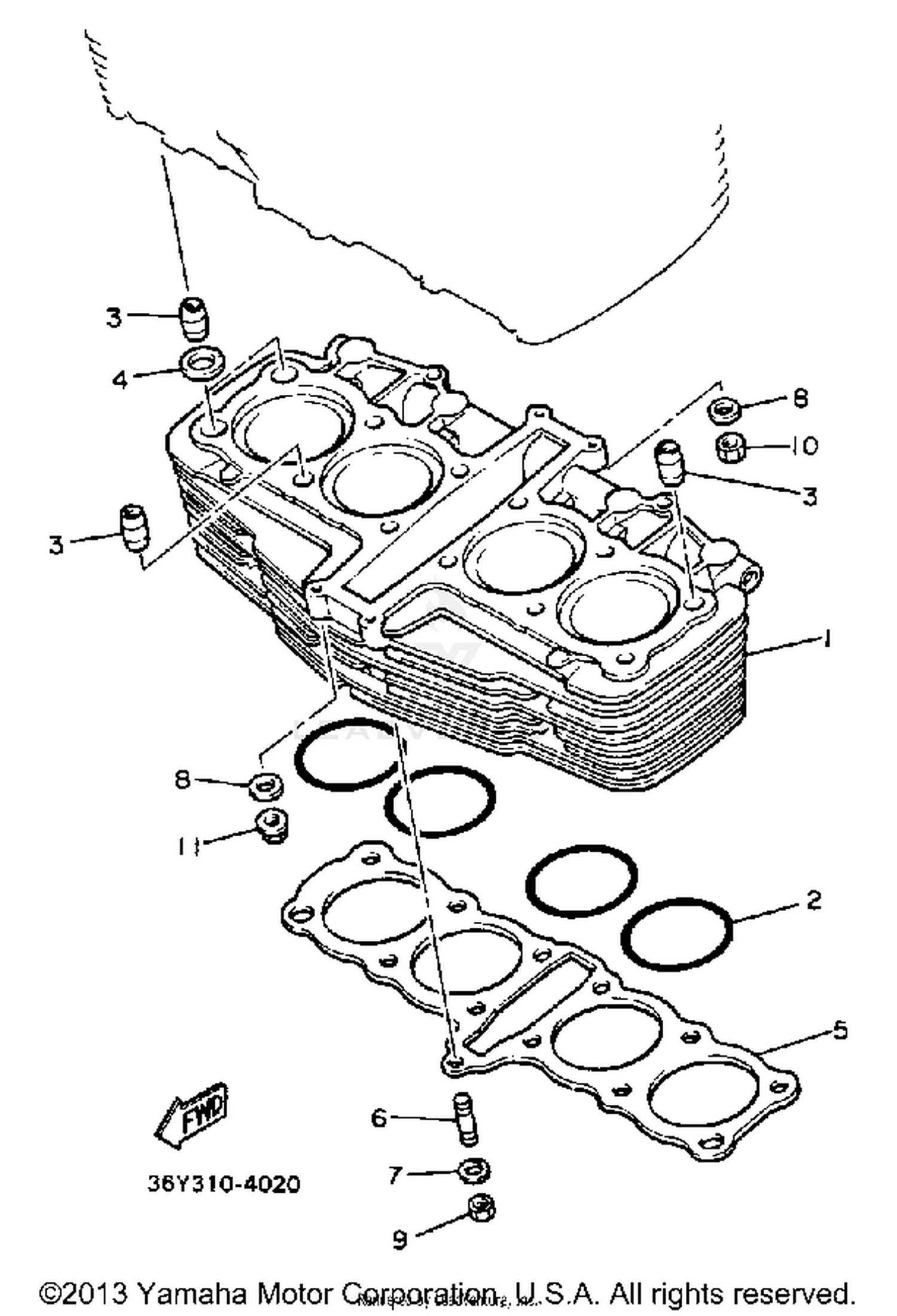

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
36Y-11310-00-00
|
$559.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-77363-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-14131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER
4CR-11351-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD
95611-08330-00
Superseded by 95617-08330-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-084G3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95311-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-06499-00
Superseded by 90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
