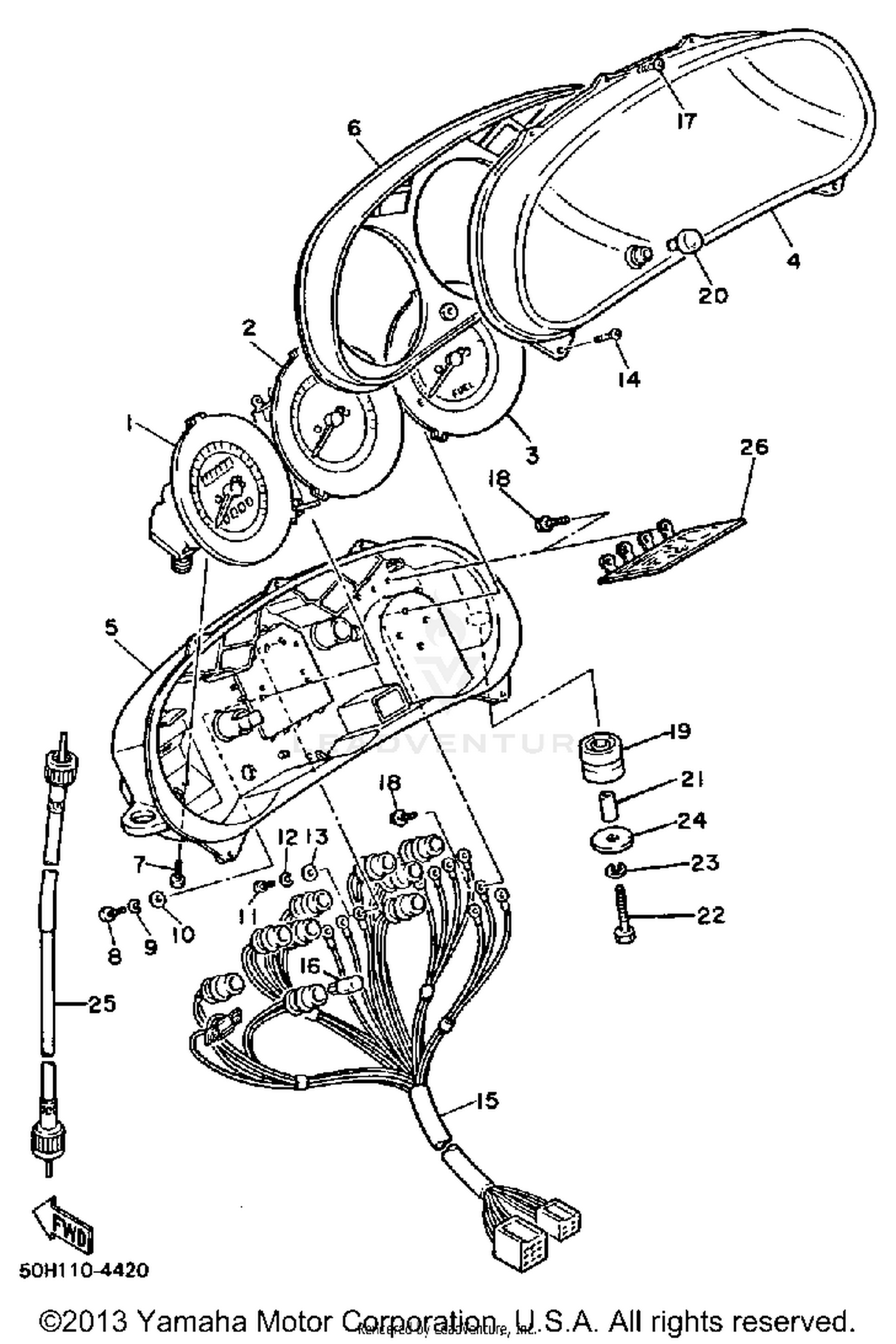

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASY
47M-83570-A0-00
Superseded by 36Y-83570-G1-00
|
$164.99 | ||
|
Unavailable |
|||
|
#2
TACHOMETER ASSEMBLY
36Y-83540-01-00
|
$273.99 | ||
|
Unavailable |
|||
|
#3
FUEL METER ASSEMBLY
36Y-85750-02-00
|
$101.99 | ||
|
Unavailable |
|||
|
#4
LENS, SPEEDOMETER
36Y-83511-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#5
CASE, INNER
36Y-8353H-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#6
COVER, METER PANEL
36Y-83612-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#7
SCREW, TAPPING
90167-04021-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-03010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
92902-03600-00
Superseded by 92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
90164-04005-00
|
$0.85 | ||
|
Unavailable |
|||
|
#15
SOCKET CORD ASSEMBLY
36Y-83509-00-00
|
$81.66 | ||
|
Unavailable |
|||
|
#16
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING
97701-30514-00
Superseded by 97707-30514-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, WITH WASHER
90159-03102-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER
36Y-83523-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
KNOB, TRIP METER
36Y-83578-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-060J4-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (682)
97313-06040-00
Superseded by 97095-06040-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-060A3-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OVER-REV LIMITER
36Y-8359J-00-00
|
$117.99 | ||
|
Unavailable |
|||
