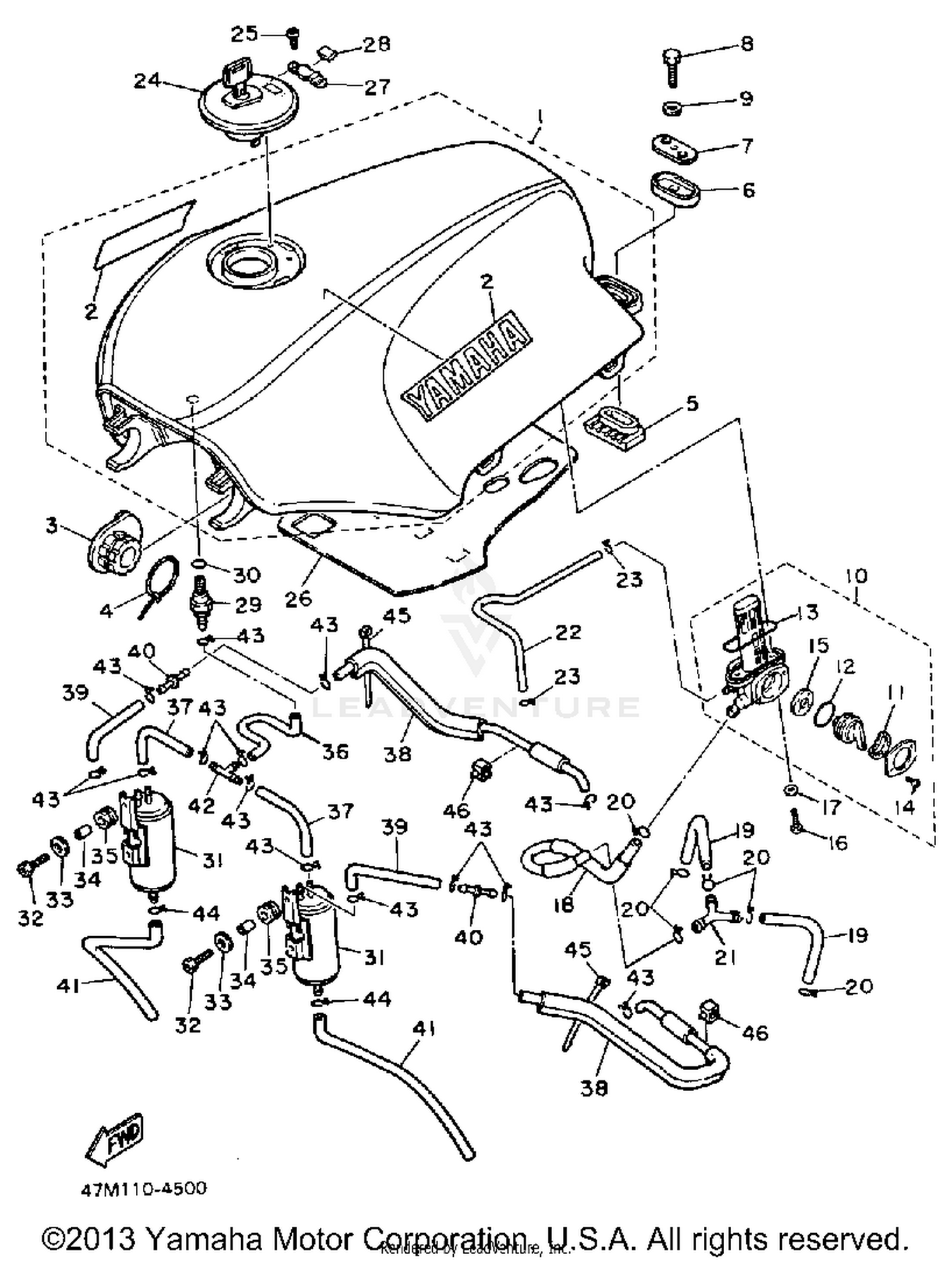

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK (47M-24110-00-01) (LC
47M-24110-01-01
|
$604.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
47M-24110-01-02
|
$631.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
36Y-24161-00-00
Superseded by 99243-00140-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
EMBLEM, YAMAHA
99224-00040-00
Superseded by 99224-00160-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, LOCATING 1
36Y-24181-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#4
CLAMP 1
5Y9-12491-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 2
36Y-24182-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
36Y-24186-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
BOLT,HEXAGON
97026-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUEL COCK ASSY 1
36Y-24500-00-00
Superseded by 36Y-24500-01-00
|
$281.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, WAVE
16G-24518-00-00
|
$3.45 | ||
|
Unavailable |
|||
|
#12
SEAL, COCK
2G2-24534-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
2G2-24512-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE
47X-24523-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#16
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE 2
36Y-24312-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#19
PIPE, FUEL 1
36Y-24311-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#20
CLIP
90467-12052-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, JOINT 1
36Y-24376-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#22
PIPE 3
36Y-24313-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#23
CLIP
90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP.ASSEMBLY
47M-24602-03-00
|
$117.99 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL, AIR SHROUD 1
3CV-24125-00-00
|
$221.99 | ||
|
Unavailable |
|||
|
#27
COVER,HINGE
36Y-24669-00-00
Superseded by 36Y-24669-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#28
DAMPER
36Y-24665-00-00
|
$1.40 | ||
|
Unavailable |
|||
|
#29
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-10166-00
Superseded by 93210-11453-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CANISTER ASSEMBLY
47M-24170-00-00
|
$228.99 | ||
|
Unavailable |
|||
|
#32
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-060G7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET
90480-12529-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE, FUEL 1
47M-24311-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#37
HOSE
90445-115A5-00
|
$1.40 | ||
|
Unavailable |
|||
|
#38
PIPE 2
47M-24312-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#39
PIPE 3
47M-24313-00-00
|
$7.88 | ||
|
Unavailable |
|||
|
#40
TUBE, CONNECTING
42H-24119-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#41
PIPE 4
47M-24314-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#42
PIPE, JOINT 1
3H3-24376-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90464-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
