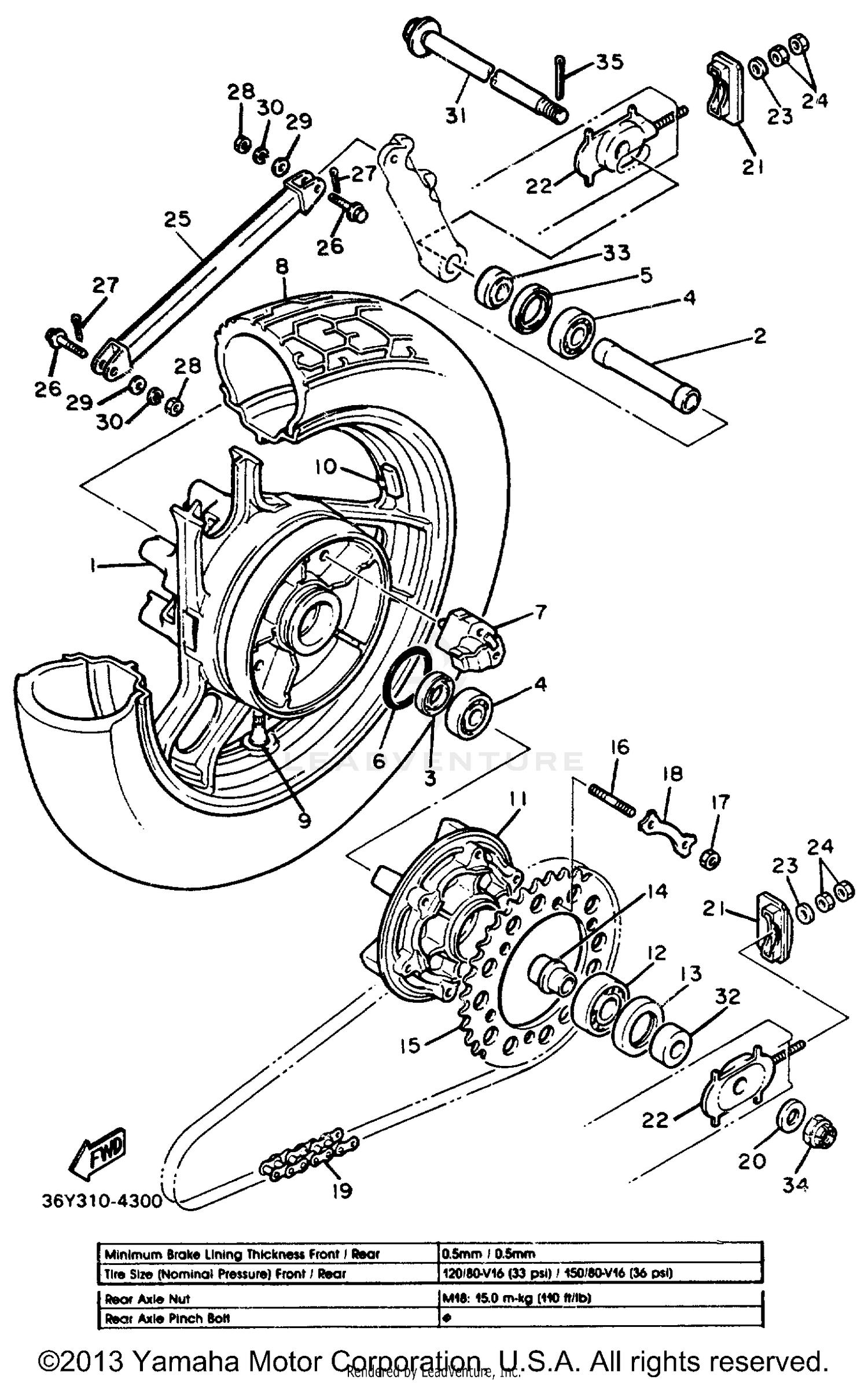

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
36Y-25338-01-98
|
$562.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20254-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
2H7-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-40027-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-65752-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
2GH-25364-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
150/80V16 TL BS
94115-162N3-00
|
$219.99 | ||
|
Unavailable |
|||
|
#9
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH, HUB
36Y-25366-01-00
|
$162.99 | ||
|
Unavailable |
|||
|
#12
BRG,R-B 6305ZZ 62MM
93306-30507-00
Superseded by 93306-305U0-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93106-42026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, WHEEL
36Y-25377-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#15
SPROCKET, DRVN 42T
36Y-25442-20-00
|
$58.99 | ||
|
Unavailable |
|||
|
#16
BOLT, STUD
90116-10449-00
|
$2.70 | ||
|
Unavailable |
|||
|
#17
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
36Y-25412-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#19
CHAIN
94580-94110-00
Superseded by 94581-78110-00
|
$312.99 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-18264-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 2
36Y-25389-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PULLER, CHAIN 1
36Y-25388-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAR, TENSION
36Y-25371-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WASHER BASED
90105-08315-00
|
$3.75 | ||
|
Unavailable |
|||
|
#27
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
AXLE, WHEEL
36Y-25381-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#32
COLLAR
90387-203U4-00
|
$14.49 | ||
|
Unavailable |
|||
|
#33
COLLAR
90387-200J2-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, CASTLE
90171-18043-00
|
$21.99 | ||
|
Unavailable |
|||
|
#35
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
