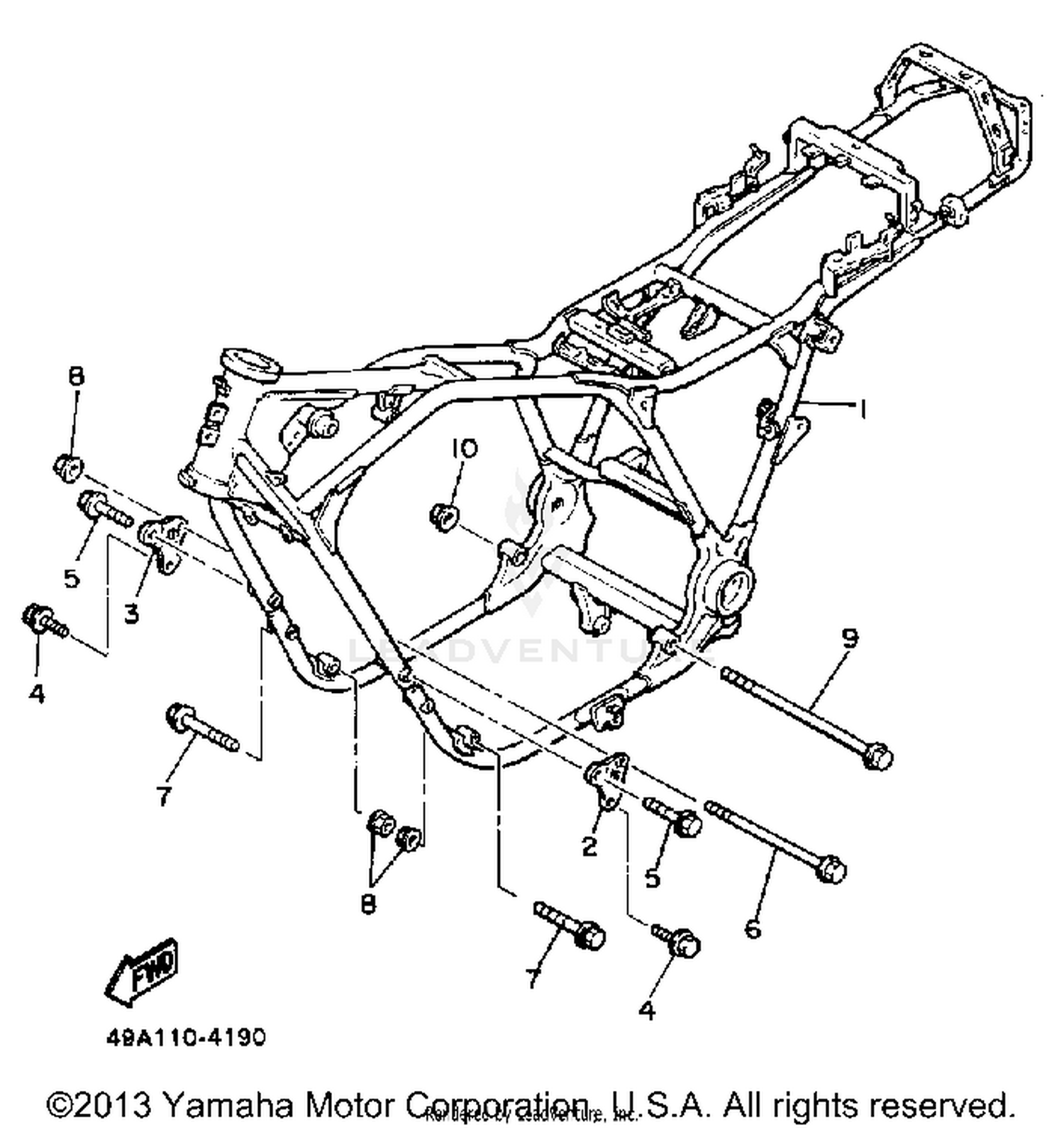

Frame-fj600l\n Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
FRAME
51K-21110-00-33
|
$839.99 | ||
|
Unavailable |
|||
|
#
STAY, ENGINE 2
33M-21315-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#
STAY, ENGINE 3
33M-21316-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#
BOLT, FLANGE
90105-08155-00
Superseded by 90105-08066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT, WASHER BASED
90105-10401-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT, FLANGE
90105-10170-00
Superseded by 90105-10737-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT, WASHER BASED
90105-12171-00
|
$26.99 | ||
|
Unavailable |
|||
|
#
NUT
90179-12421-00
Superseded by 90179-12657-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
