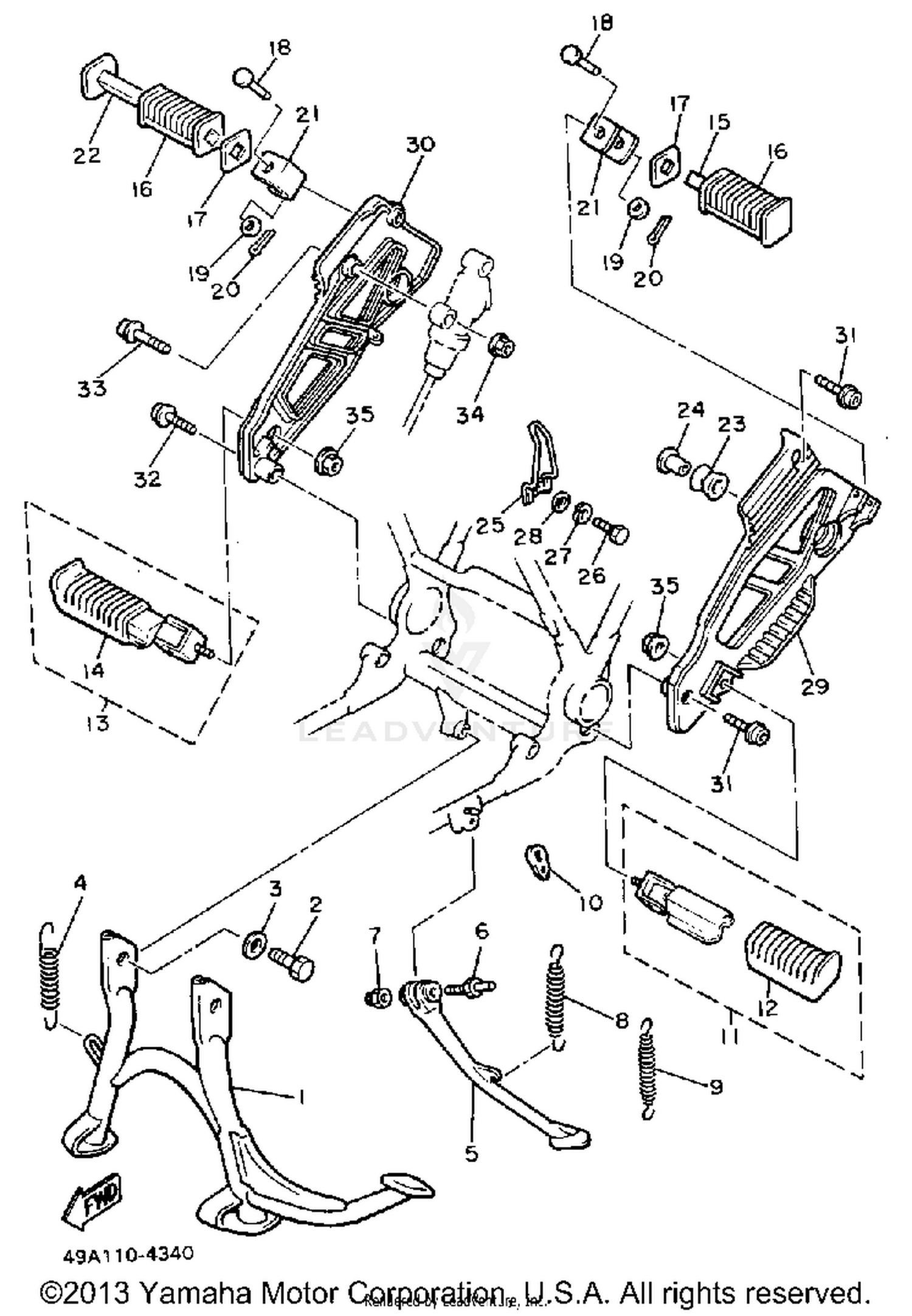

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
33M-27111-00-R4
|
$89.99 | ||
|
Unavailable |
|||
|
#2
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-10752-00
Superseded by 90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-35337-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
STAND, SIDE
51J-27311-00-R4
|
$48.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90109-10590-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-18224-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-26225-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LINK, SIDE STAND
2KT-27315-00-00
Superseded by 3VD-27315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRT FOOTREST ASSEMBLY LASSEMBLY
51J-27410-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#12
COVER, FOOTREST
4L0-27423-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FRT FOOTREST ASSEMBLY RASSEMBLY
51J-27420-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#14
COVER, FOOTREST
4L0-27423-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#15
FOOTREST, REAR 1
447-27431-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, RR FOOTREST
447-27433-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, CLEVIS
91701-06042-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, FOOTREST 2
51J-27425-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
FOOTREST, REAR 2
447-27441-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, FOOTREST
2H7-27414-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-10636-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, BRAKE HOSE 1
33M-25875-50-00
Superseded by 3KM-25875-50-00
|
$13.99 | ||
|
Unavailable |
|||
|
#26
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET 2
51J-27442-00-00
|
$180.99 | ||
|
Unavailable |
|||
|
#30
BRACKET 3
51J-27443-00-00
|
$220.99 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-08066-00
Superseded by 90110-08199-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
90110-08068-00
Superseded by 90110-08099-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEX SKT HEAD
90110-08069-00
Superseded by 90110-08232-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
