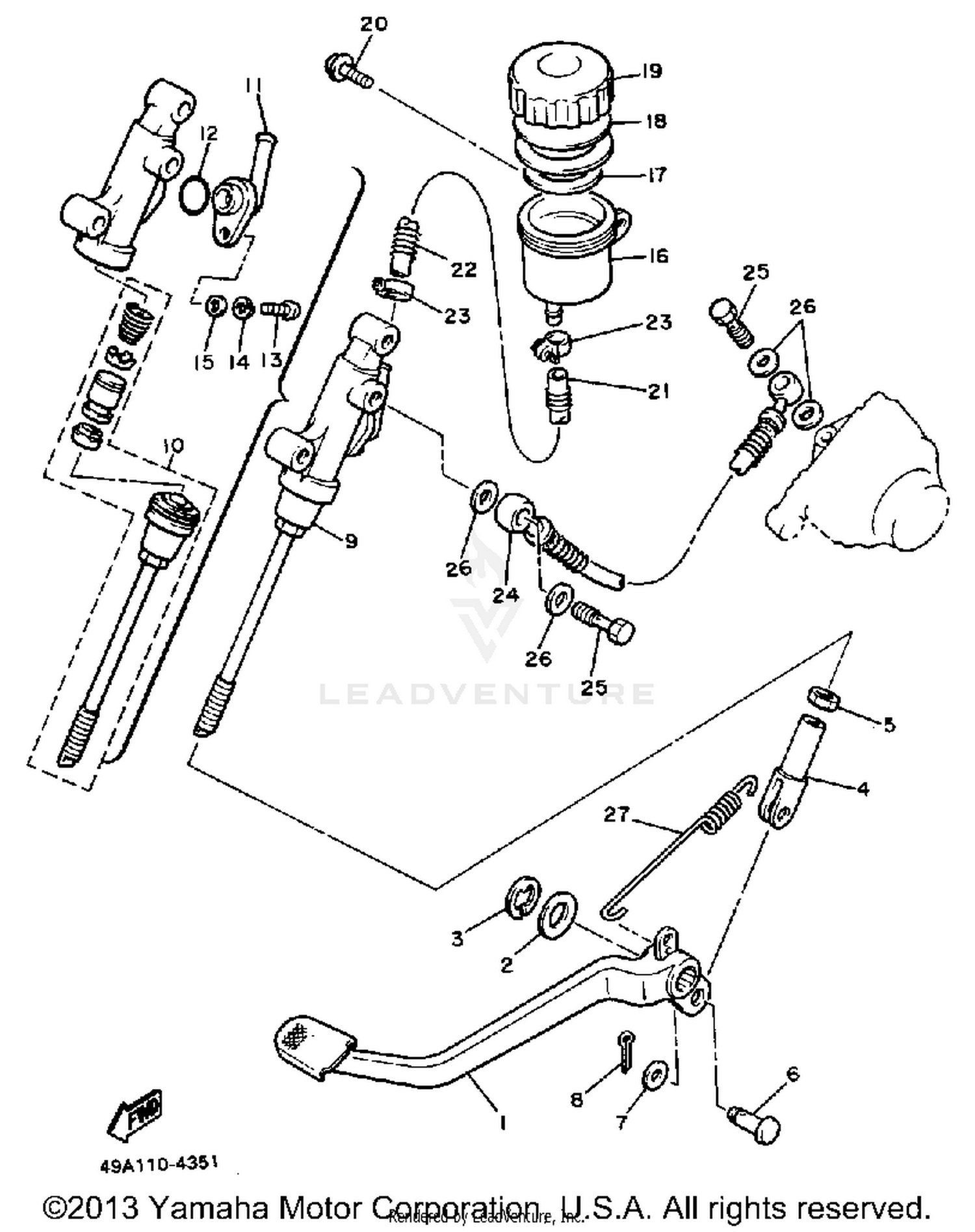

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
33M-27211-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#2
WASHER, PLATE
90201-14212-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
31A-27222-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MSTR CYLINDER ASSEMBLYASSY
33M-25850-51-00
|
$299.99 | ||
|
Unavailable |
|||
|
#10
CYLINDER KIT, MASTER
33M-W0042-50-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONNECTOR
31A-2582A-50-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANK, RESERVOIR
31A-25894-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, RESERVOIR
33M-25895-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#22
SPRING, COMPRESSION
90501-10788-00
|
$1.49 | ||
|
Unavailable |
|||
|
#23
CLAMP, HOSE
90460-12268-00
|
$17.49 | ||
|
Unavailable |
|||
|
#24
HOSE, BRAKE 1
33M-25872-50-00
|
$23.42 | ||
|
Unavailable |
|||
|
#25
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, TENSION
90506-20336-00
|
$5.49 | ||
|
Unavailable |
|||
