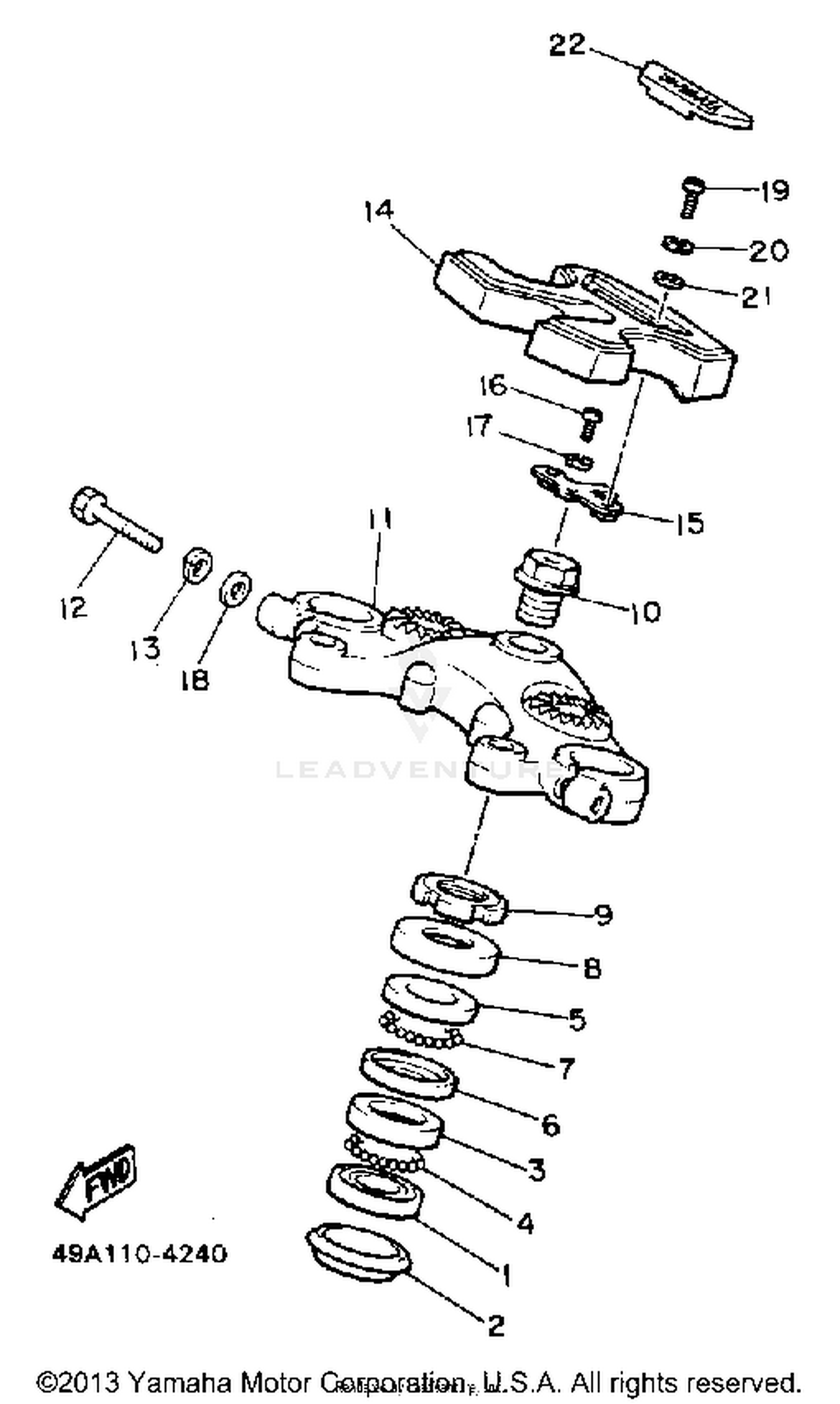

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, DUST
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, BALL 2
156-23412-00-00
Superseded by B6E-23412-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, BALL 1
183-23411-00-00
Superseded by 4FP-F3411-20-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE,BALL 2
183-23412-00-00
Superseded by 4FP-F3412-10-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
COVER, BALL RACE 1
4K0-23415-00-00
Superseded by 136-23415-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-25495-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-14602-00
|
$11.99 | ||
|
Unavailable |
|||
|
#11
CROWN HANDLE (33M-23435-98)
33M-23435-01-98
|
$163.99 | ||
|
Unavailable |
|||
|
#12
BOLT, DOME HEAD
90106-08043-00
|
$2.37 | ||
|
Unavailable |
|||
|
#13
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, UPPER
51J-26213-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#15
WASHER
51J-26129-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, HANDLEBAR COVER
31A-26216-00-00
|
$30.99 | ||
|
Unavailable |
|||
