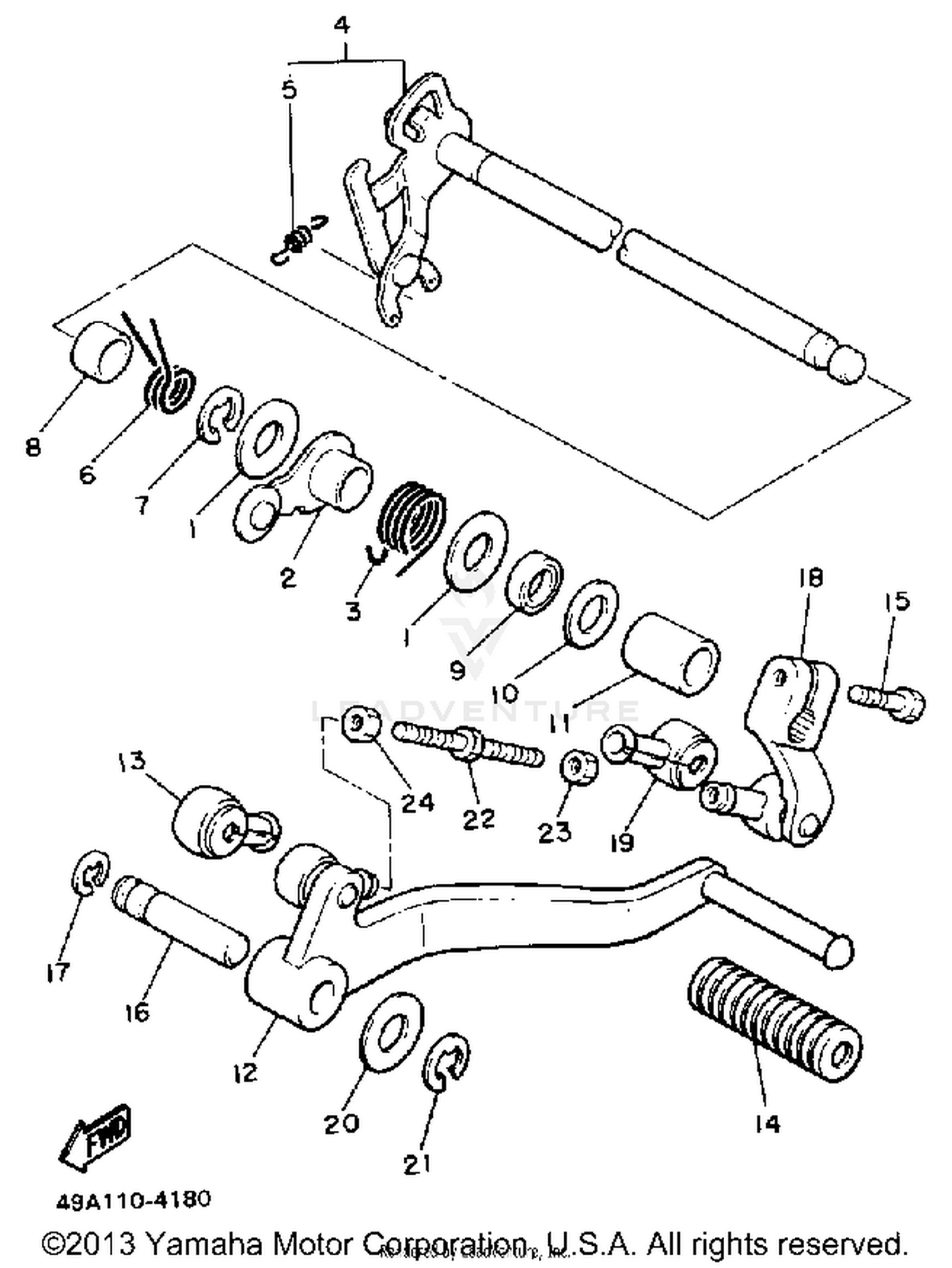

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, PLATE
90201-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER LEVER ASSY
4G0-18140-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-29640-00
|
$4.80 | ||
|
Unavailable |
|||
|
#4
SHIFT LEVER ASSEMBLY
4G0-18120-01-00
|
$100.99 | ||
|
Unavailable |
|||
|
#5
SPRING, TENSION
90506-08227-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TORSION
90508-32534-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-124F4-00
Superseded by 90387-12033-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-12321-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-12575-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-125A8-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
PEDAL, SHIFT
33M-18110-01-00
|
$89.99 | ||
|
Unavailable |
|||
|
#13
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT
4K0-18197-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#17
CIRCLIP, OUTER
93440-12066-00
|
$1.95 | ||
|
Unavailable |
|||
|
#18
ARM,SHIFT PEDAL
2H9-18112-00-00
Superseded by 4BB-18112-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#19
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-124E4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
ROD, SHIFT
4K0-18115-00-00
Superseded by 2XK-18115-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
