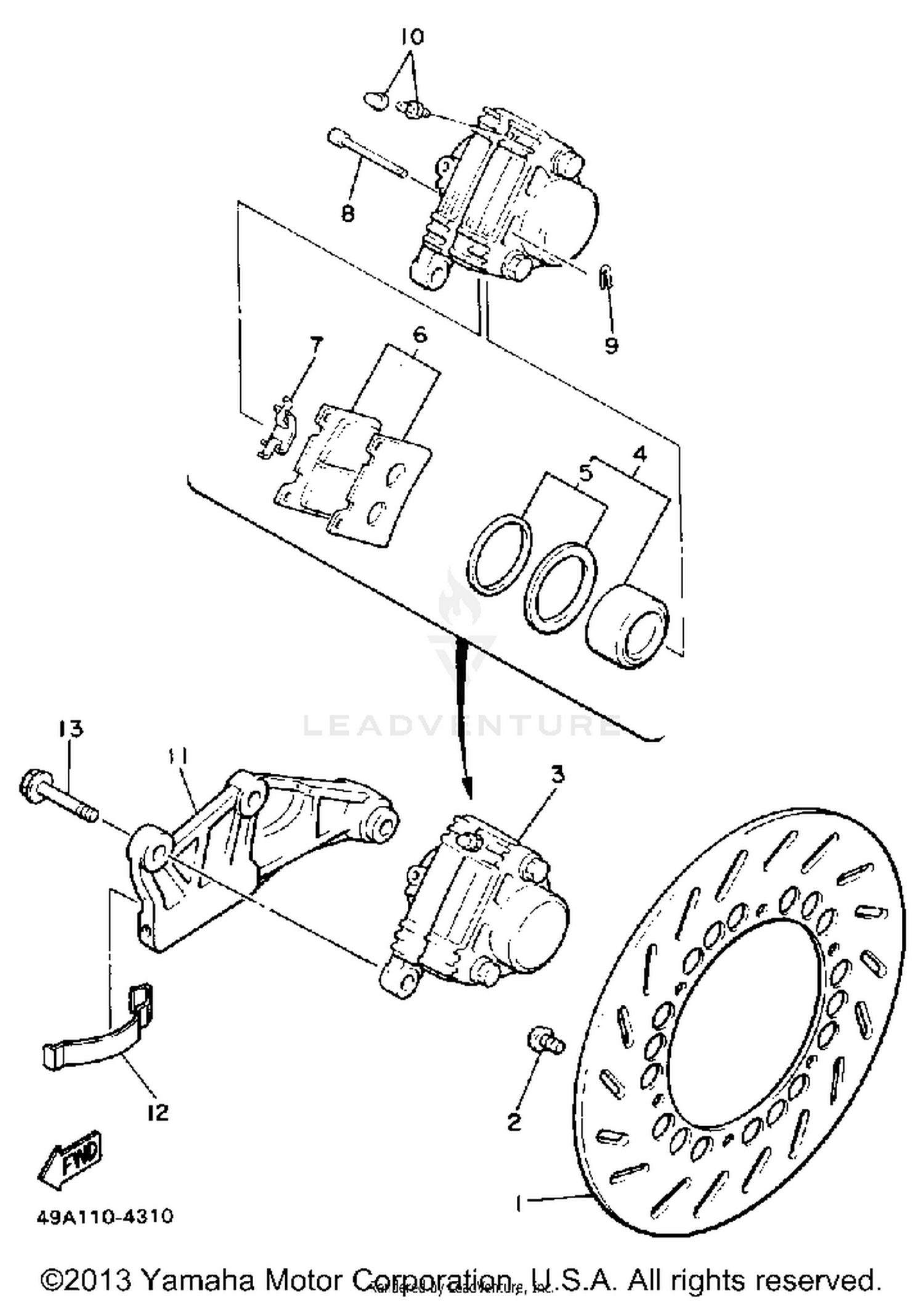

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE R (BLCK) (RIGHT)
29L-25831-00-00
|
$351.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-08718-00
Superseded by 90111-08084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSEMBLY
51J-25810-51-00
|
$191.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSEMBLY, CALIPER
26H-W0057-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CALIPER SEAL KIT
26H-W0047-00-00
Superseded by 4XV-W0047-50-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE PAD KIT 2
1FK-W0046-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUPPORT, PAD
1WG-25919-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, PAD
3HE-25924-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
3HE-25925-00-00
Superseded by 3GM-25925-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, CALIPER
51J-25819-00-98
|
$47.04 | ||
|
Unavailable |
|||
|
#12
SPRING, SUPPORT
33M-25927-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
90105-10259-00
Superseded by 90105-10634-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
