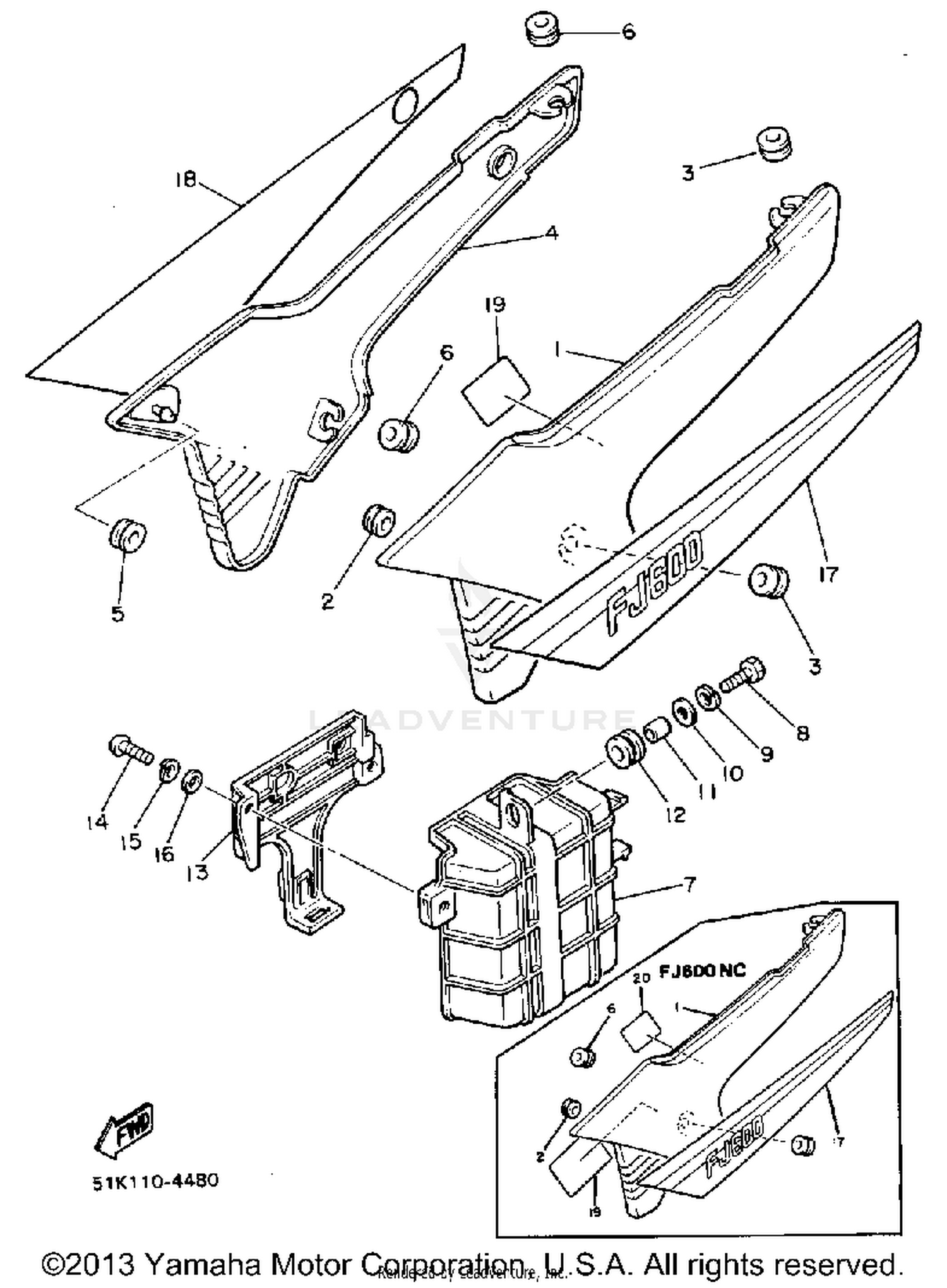

Side Cover-fj600lc\nc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
COVER, SIDE 1
33M-21711-00-1U
|
$84.73 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 1
33M-21711-00-6G
|
$95.10 | ||
|
Unavailable |
|||
|
#
GROMMET
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, SIDE 2
33M-21721-00-1U
|
$91.67 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 2
33M-21721-00-6G
|
$104.02 | ||
|
Unavailable |
|||
|
#
GROMMET
90480-01401-00
|
$7.49 | ||
|
Unavailable |
|||
|
#
GROMMET
90480-12053-00
|
$6.49 | ||
|
Unavailable |
|||
|
#
BOX
33M-21170-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
GROMMET
90480-16233-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
LID
33M-28185-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#
WASHER, PLATE
90201-062G3-00
Superseded by 90201-06049-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#
GRAPHIC
49A-2173E-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC
49A-2173E-10-00
|
$32.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC
49A-2173F-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC
49A-2173F-10-00
|
$30.99 | ||
|
Unavailable |
|||
|
#
PLATE, ROUTING 2
20K-21686-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#
PLATE, SPEC
51K-21683-52-00
|
$5.86 | ||
|
Unavailable |
|||
