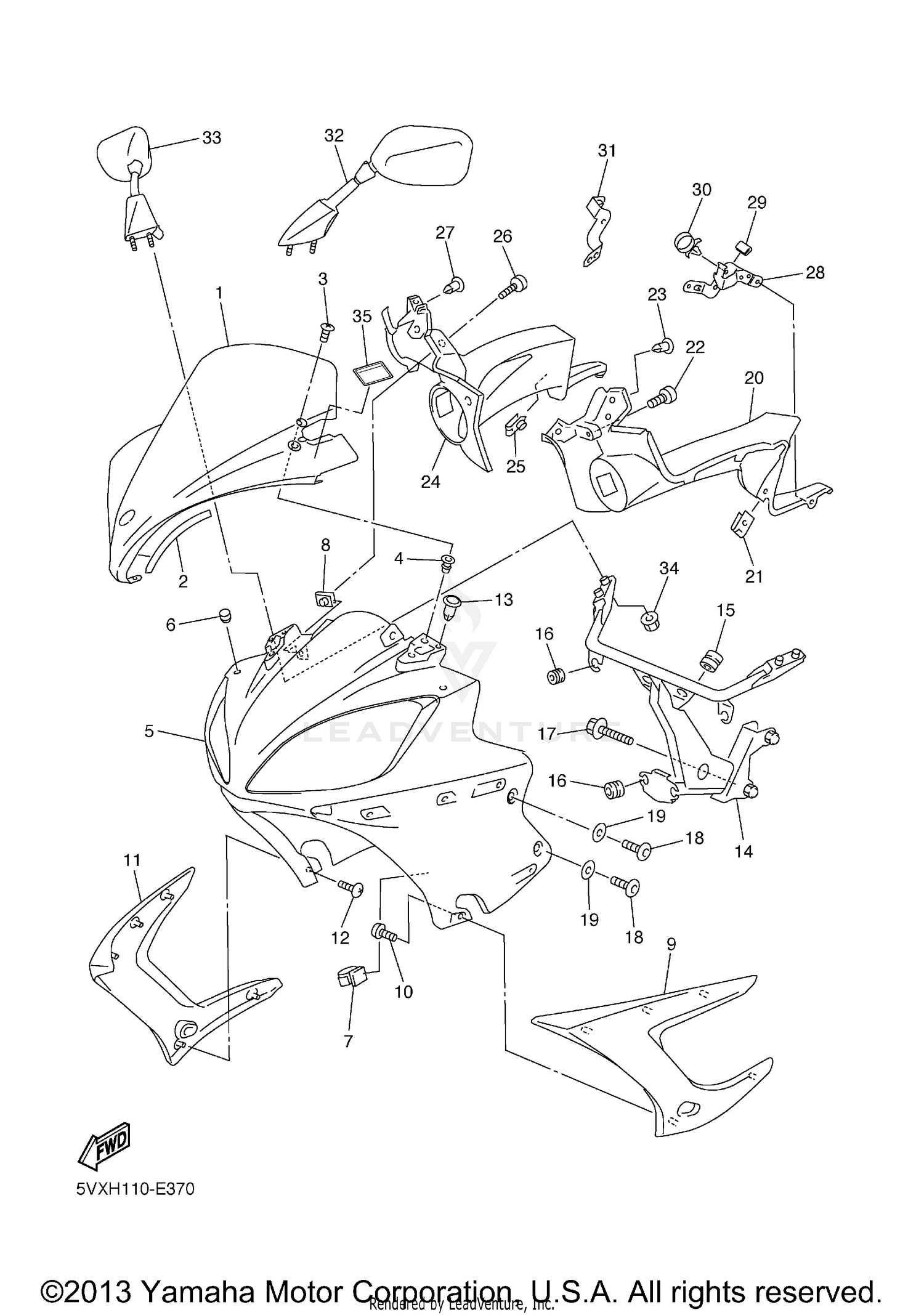

Cowling 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
5VX-28381-30-00
Superseded by 5VX-28381-31-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TRIM
5VX-28376-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, ROUND HEAD
90150-05023-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY, FRONT UPPER 1
5VX-2835G-A0-0X
|
$657.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BODY, FRONT UPPER 1
5VX-2835G-A0-1X
|
$657.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
1J7-21717-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-54086-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-05074-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
VISOR, SIDE 1
5VX-2830C-00-P5
Superseded by 5VX-2830C-01-P5
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#
VISOR, SIDE 1
5VX-2830C-00-P6
Superseded by 5VX-2830C-01-P6
|
$65.99 | ||
|
Unavailable |
|||
|
#10
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
VISOR, SIDE 2
5VX-2830D-00-P6
Superseded by 5VX-2830D-01-P6
|
$77.99 | ||
|
Unavailable |
|||
|
#
VISOR, SIDE 2
5VX-2830D-00-P5
Superseded by 5VX-2830D-01-P5
|
$94.99 | ||
|
Unavailable |
|||
|
#12
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Unavailable |
|||
|
#13
RIVET
90269-05049-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY 1
5VX-28356-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-14585-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WITH WASHER
90119-08081-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
90110-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90202-06170-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
PANEL, INNER 1
5VX-2836K-10-00
Superseded by 5VX-2836K-11-00
|
$55.99 | ||
|
Unavailable |
|||
|
#21
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIVET
90269-05049-00
|
$2.60 | ||
|
Unavailable |
|||
|
#24
PANEL, INNER 2
5VX-2836L-10-00
Superseded by 5VX-2836L-11-00
|
$55.99 | ||
|
Unavailable |
|||
|
#25
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Unavailable |
|||
|
#26
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Unavailable |
|||
|
#27
RIVET
90269-05049-00
|
$2.60 | ||
|
Unavailable |
|||
|
#28
BRACKET 3
5VX-2836F-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
MOLE, SIDE COVER 1
1FK-2171M-00-00
Superseded by 1FK-2171L-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-16006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET 2
5VX-2836E-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SENSOR, LEAN ANGLE
5VX-26280-00-00
Superseded by 5VX-26280-01-00
|
$92.99 | ||
|
Unavailable |
|||
|
#33
REAR VIEW MIRROR ASSY (RIGHT)
5VX-26290-00-00
Superseded by 5VX-26290-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#34
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
LABEL, CAUTION
5JW-2835Y-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
