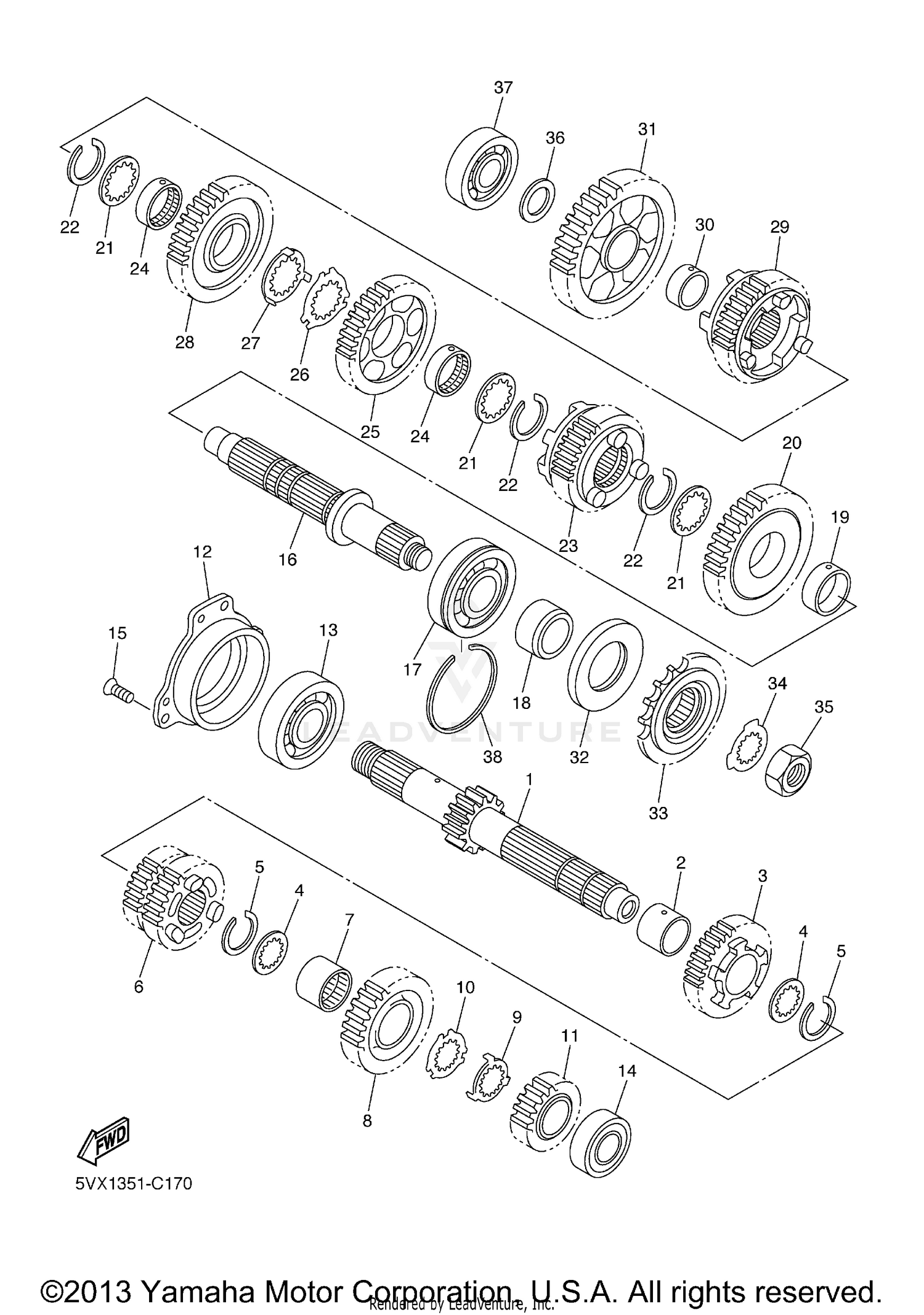

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (13T)
5SL-17411-00-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-253M6-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (21T)
5VX-17151-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-21332-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25186-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (18T/24T)
5SL-17131-20-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-2513E-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 6TH PINION (24T)
5SL-17161-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-22352-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-21351-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 2ND PINION (19T)
5SL-17121-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING, BEARING 1
5EB-15163-01-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-30525-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20464-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, COUNTERSUNK
90151-06008-00
Superseded by 90151-06014-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, DRIVE
5SL-17421-00-00
|
$238.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-30546-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-2504A-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-2813C-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 2ND WHEEL (37T)
5VX-17221-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
90209-25342-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
93440-28062-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 6TH WHEEL (26T)
5VX-17261-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-2813D-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 4TH WHEEL (32T)
5SL-17241-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
90209-25349-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
90209-25350-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 3RD WHEEL (28T)
5SL-17231-00-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR, 5TH WHEEL (25T)
5VX-17251-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-2202V-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, 1ST WHEEL (37T)
5SL-17211-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL
93102-35423-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRIVE (16T)
5VX-17460-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK
90215-21290-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
90179-18005-00
Superseded by 90179-18006-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-20278-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93306-20464-00
|
$40.99 | ||
|
Unavailable |
|||
|
#38
CIRCLIP 1
278-17424-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
