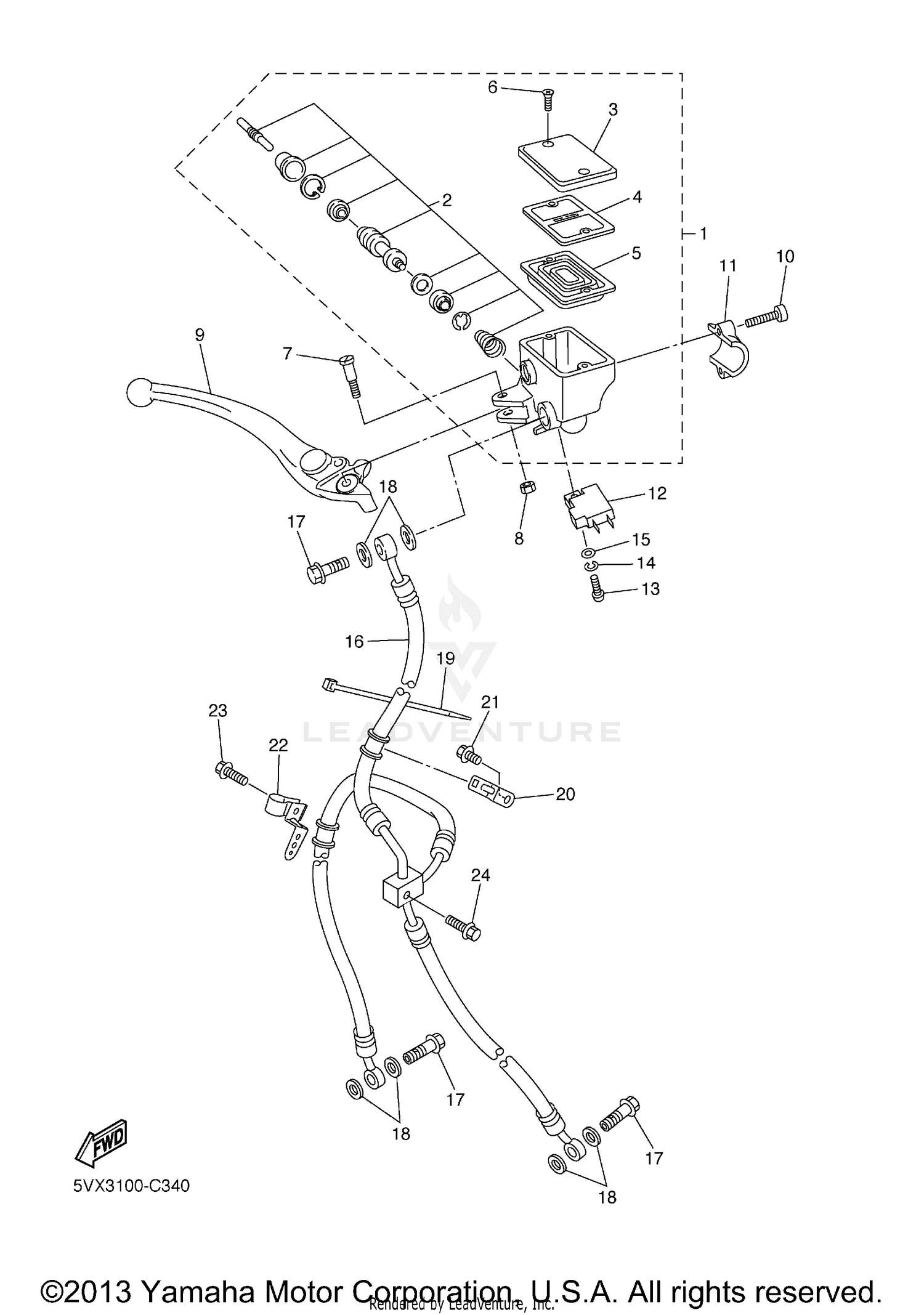

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
5VS-W2587-00-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5VS-W0041-00-00
Superseded by 2D1-25807-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RESERVOIR
5VS-25852-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, DIAPHRAGM
5VS-25855-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
5VS-25854-00-00
Superseded by 20S-25854-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
5VS-2589H-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, LEVER
5VS-2589F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U
95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER 2
5VS-83922-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
5VS-26332-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, MASTER CYLINDER
5VS-25867-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT STOP SWITCH ASSY
4HM-83980-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BRAKE 1
5VX-25872-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, BRAKE HOSE 2
5SL-25876-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, BRAKE HOSE 1
5VX-25875-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
