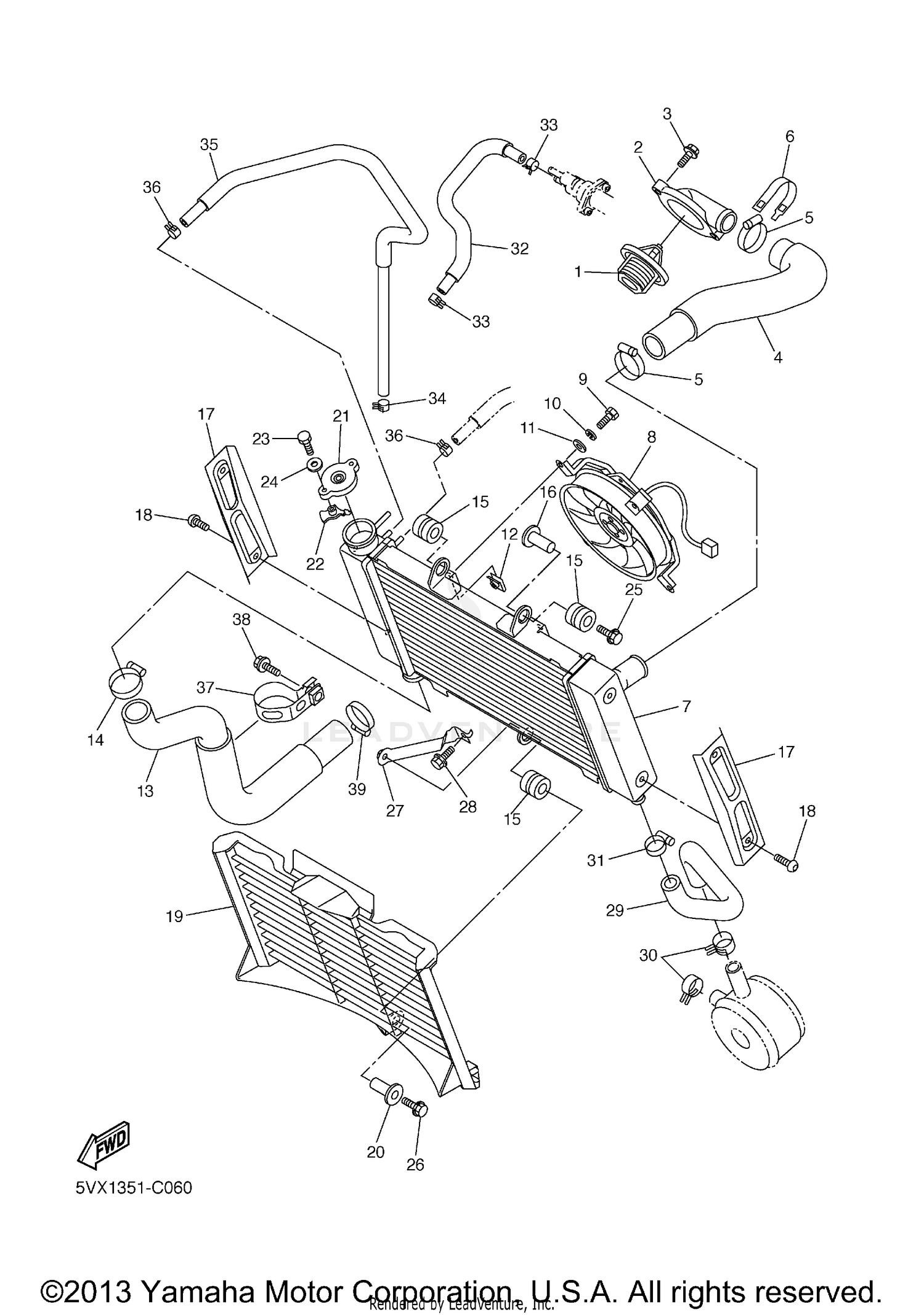

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT ASSY
5SL-12410-00-00
Superseded by 5SL-12410-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#2
COVER, THERMOSTAT
5VX-12413-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06557-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE 3
5VX-12578-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER 2
5GV-1246E-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
RADIATOR ASSY
5VX-12461-00-00
|
$594.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLOWER ASSY
5VX-12405-00-00
|
$467.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97307-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE
1AA-12535-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 4
5VX-12579-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#15
GROMMET
90480-15363-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-0614M-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RADIATOR COVER ASSY1
5VX-1240J-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. SOCKET BUTTON
90111-06031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, RADIATOR
5VX-12467-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-066H4-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, RADIATOR
4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOPPER
1KT-12437-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON
97007-05012-00
Superseded by 97017-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WITH WASHER
90119-06038-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95824-06030-00
Superseded by 95814-06030-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET 1
5VX-1244E-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
95824-06012-00
Superseded by 95814-06012-00
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE 6
5VX-12589-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-200A0-00
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE 1
5VX-1243A-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
HOSE, 4
5VX-1244G-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
CLAMP 1
5VX-12491-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE
95024-10020-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE CLAMP ASSY
90450-32001-00
Superseded by 90450-32003-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
