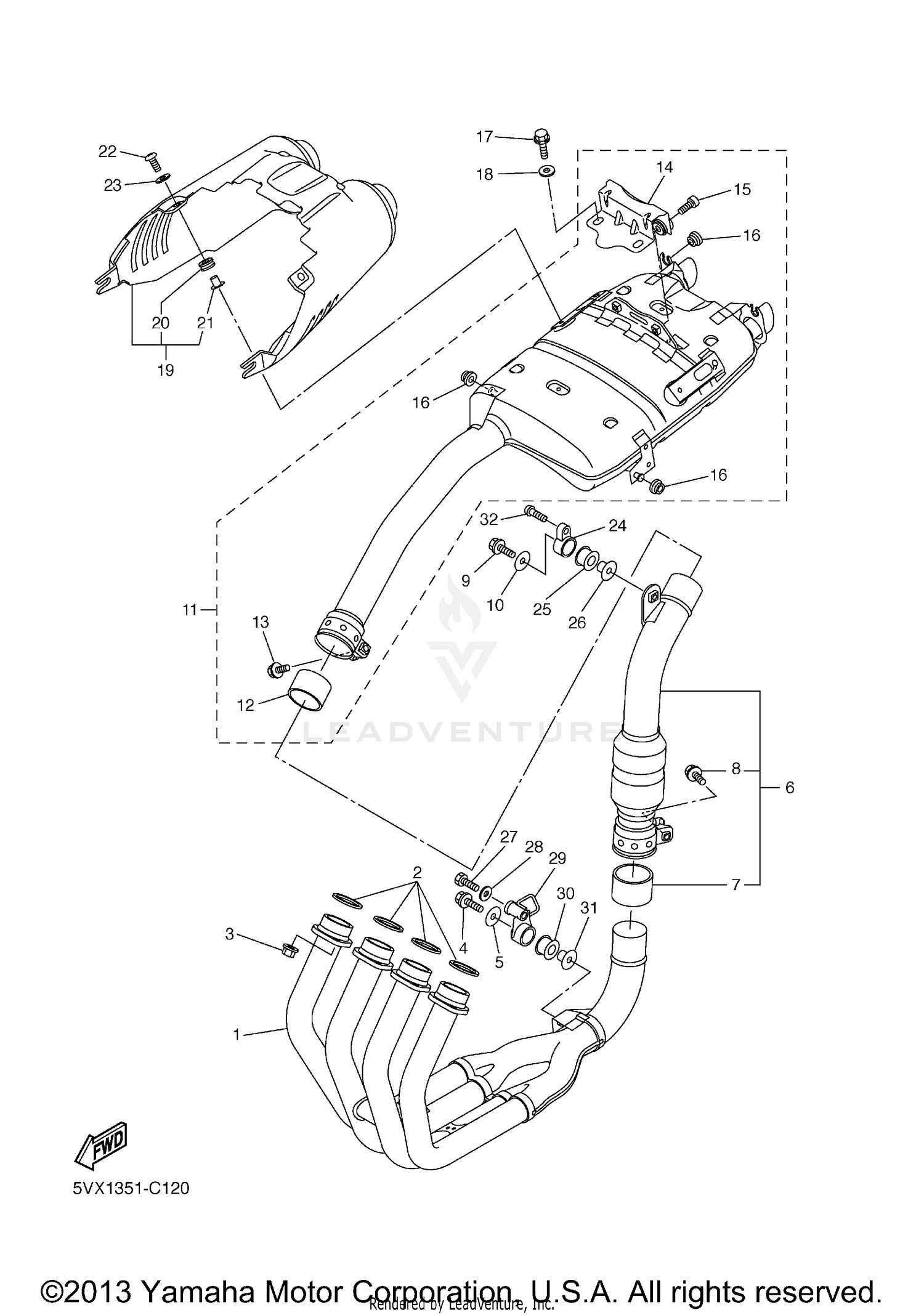

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE COMP.
5VX-14602-00-00
|
$803.75 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
3YF-14613-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-08612-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CATALYST ASSY.
5VX-14740-00-00
|
$431.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, MUFFLER
3XW-14714-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95814-08045-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95817-08035-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-08612-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
MUFFLER ASSY 1
5VX-14710-00-00
|
$557.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
5EB-14714-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95814-08045-00
|
$4.05 | ||
|
Unavailable |
|||
|
#14
BRACKET, SILENCER 3
5VX-1467K-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91317-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-10332-00
Superseded by 90480-10017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95817-08014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-086A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PROTECTOR ASSY
5VX-14708-10-00
|
$350.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-12006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-061N6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, BIND
98907-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PROTECTOR
4FB-14766-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY, MUFFLER 2
5VX-21446-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, MUFFLER
4XV-27424-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-082W9-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90109-082A1-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
STAY, MUFFLER 2
5VX-21446-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, MUFFLER
4XV-27424-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#31
COLLAR
90387-082W9-00
|
$11.49 | ||
|
Unavailable |
|||
|
#32
BOLT, BUTTON HEAD
92017-08045-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
