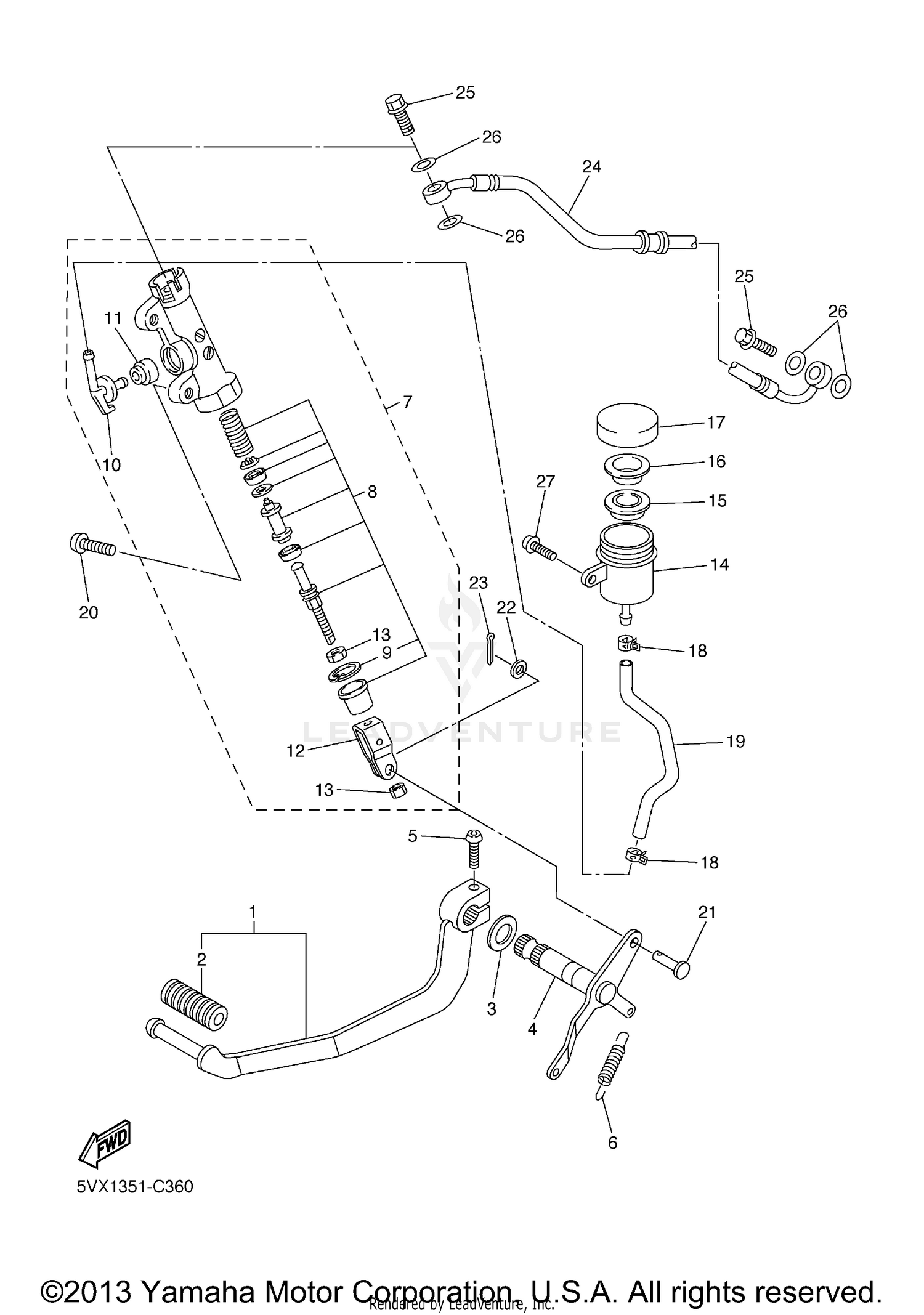

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5VX-27200-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SHIFT PEDAL
5EB-18113-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-14215-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, BRAKE PEDAL
5VX-27212-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92014-06020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-20223-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RR. MASTER CYLINDER ASSY.
5VX-2583V-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER KIT, MASTER
5VX-W0042-50-00
Superseded by 5VX-W0042-51-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
3LN-2585G-00-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT
5VX-2582A-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
4BP-2585F-00-00
Superseded by 4BP-2585F-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT
4BP-27222-01-00
Superseded by 4BP-27222-02-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-08010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TANK, RESERVOIR
5SL-25894-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM, RESERVOIR
5SL-25854-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, DIAPHRAGM
5SL-25855-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, RESERVOIR
5SL-25852-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-090A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, RESERVOIR
5VX-25895-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92014-08020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, CLEVIS
90240-08124-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-08083-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, BRAKE 5
5VX-2581K-01-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, UNION
90401-10159-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
