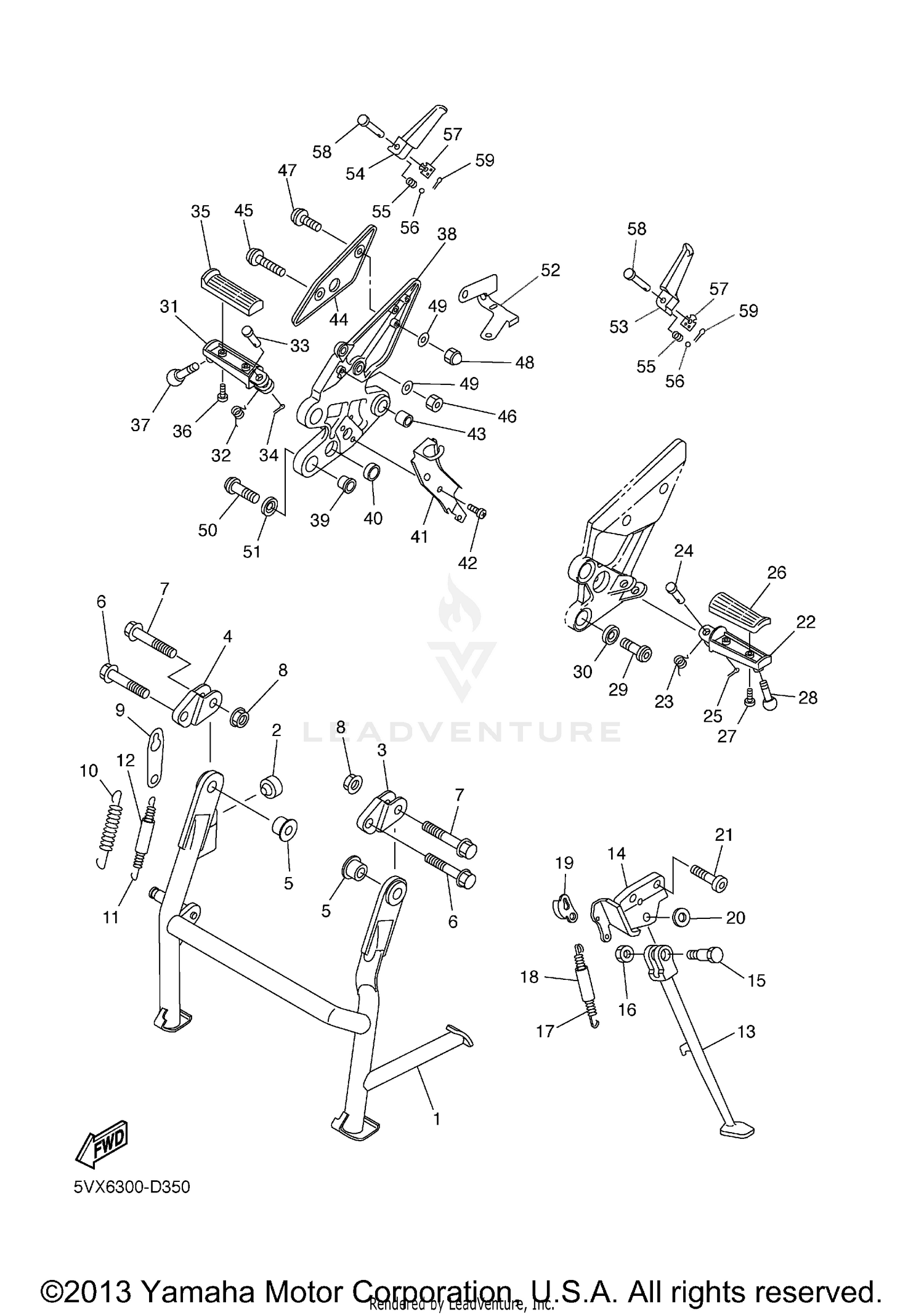

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
5VX-27111-03-00
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER, MAIN STAND
4GL-27114-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, MAIN STAND
5VX-27151-02-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, MAIN STAND 2
5VX-27152-02-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, MAIN STAND
5VX-27113-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-10088-00
Superseded by 90105-10083-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-10090-00
Superseded by 90105-10091-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, FLANGE
95707-10500-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
LINK, MAIN STAND
5VX-27115-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-50001-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TENSION
90506-26008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE (L60)
90445-170K9-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAND, SIDE
5VX-27311-01-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, SIDE STAND
5VX-27321-02-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-10011-00
Superseded by 90109-10012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TENSION
90506-23007-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, SIDE STAND
5VX-27351-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
LINK, SIDE STAND
5VX-27315-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-12021-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90110-10010-00
Superseded by 91317-10030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FOOTREST
4BH-27451-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TORSION
90508-20572-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, FOOTREST
3YX-27413-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90109-083E2-00
Superseded by 90109-08177-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90110-08220-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER
90209-08295-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
FOOTREST
4BH-27461-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, TORSION
90508-20572-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.10 | ||
|
Unavailable |
|||
|
#34
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#35
COVER, FOOTREST
3YX-27413-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
BOLT
90109-083E2-00
Superseded by 90109-08177-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
BRACKET 3
5VX-27443-10-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
DAMPER, FOOTREST 2
5VX-27424-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
STOPPER, MAIN STAND
5VX-27114-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
STAY, STOP SWITCH
5VX-2144G-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW
98507-06008-00
Superseded by 98517-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BUSH, FORMED
90383-14001-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLATE 2
5VX-27446-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, HEX. SOCKET BUTTON
90111-05007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, HEX. SOCKET BUTTON
90111-05003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, CROWN
90176-05001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, HEXAGON SOCKET HEAD
90110-08220-00
|
$6.49 | ||
|
Unavailable |
|||
|
#51
WASHER
90209-08295-00
|
$7.49 | ||
|
Unavailable |
|||
|
#52
HOLDER, BRAKE HOSE
5VX-2587A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
FOOTREST, REAR 1
3VR-27431-01-00
Superseded by 3VR-27431-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
FOOTREST, REAR 2
3VR-27441-01-00
Superseded by 3VR-27441-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#56
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
PIN, CLEVIS
90240-08063-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
