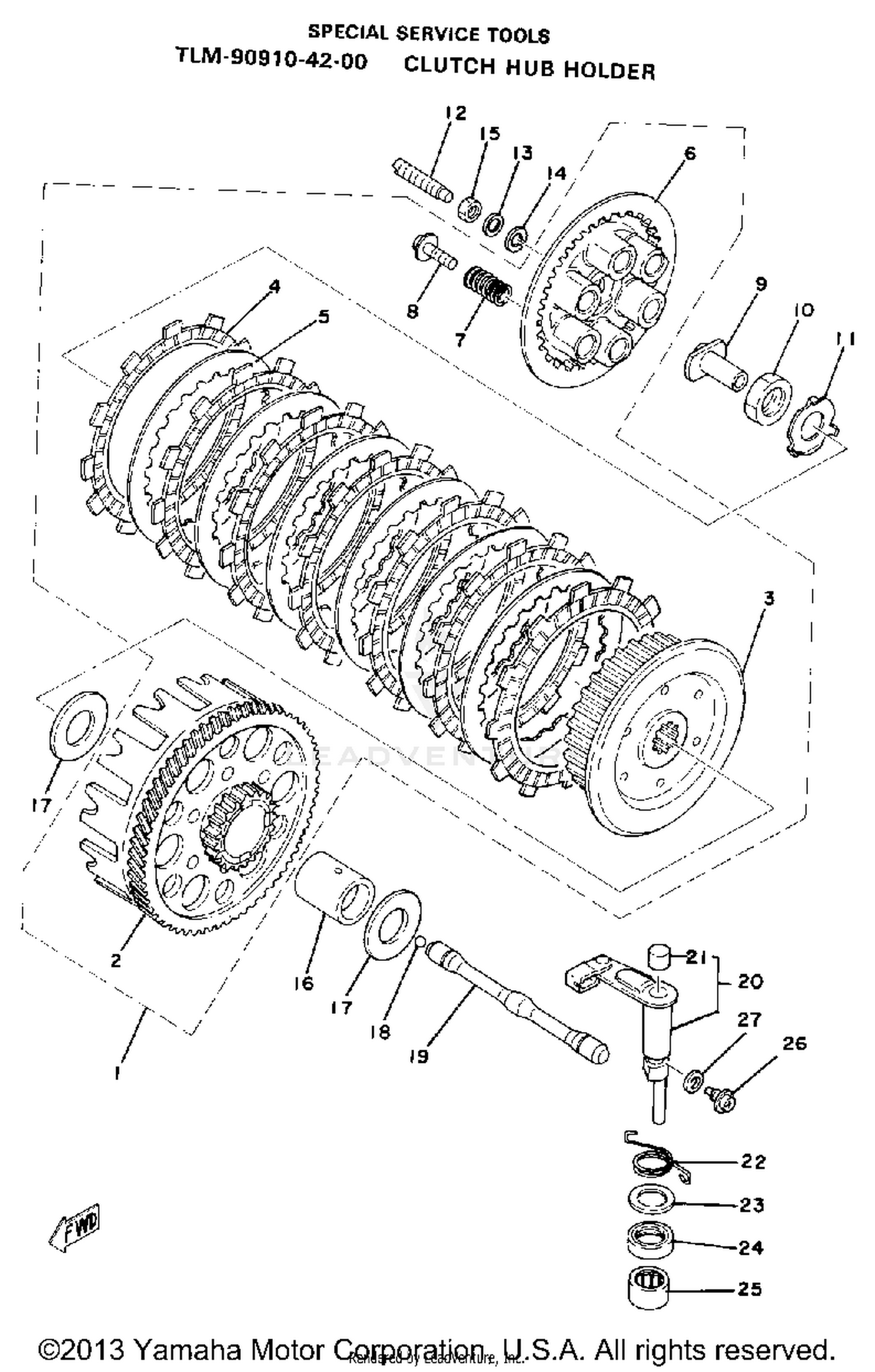

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
2X5-16300-00-00
|
$169.99 | ||
|
Unavailable |
|||
|
#2
PRI DRVN GEAR
2K7-16150-00-00
|
$156.99 | ||
|
Unavailable |
|||
|
#3
BOSS, CLUTCH
2X5-16371-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#4
PLATE, FRICTION
4H7-16321-01-00
Superseded by 4H7-16321-02-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH 2
360-16325-00-00
Superseded by 360-16325-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#6
PLATE, PRESSURE 1
1M1-16351-00-00
|
$17.38 | ||
|
Unavailable |
|||
|
#7
SPRING, COMPRESSION
90501-24408-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, PUSH 1
1M1-16356-00-00
|
$15.26 | ||
|
Unavailable |
|||
|
#10
NUT
90170-20195-00
Superseded by 90170-20255-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, LOCK
90215-20125-00
Superseded by 90215-20159-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SPECIAL SHAPE
90149-08105-00
|
$4.60 | ||
|
Unavailable |
|||
|
#13
WASHER,PLATE
90201-087H6-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95311-08700-00
Superseded by 95317-08700-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER 1
2K7-16181-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#17
PLATE, THRUST 1
2K7-16154-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93515-32029-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 2
1W4-16357-00-00
|
$19.08 | ||
|
Unavailable |
|||
|
#20
PUSH LEVER ASSEMBLY
2X4-16380-00-00
|
$34.82 | ||
|
Unavailable |
|||
|
#21
PLUG, BLIND
214-17481-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#22
SPRING, TORSION
90508-14373-00
|
$3.78 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-17327-00
Superseded by 90201-18262-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-17004-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, CYLINDRICAL
93315-21721-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, SPECIAL SHAPE
90149-08108-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90430-08069-00
Superseded by 90430-08204-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
