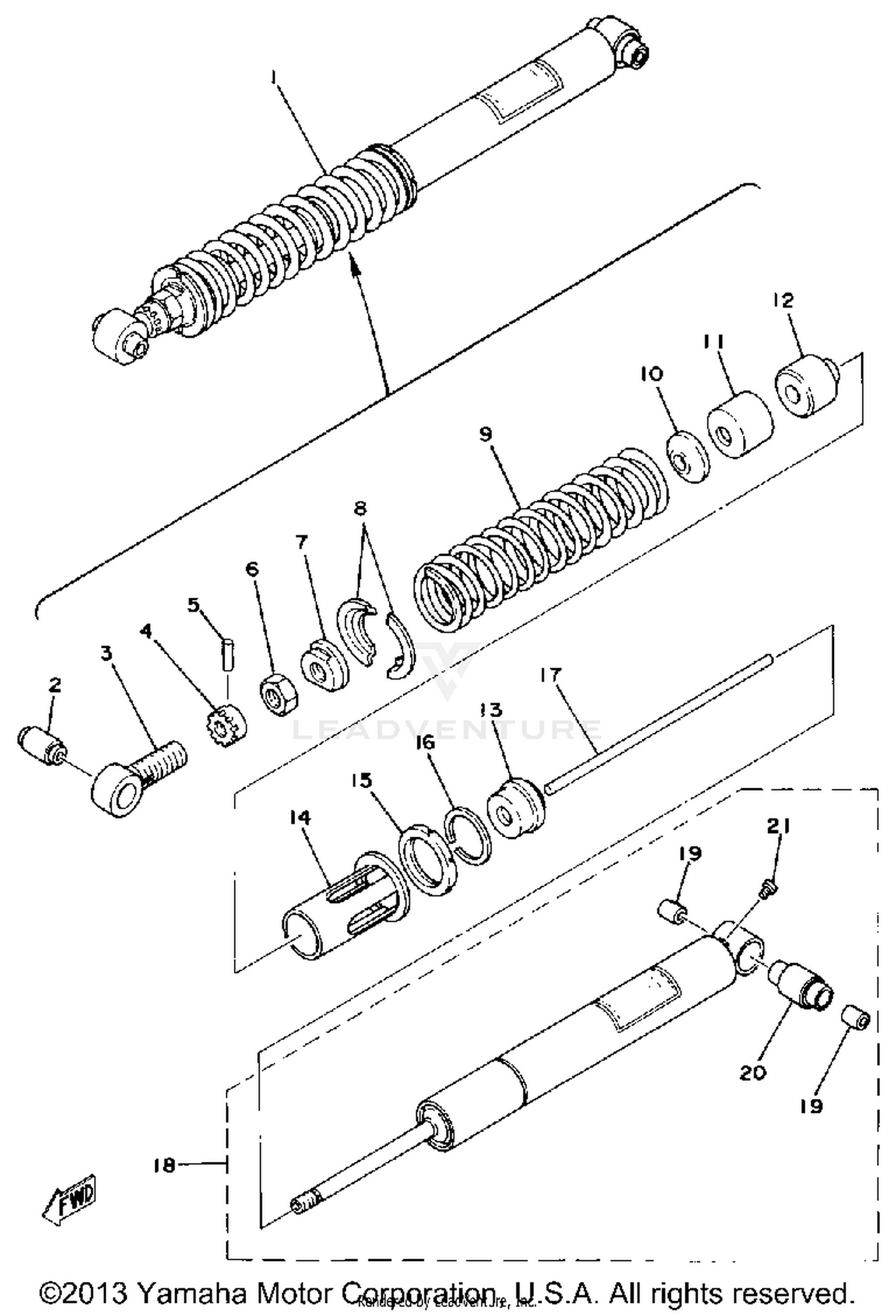

Rear Cushion Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
2X7-22210-00-00
|
$320.99 | ||
|
Unavailable |
|||
|
#2
BUSH, REAR SHOCK ABSORBER
1YW-22216-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, UPPER
1W1-22219-00-00
|
$23.42 | ||
|
Unavailable |
|||
|
#4
NUT, ADJUSTING
1W1-22497-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#5
PIN, DOWEL
93604-26132-00
|
$2.00 | ||
|
Unavailable |
|||
|
#6
NUT
90170-20320-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT, SPRING UPPER
2K6-22213-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#8
GUIDE, SPRING 1
2K6-22214-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#9
SPRING, COMPRESSION
90501-99539-00
|
$42.30 | ||
|
Unavailable |
|||
|
#
SPRING, COMPRESSION
90501-98538-00
|
$40.52 | ||
|
Unavailable |
|||
|
#
SPRING, COMPRESSION
90501-99551-00
|
$49.49 | ||
|
Unavailable |
|||
|
#10
SUPPORT, BUMP STOP
2W6-22228-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#11
COVER
1W1-22221-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#12
BUMP, STOP
2W6-22493-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#13
CAP, CASE
1W1-22472-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#14
GUIDE, SPRING 2
1W1-22224-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING LOWER
1W1-22223-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#16
CIRCLIP, OUTER
93440-50058-00
|
$1.83 | ||
|
Unavailable |
|||
|
#17
ROD, PUSH
2W6-22489-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#18
DAMPER SUB-ASSEMBLY.
2X7-22401-00-00
|
$187.99 | ||
|
Unavailable |
|||
|
#19
BUSH, SOLID
90380-12051-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSH, SHOCK ABS LWR
1W1-22226-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
