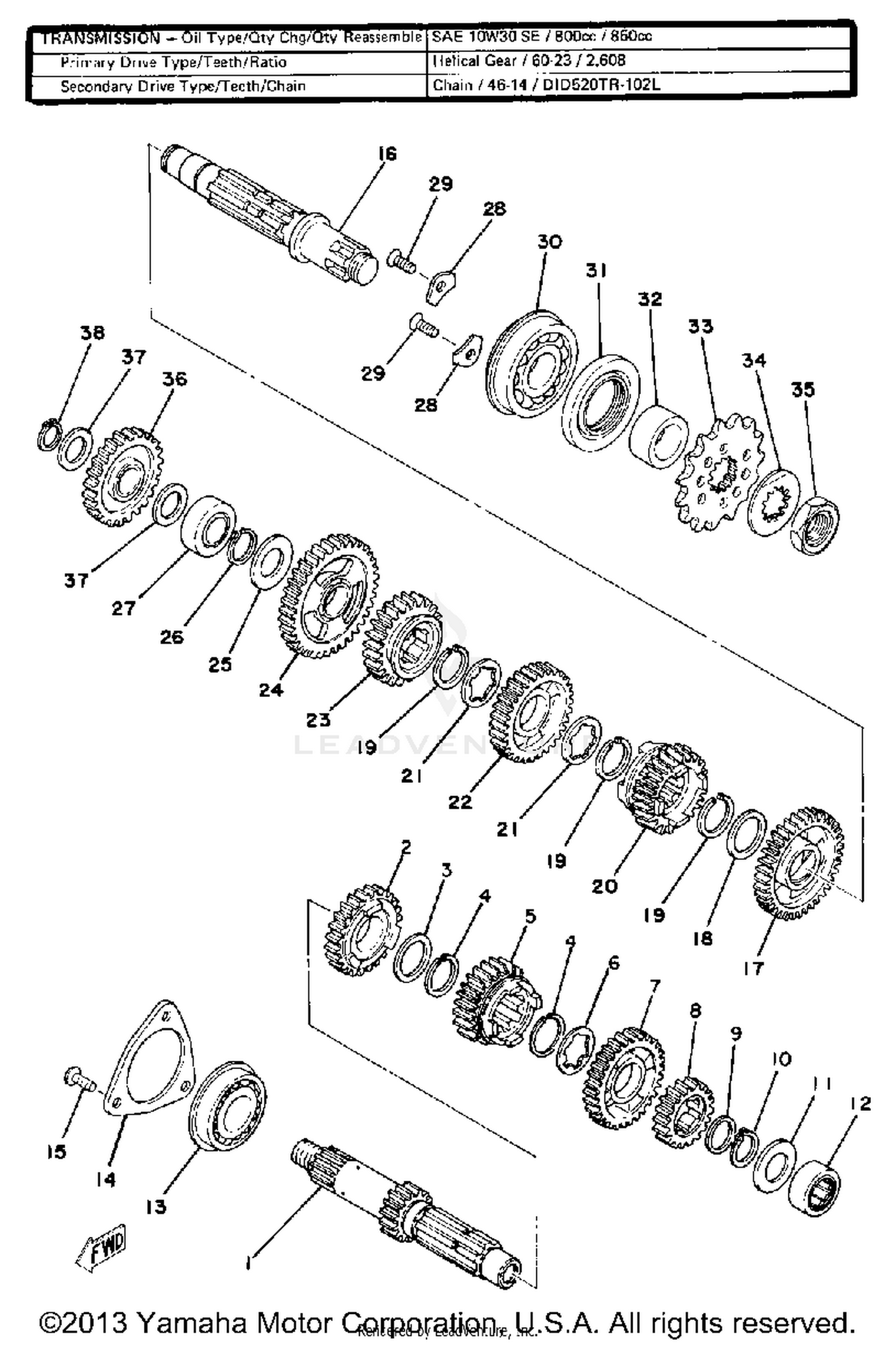

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
2X8-17411-00-00
|
$57.18 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
2X8-17141-00-00
|
$65.88 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
2X5-17131-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#6
WASHER (T=0.5)
90209-22082-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH PINION
2X8-17151-01-00
|
$58.99 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
2X5-17121-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-20613-00
|
$3.90 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
93410-20038-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-20278-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CYLINDRICAL
93311-62035-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING (93306-20515)
93306-20535-00
|
$20.99 | ||
|
Unavailable |
|||
|
#14
PLATE, BRNG COVER
1W4-15383-00-00
Superseded by 363-15383-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#16
AXLE, DRIVE
2X5-17421-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 2ND WHEEL
2X5-17221-00-00
|
$156.99 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
GEAR, 5TH WHEEL
2X8-17251-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#21
WASHER (T=0.5)
90209-22082-00
|
$9.99 | ||
|
Unavailable |
|||
|
#22
GEAR, 3RD WHEEL
2X5-17231-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#23
GEAR, 4TH WHEEL
2X8-17241-00-00
|
$38.38 | ||
|
Unavailable |
|||
|
#24
GEAR, 1ST WHEEL
2X8-17211-00-00
|
$41.08 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-20278-00
|
$9.99 | ||
|
Unavailable |
|||
|
#26
CIRCLIP
93410-20038-00
|
$3.69 | ||
|
Unavailable |
|||
|
#27
BEARING, CYLINDRICAL
93311-62035-00
|
$55.99 | ||
|
Unavailable |
|||
|
#28
PLATE, BEARING COVER
2K7-15383-00-00
Superseded by 4XM-15383-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#30
BEARING
93304-20501-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93102-32M07-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-25663-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRIVE
93834-15078-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
93834-14051-00
|
$15.65 | ||
|
Unavailable |
|||
|
#
SPROCKET,DRIVE 13T
93834-13030-00
Superseded by 93834-13206-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK
90215-21239-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
90179-20255-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
GEAR, KICK IDLE
3R4-15651-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
90201-17545-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP
99009-17400-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
