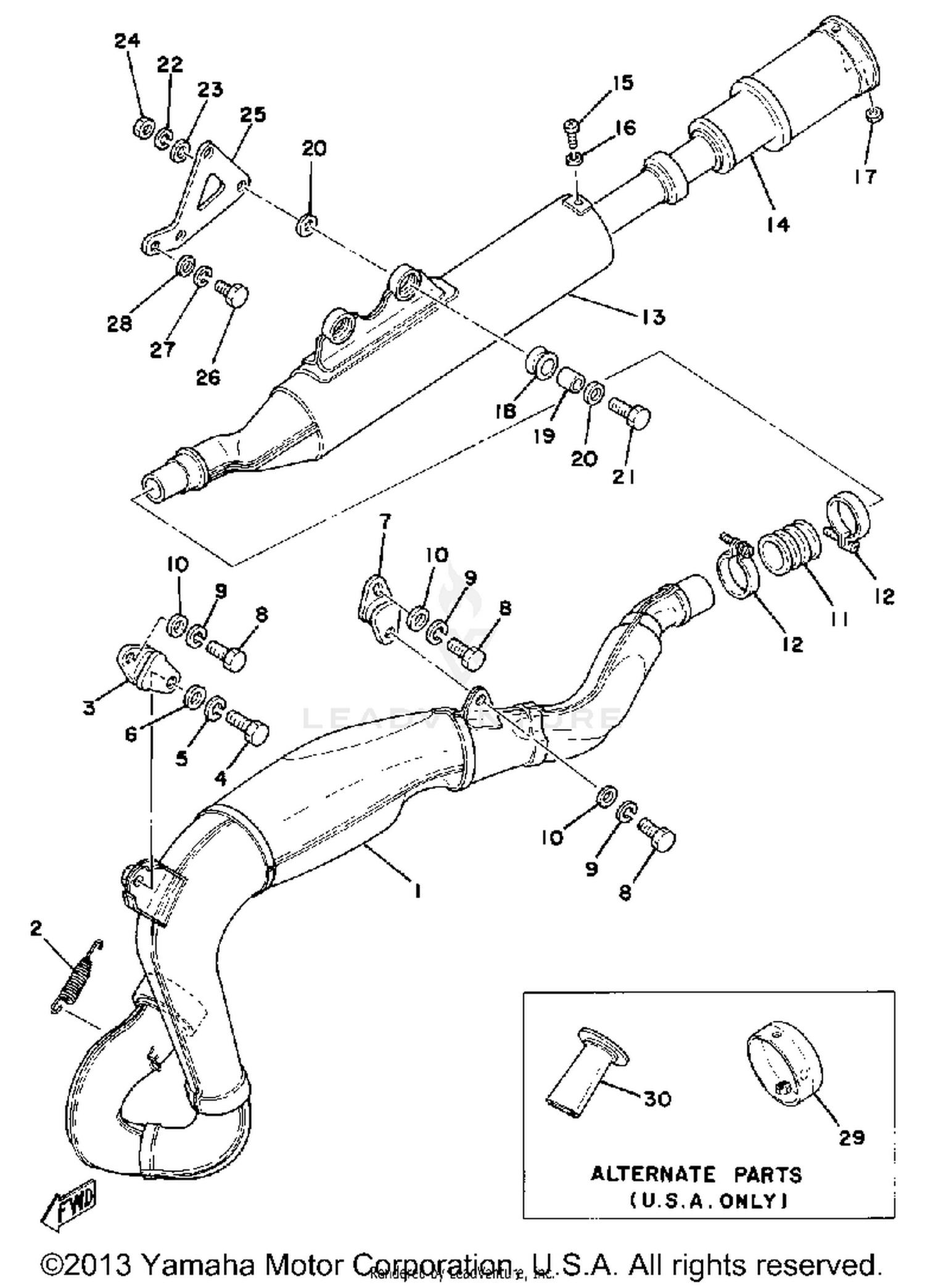

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
2X8-14610-01-00
|
$217.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90507-20030-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, MUFFLER 2
483-14781-02-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$18.49 | ||
|
Unavailable |
|||
|
#8
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER
1M1-14714-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SILENCER, EXHAUST
2X7-14753-00-00
|
$77.85 | ||
|
Unavailable |
|||
|
#14
PIPE, OUTLET
2X8-14752-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, MUFFLER
565-14747-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-08258-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, MUFFLER 2
1W6-14781-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#29
CAP, SILENCER
2X7-14787-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#30
PIPE, CHOKE
2X8-14634-00-00
|
$12.30 | ||
|
Unavailable |
|||
