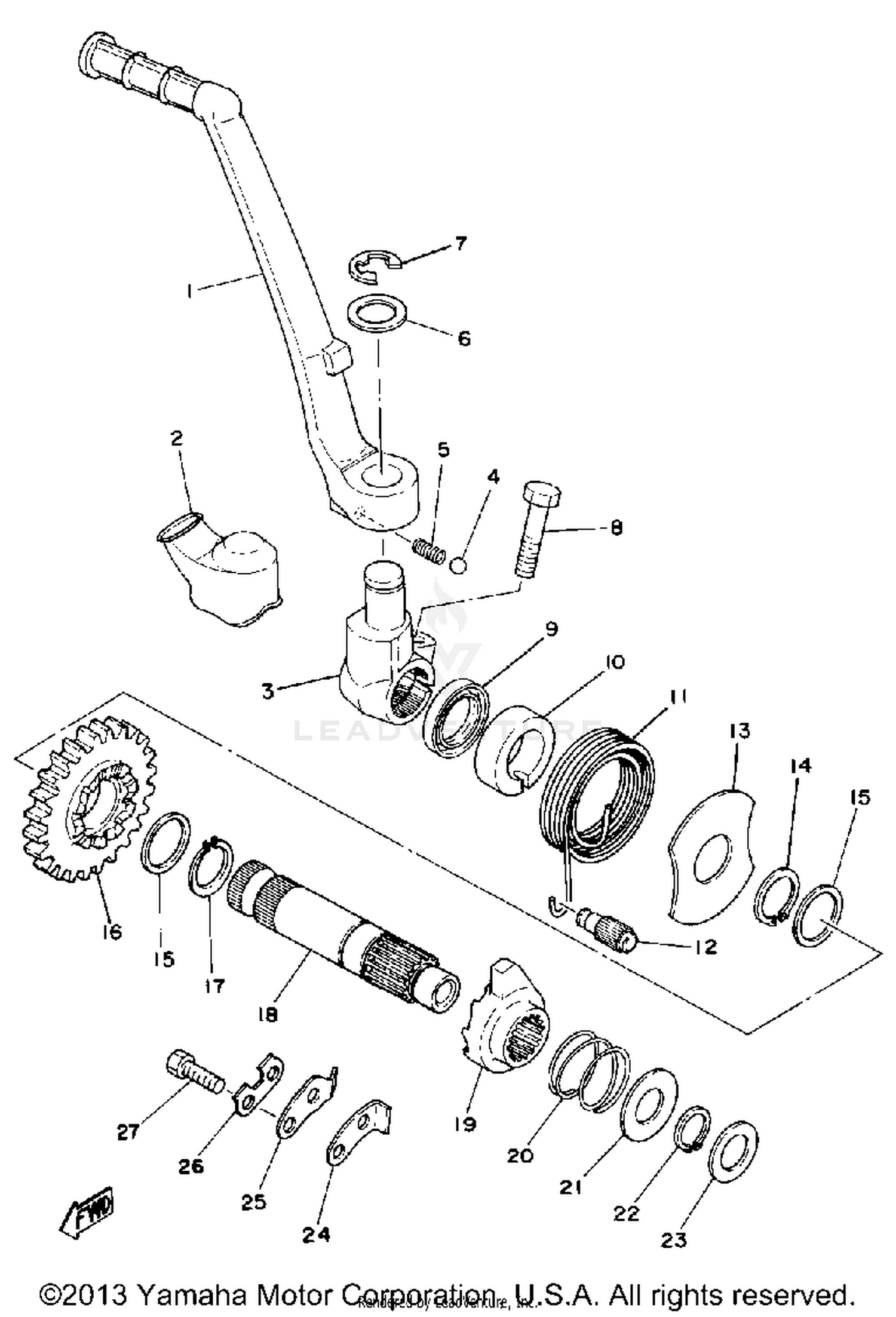

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANK, KICK (2K7-15611-00-33)
2K7-15611-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#2
COVER, KICK LEVER
2K7-15618-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#3
BOSS, KICK CRANK
2K7-15621-00-00
Superseded by 583-15621-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL
93507-32031-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-12081-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE (1.5T)
90201-15234-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99006-10600-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-20309-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SPRING
3Y6-15664-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TORSION (291-15665-00)
90508-32061-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER
248-15668-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SPRING
2K7-15676-00-00
Superseded by 278-15676-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99009-20400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE (T=0.5)
90201-20685-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, KICK
2K7-15641-01-00
|
$35.38 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
93410-20038-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
AXLE, KICK
2K7-15661-01-00
|
$33.74 | ||
|
Unavailable |
|||
|
#19
WHEEL, RATCHET
2K7-15671-01-00
|
$40.99 | ||
|
Unavailable |
|||
|
#20
SPRING, COMPRESSION
90501-16107-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-155K6-00
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
99009-15400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM
132-15644-00-00
|
$4.58 | ||
|
Unavailable |
|||
|
#24
STOPPER
2NX-15668-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUIDE, RATCHET WHEEL
2NX-15674-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, LOCK
214-15686-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
