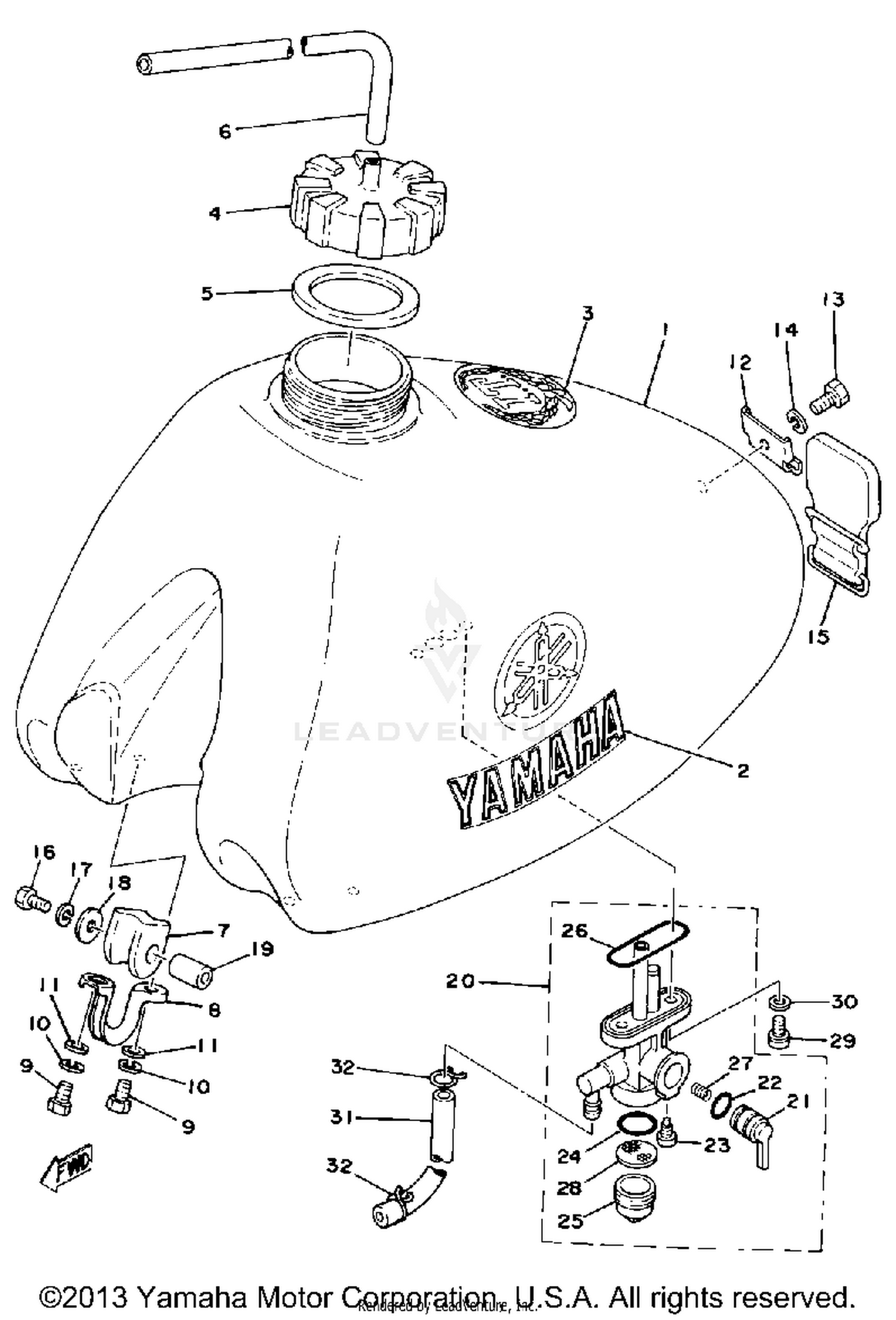

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1W6-24110-00-00
|
$275.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM 1
2W6-24161-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#3
EMBLEM 2
1W2-24162-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
BODY, CAP
1K7-24611-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#5
GASKET, CAP
1K7-24612-02-00
Superseded by 3R9-24612-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#6
HOSE (L540)
90445-09361-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 2
1W1-24182-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, DAMPER
1W1-24144-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#9
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, FUEL TNK 2
1W1-24192-00-00
|
$6.90 | ||
|
Unavailable |
|||
|
#13
BOLT
97013-06012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
BAND, TNK FITTING 1
1W1-24173-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#16
BOLT, HEXAGON
97013-06035-00
Superseded by 97014-06035-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, LEVER 1
90387-07393-00
Superseded by 36Y-83913-01-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUEL COCK ASSEMBLY 1
3R9-24500-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#21
LEVER, COCK
2W6-24524-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#22
GASKET
2N3-24528-00-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, LVR FITTING
2N3-24535-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#24
GASKET
357-24522-10-00
|
$8.99 | ||
|
Unavailable |
|||
|
#25
CUP, FILTER
357-24521-10-00
|
$5.44 | ||
|
Unavailable |
|||
|
#26
O-RING
2W6-24512-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING
2W6-24529-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#28
NET, FILTER
2W6-24561-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#29
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE (L)
90445-11182-00
Superseded by 90445-112E1-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
