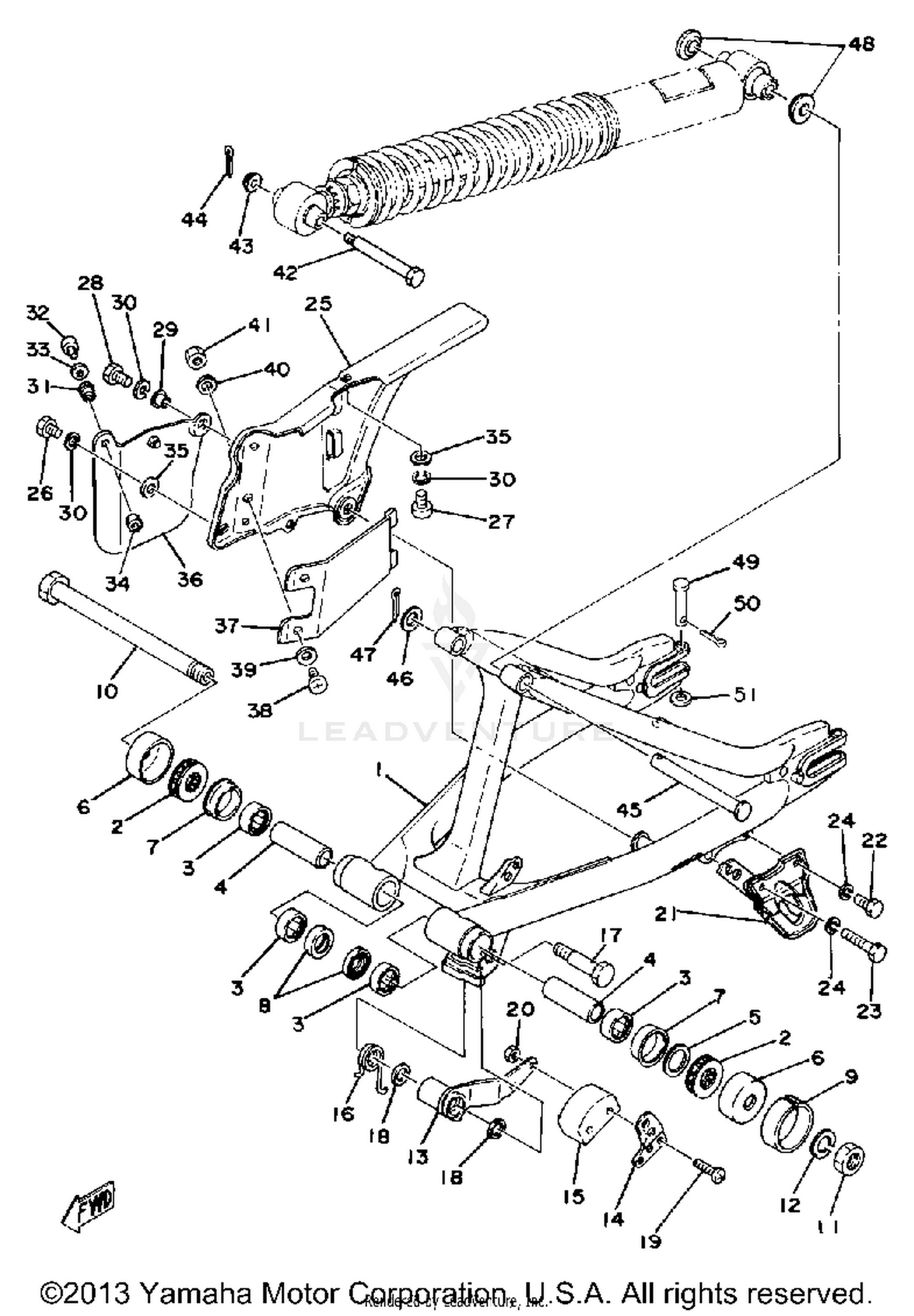

Rear Arm-chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
2X7-22110-00-33
|
$197.99 | ||
|
Unavailable |
|||
|
#2
BEARING, FLAT #42
93342-22205-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CYLINDER.#17
93317-22214-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, SOLID
90380-16056-00
|
$26.99 | ||
|
Unavailable |
|||
|
#5
SHIM
648-45533-00-03
Superseded by 90201-22284-04
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 2
2X4-22129-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#7
OIL SEAL (35-41-8)
93108-35004-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL, SDO-TYPE
93109-22018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
431-22151-03-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PIVOT
1W4-22141-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#11
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, TENSIONER
1W6-22179-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#14
GUIDE, CHAIN
1W1-22187-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
|
$9.45 | ||
|
Unavailable |
|||
|
#16
SPRING, TORSION
90508-35350-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (90109-10533-00)
90109-10483-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93104-14044-00
Superseded by 93109-14021-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUARD, CHAIN
2W6-22153-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#22
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON W/W
97313-06055-00
Superseded by 97E95-06555-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
CASE, CHAIN
2X7-22311-00-00
|
$40.00 | ||
|
Unavailable |
|||
|
#26
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#31
COLLAR
90387-062M9-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#36
RUBBER, CHAIN CASE
2X7-22313-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#37
GUARD, CHAIN
1W6-22318-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#38
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U
95601-05100-00
Superseded by 95617-05100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
90109-08480-00
|
$9.55 | ||
|
Unavailable |
|||
|
#43
NUT, SPEC''L SHAPE
90179-08243-00
|
$4.70 | ||
|
Unavailable |
|||
|
#44
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN, CLEVIS
90240-12060-00
Superseded by 90240-12059-00
|
$9.99 | ||
|
Unavailable |
|||
|
#46
WASHER, PLATE
92990-12600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
COVER, THRUST 1
1W1-22128-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
PIN
91701-08042-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
