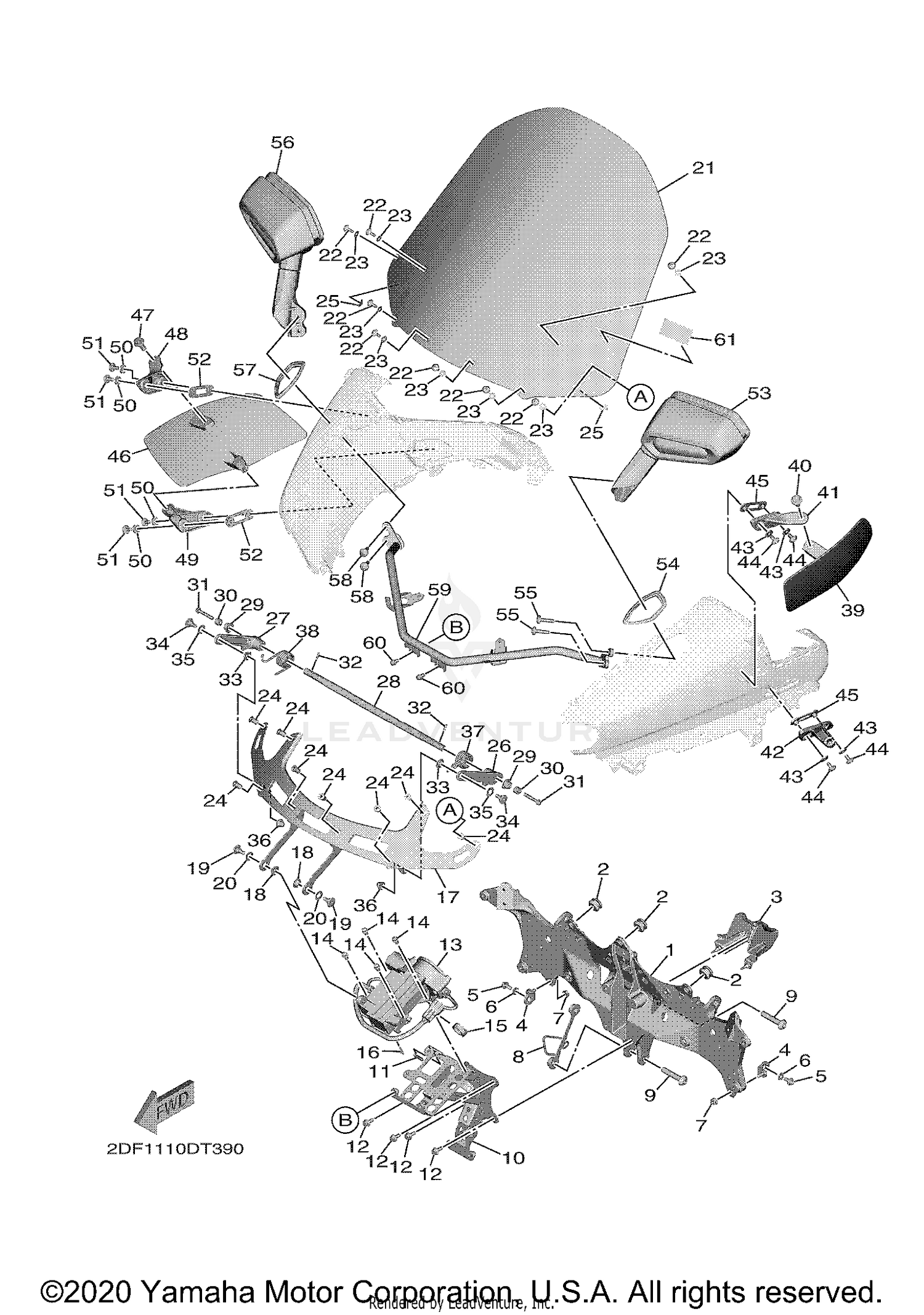

Cowling 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY 1
2DF-28356-00-00
|
$387.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-09M21-00
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER 3
2DF-28239-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, SIDE 1
2DF-2831U-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-06108-00
Superseded by 90110-06107-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE
90179-06075-00
Superseded by 95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
2DF-28336-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. SOCKET BUTTON
90111-10054-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, LEG SHIELD
2DF-28332-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
1UF-15379-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE DEEP RECESS
95D32-06014-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRIVE UNIT ASSY
2DF-83306-00-00
|
$406.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-20181-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90465-10098-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY 2
2DF-28322-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
5JW-28329-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, COWLING
2DF-28374-10-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90202-10044-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
WINDSHIELD
2DF-28381-00-00
|
$448.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. SOCKET BUTTON
90111-05051-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, PLATE
90520-01001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
LINK 1
2DF-2833C-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
LINK 2
2DF-2833D-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LINK 3
2DF-2833P-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH, SOLID
90381-12003-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-06330-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (SMALL HEAD)
95024-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, SPRING
91690-30012-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPACER
5JW-28329-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#34
BOLT, COWLING
2DF-28374-10-00
|
$2.20 | ||
|
Unavailable |
|||
|
#35
WASHER, PLATE
90202-10044-00
|
$3.10 | ||
|
Unavailable |
|||
|
#36
NUT, CROWN
90176-06082-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, TORSION
90508-35020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, TORSION
90508-35018-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
VISOR, SIDE 1
2DF-2830C-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
RIVET
90269-10006-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#41
BRACKET
2DF-28367-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BRACKET 11
2DF-2833H-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-064J1-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, HEX. SOCKET BUTTON
90111-06101-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET 6
2DF-2836J-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
VISOR, SIDE 2
2DF-2830D-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
RIVET
90269-10006-00
|
$2.05 | ||
|
Unavailable |
|||
|
#48
BRACKET
2DF-28366-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BRACKET 12
2DF-2833J-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, PLATE
90201-064J1-00
|
$4.45 | ||
|
Unavailable |
|||
|
#51
BOLT, HEX. SOCKET BUTTON
90111-06101-00
|
$6.49 | ||
|
Unavailable |
|||
|
#52
BRACKET 6
2DF-2836J-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#53
REAR VIEW MIRROR ASSY (LEFT)
2DF-26280-00-P0
|
$312.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
REAR VIEW MIRROR ASSY (LEFT)
2DF-26280-00-P2
|
$232.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BASE, MIRROR (LEFT)
2DF-2628N-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT
90109-06031-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#56
REAR VIEW MIRROR ASSY (RIGHT)
2DF-26290-00-P0
|
$311.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
REAR VIEW MIRROR ASSY (RIGHT)
2DF-26290-00-P2
|
$231.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BASE, MIRROR (RIGHT)
2DF-2628R-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT
90109-06031-00
|
$2.70 | ||
|
Unavailable |
|||
|
#59
STAY, MIRROR 1
2DF-2831W-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#61
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
