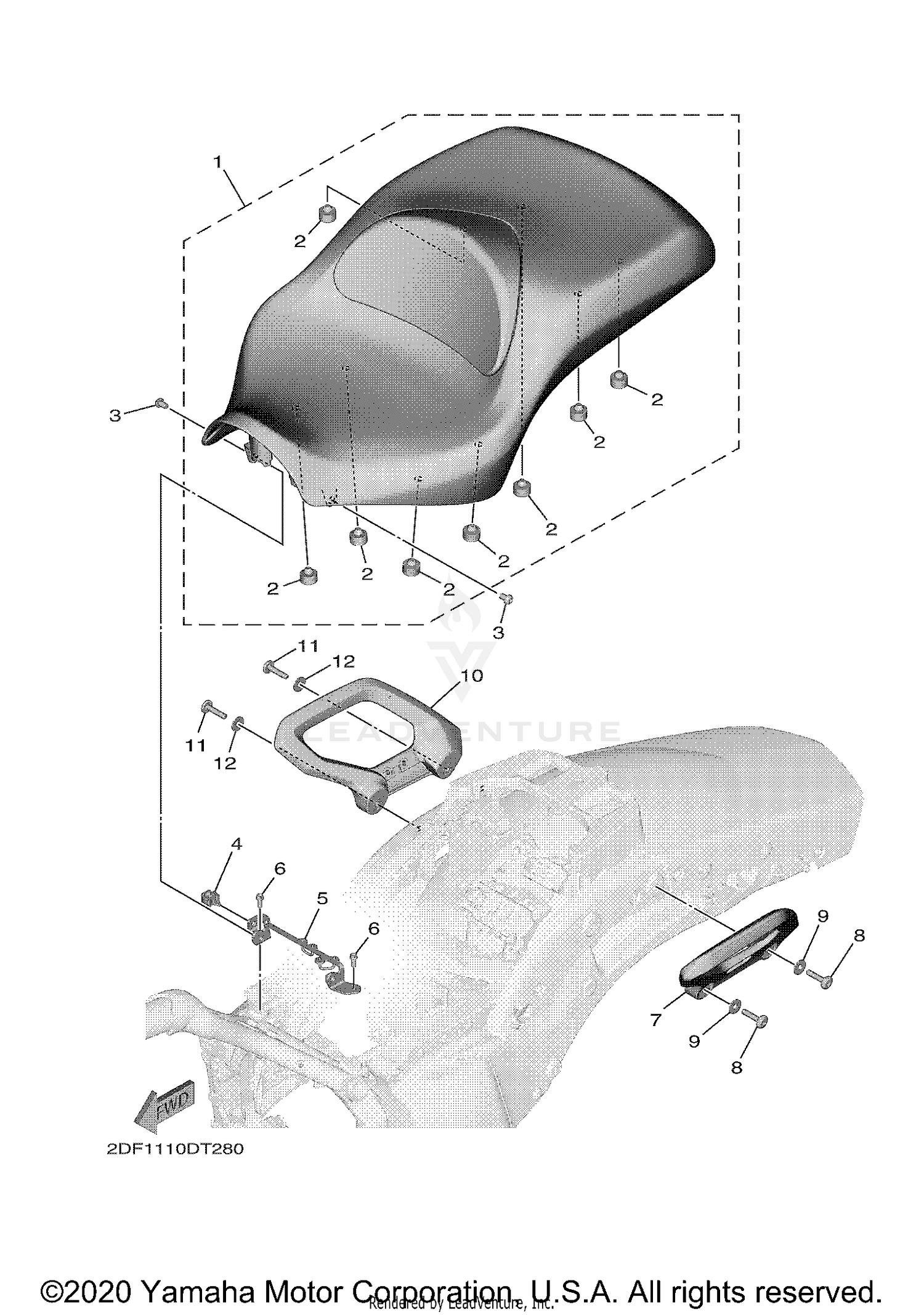

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
2DF-F4730-10-00
|
$729.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, SEAT
2DF-F4723-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BUTTON HEAD
92017-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
90464-12M58-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT 1
2DF-21341-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASSIST, GRIP
2DF-2474A-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-08244-00
Superseded by 90109-08245-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-086A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASSIST,GRIP 2
2DF-2474W-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-08244-00
Superseded by 90109-08245-00
|
$3.00 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-086A3-00
|
$7.49 | ||
|
Unavailable |
|||
