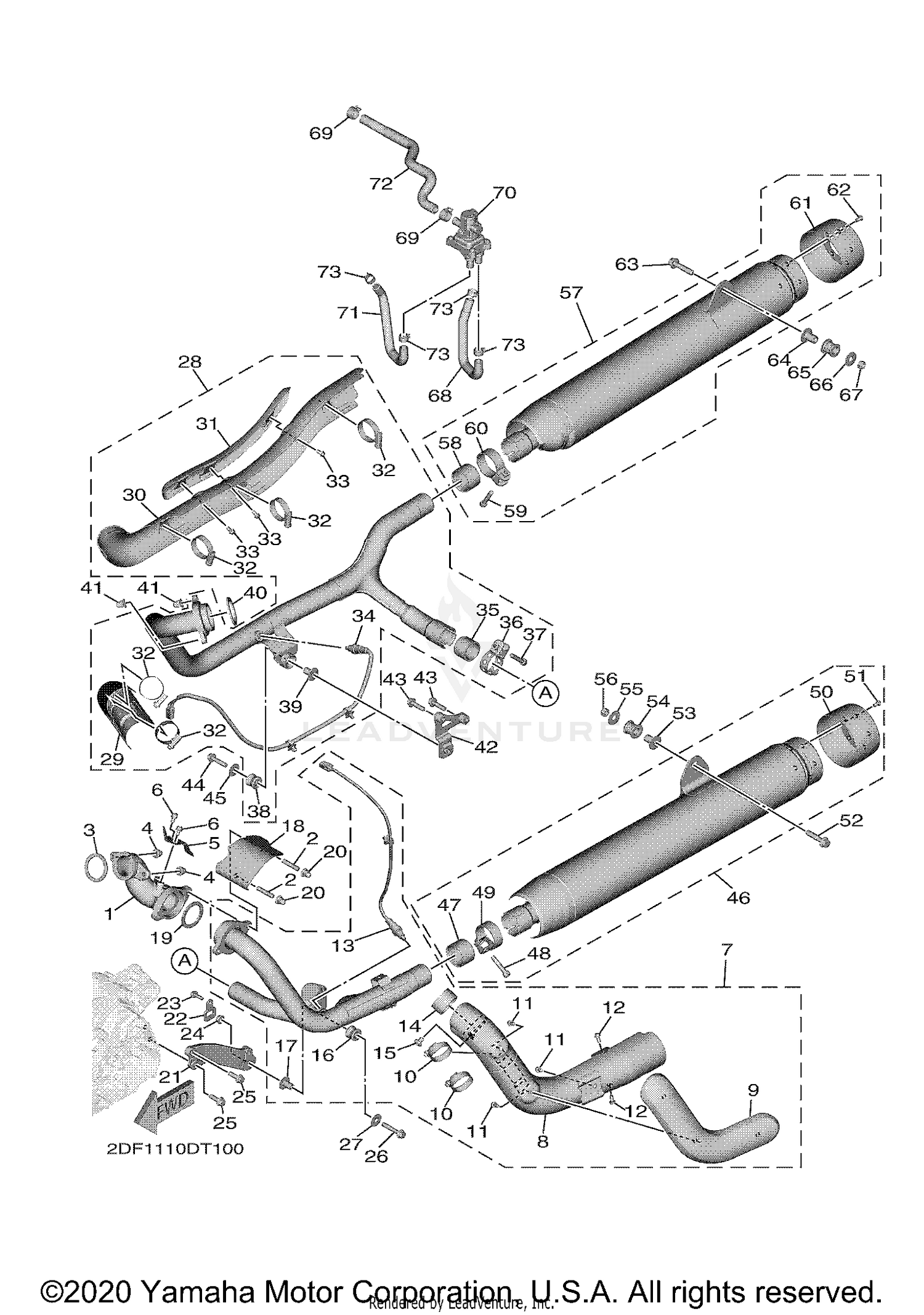

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EXHAUST 1
2DF-14615-00-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, STUD
95612-08625-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EXHAUST PIPE
3EG-14613-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-08097-00
Superseded by 90185-08146-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, SILENCER 4
2DF-1468X-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WITH WASHER
90119-06115-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
EXHAUST PIPE ASSY 1
2DF-14610-00-00
|
$621.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, MUFFLER 1
2DF-14718-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, MUFFLER 2
2DF-14728-00-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-45001-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (SMALL HEAD)
95024-06012-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR, OXYGEN
2DF-8592A-00-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, MUFFLER
1D7-14714-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. SOCKET BUTTON
90111-08086-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, MUFFLER
5VY-14747-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, EXHAUST
2DF-14624-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, EXHAUST PIPE
3EG-14613-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#20
NUT, CROWN
90176-08006-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, 5
2DF-1478K-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, 4-1
2DF-1464L-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-06127-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, WITH WASHER
95702-08500-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95812-08025-00
Superseded by 95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95812-08045-00
Superseded by 95814-08045-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-08061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
EXHAUST PIPE ASSY 2
2DF-14620-00-00
Superseded by 2DF-14620-01-00
|
$674.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PROTECTOR, MUFFLER 3
2DF-14738-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PROTECTOR, MUFFLER 4
2DF-14748-00-00
|
$347.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PROTECTOR, SILENCER
2DF-14758-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE CLAMP ASSY
90450-45001-00
|
$19.99 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
SENSOR, OXYGEN
2DF-8592A-10-00
Superseded by 2DF-8592A-30-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, SILENCER
19D-14755-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BAND, MUFFLER
2DF-14725-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
91312-08040-00
Superseded by 91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER, MUFFLER
5VY-14747-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#39
COLLAR
90387-08021-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
GASKET, EXHAUST PIPE
3EG-14613-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#41
NUT, CROWN
90176-08006-00
|
$3.30 | ||
|
Unavailable |
|||
|
#42
STAY, EXHAUST PIPE 2
2DF-14649-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95817-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
95812-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLATE
90201-08061-00
|
$7.49 | ||
|
Unavailable |
|||
|
#46
MUFFLER ASSY 1
2DF-14710-00-00
|
$576.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
GASKET, SILENCER
B71-14755-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, HEXAGON SOCKET HEAD
90110-08112-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#49
BAND, MUFFLER
2DF-14715-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
CAP
2DF-14799-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT,HEX. SOCKET BUTTON
90111-06166-00
|
|||
|
Unavailable |
|||
|
#52
BOLT, FLANGE
95812-10045-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#53
COLLAR
90387-10636-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
DAMPER, MUFFLER
2DF-14747-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#55
WASHER, PLATE
90201-10043-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#56
NUT, U
95602-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
MUFFLER ASSY 2
2DF-14720-00-00
|
$839.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
GASKET, SILENCER
B71-14755-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#59
BOLT, HEXAGON SOCKET HEAD
90110-08112-00
|
$2.10 | ||
|
Unavailable |
|||
|
#60
BAND, MUFFLER
5S7-14715-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
CAP
2DF-14799-00-00
|
$107.99 | ||
|
Unavailable |
|||
|
#62
BOLT,HEX. SOCKET BUTTON
90111-06166-00
|
|||
|
Unavailable |
|||
|
#63
BOLT, FLANGE
95812-10045-00
|
$3.95 | ||
|
Unavailable |
|||
|
#64
COLLAR
90387-10636-00
|
$13.99 | ||
|
Unavailable |
|||
|
#65
DAMPER, MUFFLER
2DF-14747-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#66
WASHER, PLATE
90201-10043-00
|
$2.10 | ||
|
Unavailable |
|||
|
#67
NUT, U
95602-10100-00
|
$6.49 | ||
|
Unavailable |
|||
|
#68
HOSE, BEND 1
2DF-14881-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
CLIP
90467-17003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
AIR INDUCTION SYSTEM ASSY
2DF-14803-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
HOSE, BEND 2
2DF-14882-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
HOSE, BEND 3
2DF-14883-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
CLIP
90468-08104-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
