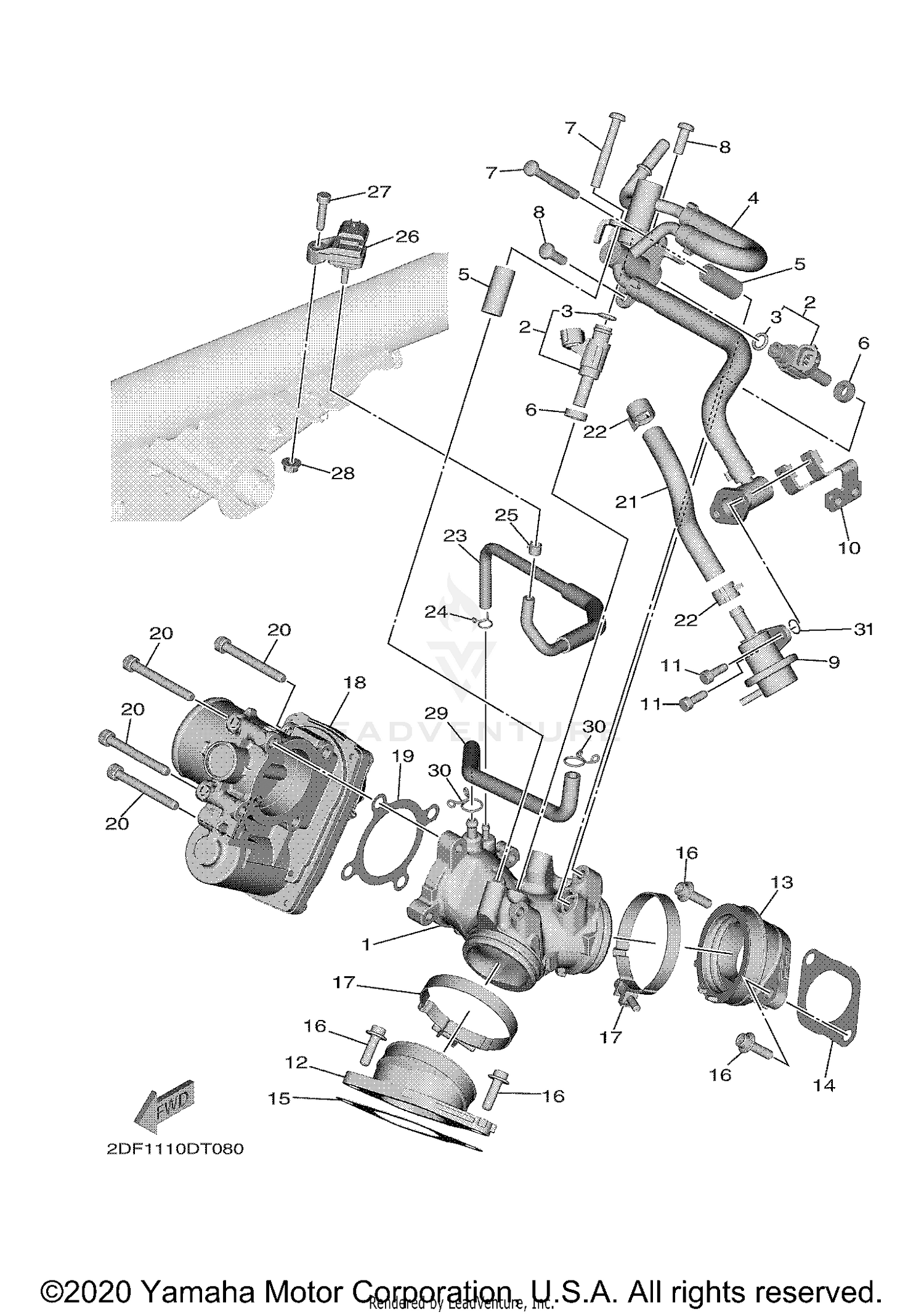

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MANIFOLD
2DF-13640-00-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INJECTOR
2DF-13761-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
68V-1416A-00-00
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE INLET ASSEMBLY
2DF-13930-00-00
|
$283.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
2DF-13716-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, MANIFOLD
8FP-13556-10-00
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98502-06045-00
Superseded by 98504-06045-00
|
$1.10 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98502-06016-00
Superseded by 98580-06016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
REGULATOR, PRESSURE
5C7-13906-00-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET 1
2DF-14291-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91312-05014-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, CARBURETOR 1
2DF-13586-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT, CARBURETOR 2
2DF-13596-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
2DF-14457-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL
2DF-14467-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-06348-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-62004-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
THROTTLE BODY ASSY
2DF-13750-00-00
|
$416.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL
2DF-14452-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
91312-06050-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE 5
2DF-24315-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-12003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, VACUUM SENSING 1
2DF-13542-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-07093-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
SENSOR, PRESSURE
1WS-82380-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
91312-05020-00
Superseded by 91317-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, WITH WASHER
95702-05500-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE
2DF-14465-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
5S7-13769-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
