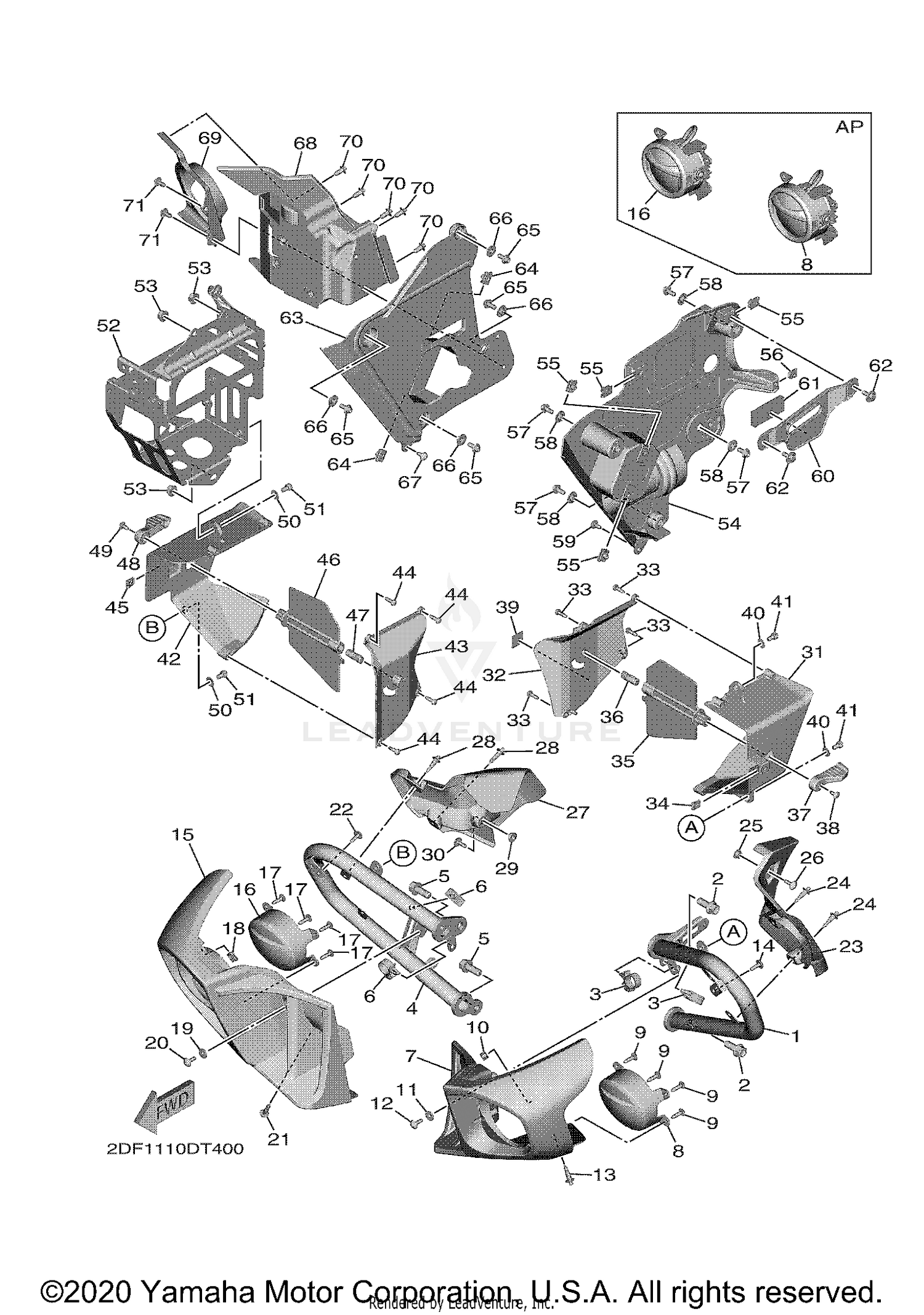

Cowling 4 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, ENGINE 1
2DF-28418-00-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE DEEP RE
90105-10475-00
Superseded by 95D37-10025-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
90464-16006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUARD, ENGINE 2
2DF-28419-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE DEEP RE
90105-10475-00
Superseded by 95D37-10025-00
|
$1.85 | ||
|
Unavailable |
|||
|
#6
CLAMP
90464-16006-00
|
$8.49 | ||
|
Unavailable |
|||
|
#7
BODY, FRONT UNDER 1
2DF-2835J-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP
2DF-28349-00-00
Superseded by 2DF-28349-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#8
FOG LIGHT ASSY
2DF-85450-00-00
|
$215.99 | ||
|
Unavailable |
|||
|
#9
SCREW, TAPPING
97702-50020-00
Superseded by 90167-05078-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-054K4-00
Superseded by 90201-05556-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-05055-00
Superseded by 90111-05051-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIVET
90269-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET BUTTON
90111-05034-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY, FRONT UNDER 2
2DF-2835K-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP
2DF-28349-00-00
Superseded by 2DF-28349-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#16
FOG LIGHT ASSY
2DF-85450-00-00
|
$215.99 | ||
|
Unavailable |
|||
|
#17
SCREW, TAPPING
97702-50020-00
Superseded by 90167-05078-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-054K4-00
Superseded by 90201-05556-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. SOCKET BUTTON
90111-05055-00
Superseded by 90111-05051-00
|
$2.05 | ||
|
Unavailable |
|||
|
#21
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. SOCKET BUTTON
90111-05034-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
COVER
2DF-84544-00-00
Superseded by 2DF-84544-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#24
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
SPACER
90560-06244-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
90111-05021-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER
2DF-84797-00-00
Superseded by 2DF-84797-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#28
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
SPACER
90560-06244-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. SOCKET BUTTON
90111-05021-00
|
$5.49 | ||
|
Unavailable |
|||
|
#31
BOX, 5
2DF-2838X-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET 13
2DF-2833K-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, TAPPING
97707-50516-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
FIN 1
2DF-28273-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
HINGE
2DF-2837F-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
KNOB, 1
2DF-2836X-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
DAMPER 1
3TB-28217-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-06049-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEX. SOCKET HEAD
91317-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOX
2DF-2838Y-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET 14
2DF-2833L-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, TAPPING
97707-50516-00
|
$0.75 | ||
|
Unavailable |
|||
|
#45
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#46
FIN 1
2DF-28273-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#47
HINGE
2DF-2837F-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#48
KNOB, 2
2DF-2836Y-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#50
WASHER, PLATE
90201-06049-00
|
$3.35 | ||
|
Unavailable |
|||
|
#51
BOLT, HEX. SOCKET HEAD
91317-06010-00
|
$8.49 | ||
|
Unavailable |
|||
|
#52
INNER PANEL ASSY
2DF-283D0-00-00
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
NUT, WITH WASHER
95702-08500-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#54
PANEL, INNER 3
2DF-2836M-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#57
BOLT, HEXAGON SOCKET HEAD
90110-06245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
COLLAR
90387-07717-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
SCREW, TAPPING
90167-05079-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#60
HOOK
2DF-81174-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
DAMPER 1
1UY-21638-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
BOLT, WITH WASHER
90119-06209-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
PANEL, INNER 4
2DF-2836N-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Unavailable |
|||
|
#65
BOLT, HEXAGON SOCKET HEAD
90110-06245-00
|
$7.49 | ||
|
Unavailable |
|||
|
#66
COLLAR
90387-07717-00
|
$7.49 | ||
|
Unavailable |
|||
|
#67
SCREW, TAPPING
90167-05079-00
|
$3.90 | ||
|
Unavailable |
|||
|
#68
BOX 1
2DF-2838K-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
PLATE
2DF-28276-00-00
Superseded by 2DF-28276-01-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
RIVET
90269-06019-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#71
RIVET
90269-06019-00
|
$3.00 | ||
|
Unavailable |
|||
