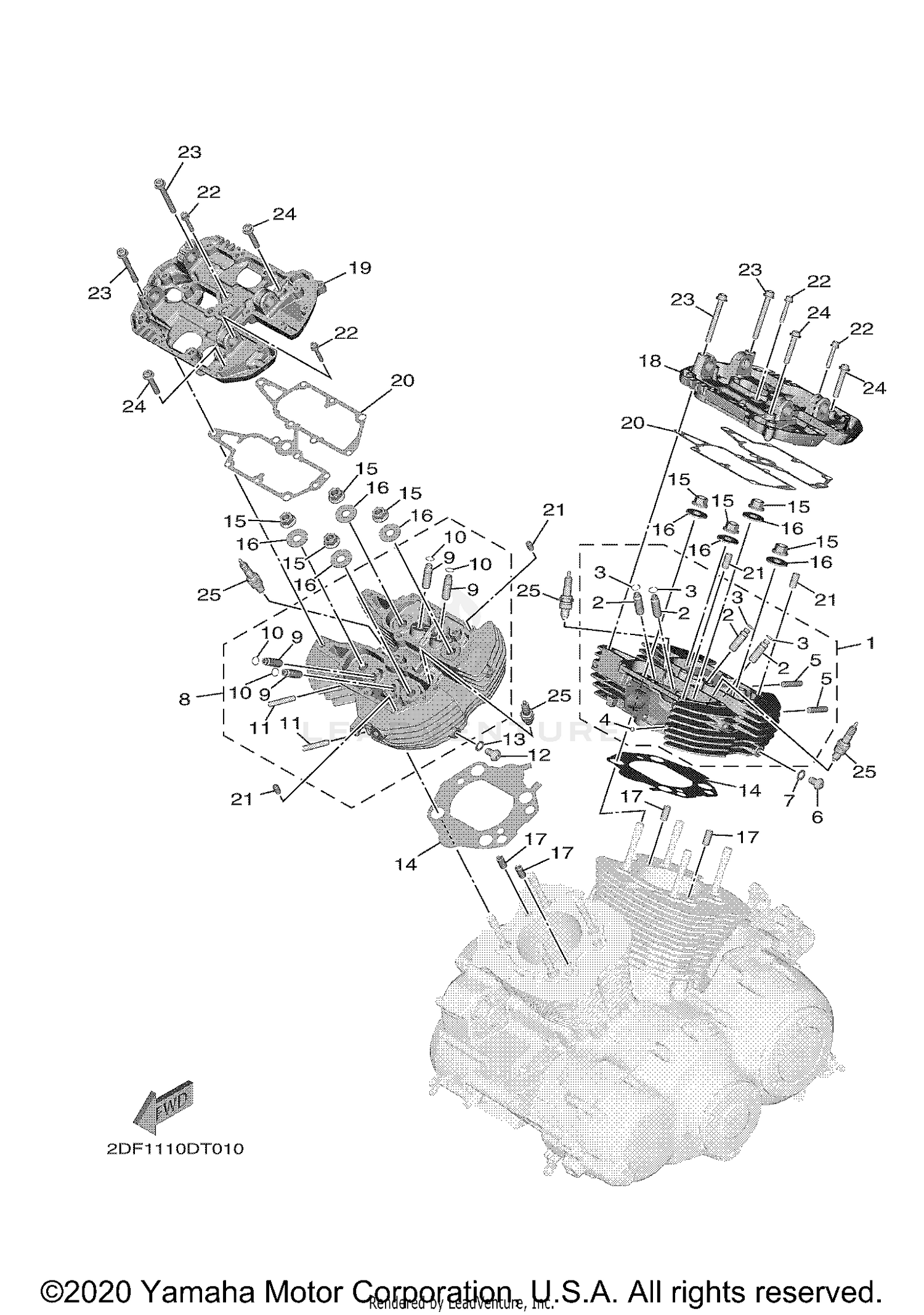

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
2DF-11101-09-00
|
$780.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
4WM-11133-10-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL
93501-04044-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
95612-08625-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX. SOCKET BUTTON
90111-10061-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-10188-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER HEAD ASSY
2DF-11101-19-00
|
$780.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, VALVE 1
4WM-11133-10-00
|
$54.99 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Unavailable |
|||
|
#11
BOLT, STUD
95612-08625-00
|
$6.49 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-10061-00
|
$1.30 | ||
|
Unavailable |
|||
|
#13
GASKET
90430-10188-00
|
$6.49 | ||
|
Unavailable |
|||
|
#14
GASKET, CYLINDER HEAD 1
2DF-11181-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-12004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-12066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-062T5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HEAD, CYLINDER 3
2DF-11131-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HEAD, CYLINDER 4
2DF-11141-00-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, CYLINDER HEAD 2
2DF-11182-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06155-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-08116-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-08115-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
DPR7EA9 NGK SPLUG
94701-00262-00
Superseded by DPR-7EA90-00-00
|
$3.49 | ||
|
Unavailable |
|||
